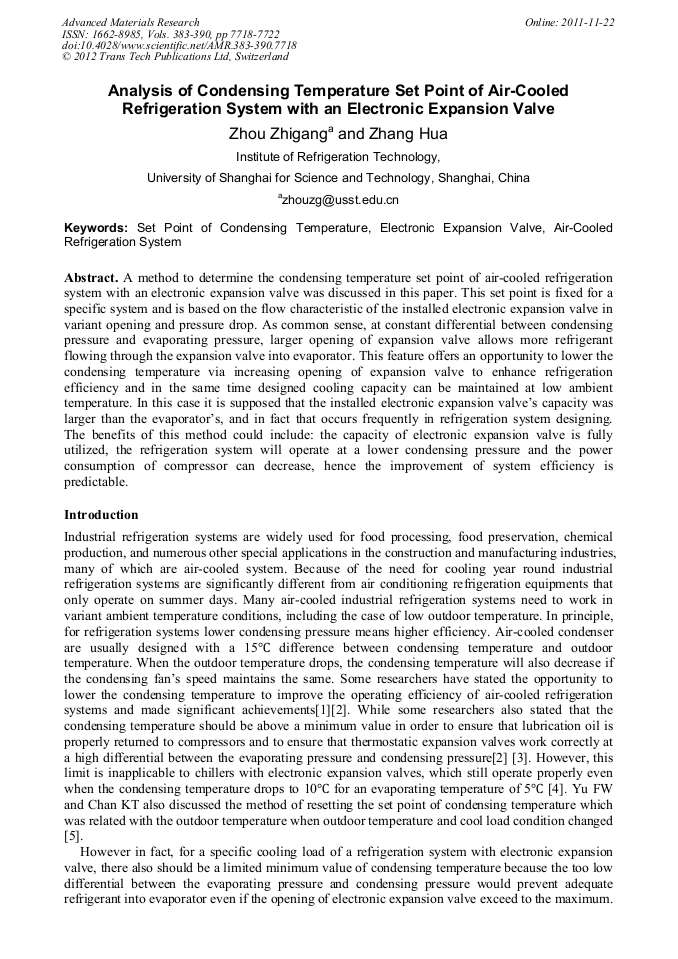

Analysis of Condensing Temperature Set Point of Air-Cooled Refrigeration System with an Electronic Expansion Valve

Abstract:

A method to determine the condensing temperature set point of air-cooled refrigeration system with an electronic expansion valve was discussed in this paper. This set point is fixed for a specific system and is based on the flow characteristic of the installed electronic expansion valve in variant opening and pressure drop. As common sense, at constant differential between condensing pressure and evaporating pressure, larger opening of expansion valve allows more refrigerant flowing through the expansion valve into evaporator. This feature offers an opportunity to lower the condensing temperature via increasing opening of expansion valve to enhance refrigeration efficiency and in the same time designed cooling capacity can be maintained at low ambient temperature. In this case it is supposed that the installed electronic expansion valve’s capacity was larger than the evaporator’s, and in fact that occurs frequently in refrigeration system designing. The benefits of this method could include: the capacity of electronic expansion valve is fully utilized, the refrigeration system will operate at a lower condensing pressure and the power consumption of compressor can decrease, hence the improvement of system efficiency is predictable.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 7718-7722
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.7718
• Online since: November 2011
• Authors: Zhi Gang Zhou, Hua Zhang
• Keywords: Air-Cooled Refrigeration System, Electronic Expansion Valve, Set Point of Condensing Temperature

References

[1] Smith M, King G., Energysaving controls for air-cooled water chillers, Building Services Journal, April 1998, p.47–48.

[2] Roper MA. Energyefficient chiller control (Technical Note TN 16/2000), Bracknell: Building Services Research and Information Association, (2000).

[3] Joudi KA, Namik HNH, Component matching of a simple vapor compression refrigeration system, Energy Conversion & Management, vol. 44, 2003, p.975–993.

DOI: 10.1016/s0196-8904(02)00060-2

[4] Yu FW, Chan KT. Condensing temperature control to enhance the efficiencyof air-cooled chillers. Building Services Engineering Research and Technology, vol. 25, April 2004, p.279–294.

DOI: 10.1191/0143624404bt095oa

[5] Yu FW, Chan KT, Advanced control of condensing temperature for enhancing the operating efficiency of air-cooled chillers, Building and Environment, vol. 40, June 2005, p.727–737.

DOI: 10.1016/j.buildenv.2004.08.017

[6] Zhou Dazhi, Brief introduction for EXV selection in chiller, Refrigeration Technology, vol. 28, no. 2, 2008, p.33–35.

[7] Fei Qian, A graphical analysis method of matching the main compressing-type refrigeration elements, Journal of Dalian Marine College, vol. 17, no. 3, Aug. 1991, p.281–287.

[8] Zhang Chuan, Ma Shanwei, Chen Jiangping, Chen Zhijiu, Experiment research on emprical model of flow coefficient of electronic expansion valve, Chinese Journal of Mechanical Enginering, vol. 41, no. 11, Nov. 2005, p.63–69.
