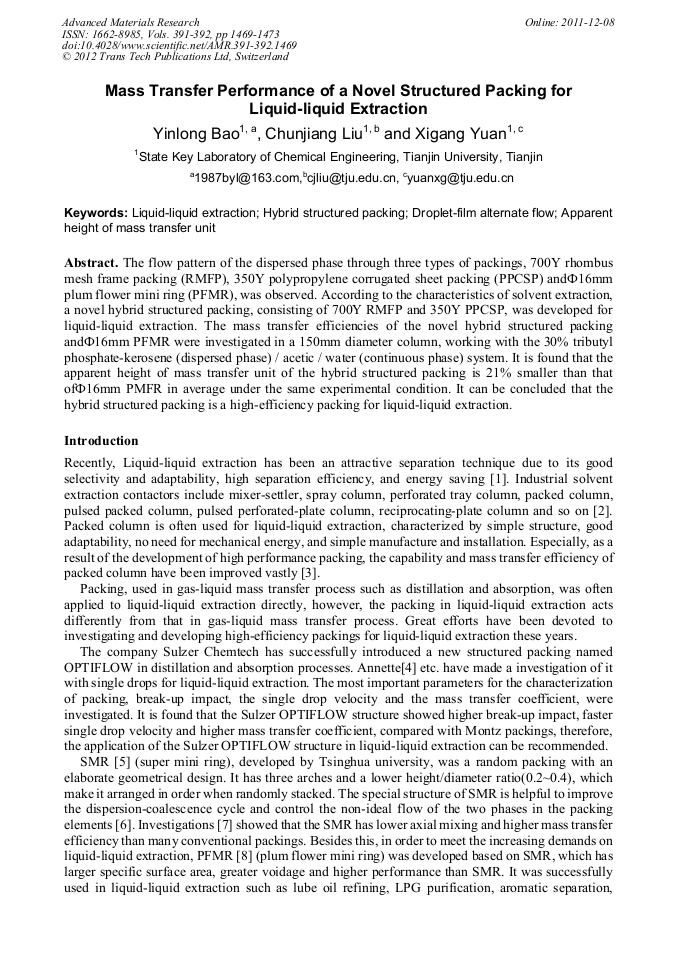

Mass Transfer Performance of a Novel Structured Packing for Liquid-Liquid Extraction

Abstract:

The flow pattern of the dispersed phase through three types of packings, 700Y rhombus mesh frame packing (RMFP), 350Y polypropylene corrugated sheet packing (PPCSP) andФ16mm plum flower mini ring (PFMR), was observed. According to the characteristics of solvent extraction, a novel hybrid structured packing, consisting of 700Y RMFP and 350Y PPCSP, was developed for liquid-liquid extraction. The mass transfer efficiencies of the novel hybrid structured packing andФ16mm PFMR were investigated in a 150mm diameter column, working with the 30% tributyl phosphate-kerosene (dispersed phase) / acetic / water (continuous phase) system. It is found that the apparent height of mass transfer unit of the hybrid structured packing is 21% smaller than that ofФ16mm PMFR in average under the same experimental condition. It can be concluded that the hybrid structured packing is a high-efficiency packing for liquid-liquid extraction.

You might also be interested in these eBooks

Chemical Engineering and Material Properties

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 391-392)

Pages:

1469-1473

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.391-392.1469

Citation:

Cite this paper

Online since:

December 2011

Authors:

Yin Long Bao, Chun Jiang Liu, Xi Gang Yuan

Keywords:

Apparent Height of Mass Transfer Unit, Droplet-Film Alternate Flow, Hybrid Structured Packing, Liquid-Liquid Extraction

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] W.L. McCabe, J.C. Smith and P. Harriott: Unit Operations of Chemical Engineering (6th ed): (McGraw-Hill, New York 2001).

Google Scholar

[2] G. S. Laddha, T. E. Degaleesan: Transport phenomena in liquid extraction: (McGraw-Hill, New York c1978).

Google Scholar

[3] S. Y. Wang: Technological guide of the Modern Packing Tower: (China Petro-Chemical Publishing House, Beijing 1998).

Google Scholar

[4] A. Eckstein, J. Koch, A. Vogelpohl and F. Käser: Chem. Eng. Technol, Vol. 22(1999), pp.909-912.

Google Scholar

[5] W.Y. Fei, X.M. Wen, S.H. Fang, B.Q. Zhang, CN Patent 1052435A (1991).

Google Scholar

[6] J. Yu, W.Y. Fei: The Canadian Journal of Chemical Engineering, Vol. 78(2000), pp.1040-1045.

Google Scholar

[7] W.Y. Fei, X.M. Wen, S.H. Fang and H. Mao: Proc. Internl. Solvent Extraction Conf. Elsevier Applied Science, London, UK (1993), pp.49-56.

Google Scholar

[8] W.Y. Fei, CN Patent 95117866. 0(1995).

Google Scholar

[9] W.Y. Fei, L.Y. Sun and Q.F. Guo, Chinese J. Chem. Eng., Vol. 10(6)(2002), pp.631-634.

Google Scholar

[10] S.M. Wu, X.Q. Hu and C.J. Liu, Chemical Engineering (China), Vol. 38(11)(2010), pp.14-17.

Google Scholar
