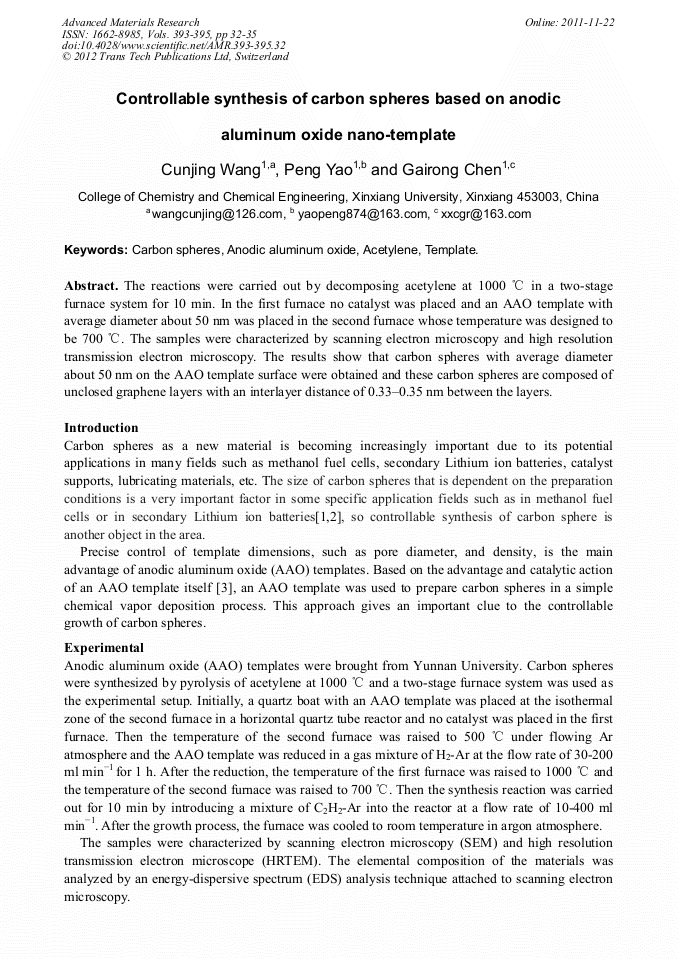

Controllable Synthesis of Carbon Spheres Based on Anodic Aluminum Oxide Nano-Template

Abstract:

The reactions were carried out by decomposing acetylene at 1000 °C in a two-stage furnace system for 10 min. In the first furnace no catalyst was placed and an AAO template with average diameter about 50 nm was placed in the second furnace whose temperature was designed to be 700 °C. The samples were characterized by scanning electron microscopy and high resolution transmission electron microscopy. The results show that carbon spheres with average diameter about 50 nm on the AAO template surface were obtained and these carbon spheres are composed of unclosed graphene layers with an interlayer distance of 0.33–0.35 nm between the layers.

• Periodical: Advanced Materials Research (Volumes 393-395)
• Pages: 32-35
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.393-395.32
• Online since: November 2011
• Authors: Cun Jing Wang, Peng Yao, Gai Rong Chen
• Keywords: Acetylene, Anodic Aluminum Oxide (AAO), Carbon Spheres, Template

References

[1] Y.C. Liu, X.P. Qiu, Huang Y-Q et al. Carbon Vol. 40 (2002), p.2375－2380.

[2] M, Umeda, K, Dokko, Y, Fujita et al. Electrochim. Acta Vol. 47(2002), p.885—890.

[3] S.H. Jeong, H.Y. Hwang, S.K. Hwang et al . Carbon Vol. 42(2003), p.2073－(2080).

[4] M. Sharon, K. Mukhopadhyay, K. Yase et al. Carbon Vol. 36 (2003), p.41－47.

[5] V.G. Pol, Pol S V, Jose M et al. Carbon Vol. 44 (2006), p.3285－3292.

[6] H S Qian, F M Han, B Zhang et al. Carbon Vol. 42(2006), p.761－766.
