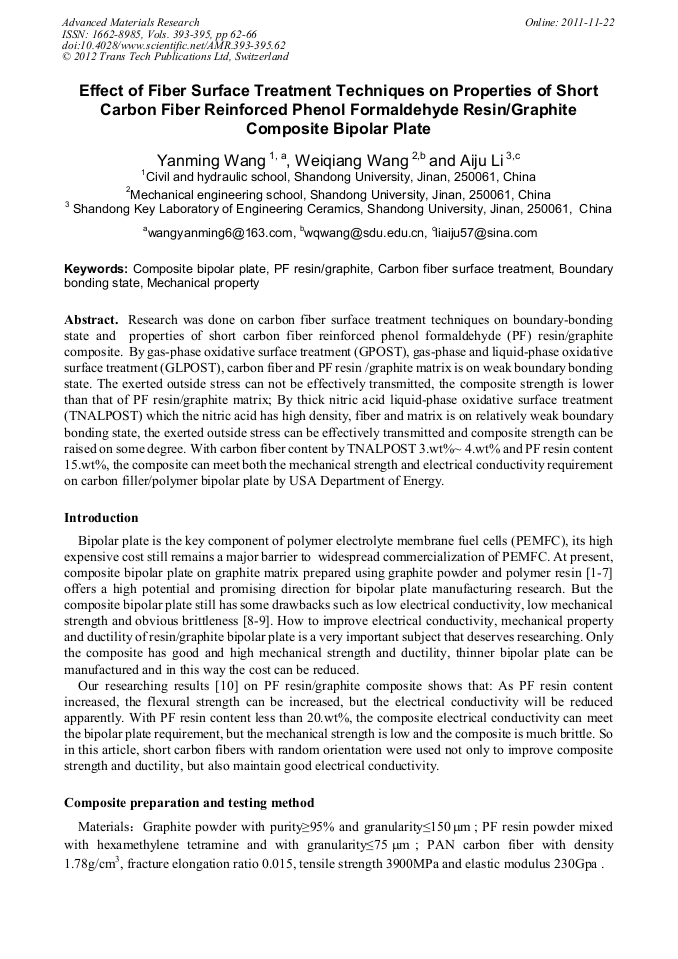

Effect of Fiber Surface Treatment Techniques on Properties of Short Carbon Fiber Reinforced Phenol Formaldehyde Resin/Graphite Composite Bipolar Plate

Abstract:

Research was done on carbon fiber surface treatment techniques on boundary-bonding state and properties of short carbon fiber reinforced phenol formaldehyde (PF) resin/graphite composite. By gas-phase oxidative surface treatment (GPOST)、gas-phase and liquid-phase oxidative surface treatment (GLPOST), carbon fiber and PF resin /graphite matrix is on weak boundary bonding state. The exerted outside stress can not be effectively transmitted, the composite strength is lower than that of PF resin/graphite matrix; By thick nitric acid liquid-phase oxidative surface treatment (TNALPOST) which the nitric acid has high density, fiber and matrix is on relatively weak boundary bonding state, the exerted outside stress can be effectively transmitted and composite strength can be raised on some degree. With carbon fiber content by TNALPOST 3.wt%~ 4.wt% and PF resin content 15.wt%, the composite can meet both the mechanical strength and electrical conductivity requirement on carbon filler/polymer bipolar plate by USA Department of Energy.

• Periodical: Advanced Materials Research (Volumes 393-395)
• Pages: 62-66
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.393-395.62
• Online since: November 2011
• Authors: Yan Ming Wang, Wei Qiang Wang, Ai Ju Li
• Keywords: Boundary Bonding State, Carbon Fiber Surface Treatment, Composite Bipolar Plate, PF Resin/Graphite

References

[1] C. DEL. RI/O, M.C. OJEDA: Journal of Applied Polymer Science, Vol. 83(2002), pp.2817-2822.

[2] FREJ MIGHRI, MICHEL A. HUNEAULT: Polymer Engineering and Science, Vol. 44(2004), pp.1755-1765.

[3] Man Wu, Leon L. Shaw: J. Power Sources , Vol. 136(2004), pp.37-44.

[4] Kurt I, Butler, Kingsville. U.S. Patent20030042468AI.

[5] Richard Blunk, Mahmoud Hassan Abd Elhamid , Daniel Lisi, et al: J. Power Sources, Vol. 156(2006), pp.151-157.

DOI: 10.1016/j.jpowsour.2005.04.041

[6] A. M¨uller, P. Kauranen, A. von Ganski, et al: J. Power Sources, Vol. 154(2006), pp.467-471.

[7] E.A. Cho, U. -S. Jeon, H.Y. Ha, et al: J. Power Sources, Vol. 125(2004), pp.178-182.

[8] M.H. OH, Y.S. YOON, S.G. Park: Electrochemical Acta, Vol. 50(2004), pp.777-780.

[9] A. Heinzel, F. Mahlendorf: J. Power Sources , Vol. 131(2004), pp.35-40.

[10] Wang Yanming, Wang Weiqiang, Li Aiju, etal: Journal of mechanics engineering material, Vol. 30（2006）, pp.34-36(in Chinese).
