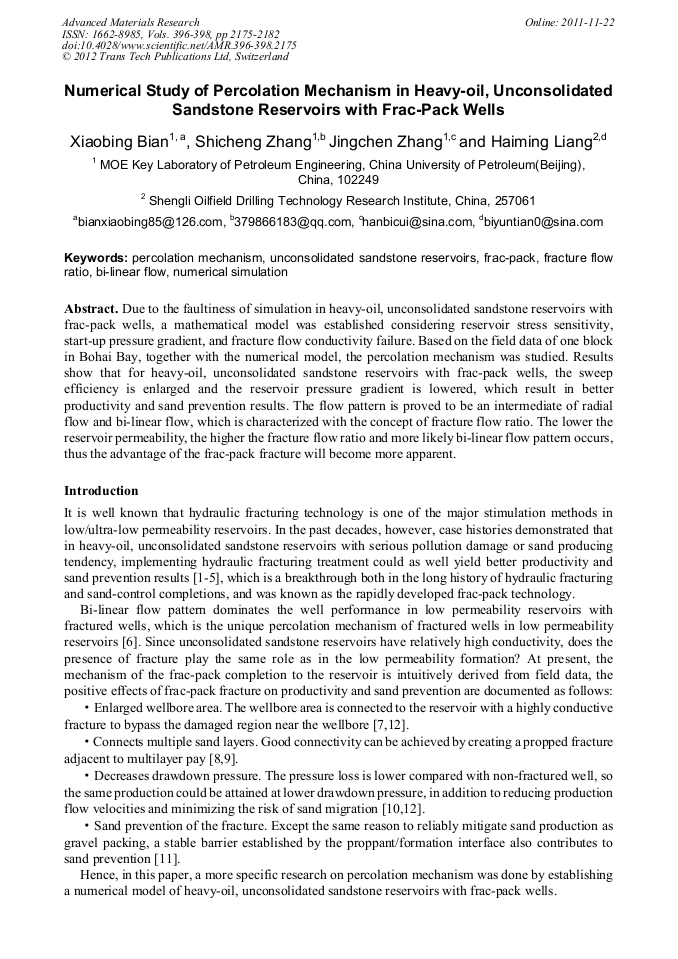

Numerical Study of Percolation Mechanism in Heavy-Oil, Unconsolidated Sandstone Reservoirs with Frac-Pack Wells

Abstract:

Due to the faultiness of simulation in heavy-oil, unconsolidated sandstone reservoirs with frac-pack wells, a mathematical model was established considering reservoir stress sensitivity, start-up pressure gradient, and fracture flow conductivity failure. Based on the field data of one block in Bohai Bay, together with the numerical model, the percolation mechanism was studied. Results show that for heavy-oil, unconsolidated sandstone reservoirs with frac-pack wells, the sweep efficiency is enlarged and the reservoir pressure gradient is lowered, which result in better productivity and sand prevention results. The flow pattern is proved to be an intermediate of radial flow and bi-linear flow, which is characterized with the concept of fracture flow ratio. The lower the reservoir permeability, the higher the fracture flow ratio and more likely bi-linear flow pattern occurs, thus the advantage of the frac-pack fracture will become more apparent.

• Periodical: Advanced Materials Research (Volumes 396-398)
• Pages: 2175-2182
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.396-398.2175
• Online since: November 2011
• Authors: Xiao Bing Bian, Shi Cheng Zhang, Jing Chen Zhang, Hai Ming Liang
• Keywords: Bi-Linear Flow, Frac-Pack, Fracture Flow Ratio, Numerical Simulation, Percolation Mechanism, Unconsolidated Sandstone Reservoirs

References

[1] B.W. Hainey and J.C. Troncoso, Frac-Pack: SPE 23777(1992).

[2] L.P. Roodhart, P.A. Fokker and D.R. Davies: SPE 26563(1994).

[3] B.A. Onasanya, R.J. Tibbles and J.H. Moran: SPE 31142(1996).

[4] Britt, L.K., Smith M.B. and Waters,F.: SPE 63105(2000).

[5] Harold Vickery, Brad Baker and Randy Scott: SPE 90173(2004).

[6] Cinco-Ley and Samaniego V. F.: SPE 7490(1981).

[7] R.L. Kirby and S.W. Asbill: SPE 30467(1995).

[8] Sunil N. Gulrajani, Raymond J.Tibbles and Kenneth G. Nolte: SPE 38192(1997).

[9] R.C. Ellis, A Technical Revolution(Evolution) Process, JPT(1998).

[10] Y. Fan, B.D. Marple and P.P. Valkó: SPE 63107(2000).

[11] Liangyue Liu, Jianming Deng and Yingwen Ma: SPE 103779(2006).

[12] Mezlul Arfie, Maharon Jadid and Alfred Azer: SPE 107681(2007).

[13] Shicheng Zhang amd Jin Zhang: Fracturing Development Theory and Application (Beijing: Petroleum Industry Press, China 2003), in Chinese.

[14] A. T. Gorunov: Abnormal Oil-Field Development (Beijing: Petroleum Industry Press, China 1987), in Chinese.

[15] Bozhi Wu: Efficient Development Theory and Application of The Low Permeability Reservoir (Beijing: Petroleum Industry Press, China 2009), in Chinese.

[16] Qingzhi Wen and Shicheng Zhang: Journal of the University of Petroleum, China. Forum Vol. 29 (2005), p.57, in Chinese.

[17] Gang Niu, Tiyao Zhou and Xiusheng Li: Drilling & Production Technology, Forum Vol. 33 (2010), p.57, in Chinese.

[18] Jianguo Zhang: Numerical Simulation on Production Forecast of Well by Tip Screen Out Fracturing: China University of Petroleum in partial fulfillment of the requirement for the degree of Master of Engineering(2007) , in Chinese.
