Effect of Controlled Rolling on Mechanical Property and Microstructure of Nb Microalloyed H Beam

Min Zhu; An Chao Ren; Yu Ji

doi:10.4028/www.scientific.net/AMR.399-401.1654

Paper Titles

Influence of Cutting Parameters on Surface Characteristics for Milling Powder Metallurgy Nickel-Based Superalloy
p.1635

Print Parameters Influence on Parts' Quality and Calibration with 3DP-Part I: Print Parameters Influence on Parts’ Surface Topography
p.1639

Research on Process Optimization of Thin-Wall Plastics Injection Based on Moldflow and Orthogonal Experiment
p.1646

A Study on Forming Process of Chips during Cutting Cast Iron
p.1650

Effect of Controlled Rolling on Mechanical Property and Microstructure of Nb Microalloyed H Beam
p.1654

Finite Element Simulations of Working Characteristics of Solid Expandable Tubular Threaded Joint
p.1658

Application of Software DYNAFORM to the Tube Forming Process with Multi-Stages
p.1663

Electrode Material Effect on Electrical Discharge Machining PcBN Cutting Tool Processing
p.1667

Multi-Objective Optimization by Gaussian Genetic Algorithm and its Application in Injection Modeling
p.1672

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 399-401Effect of Controlled Rolling on Mechanical...

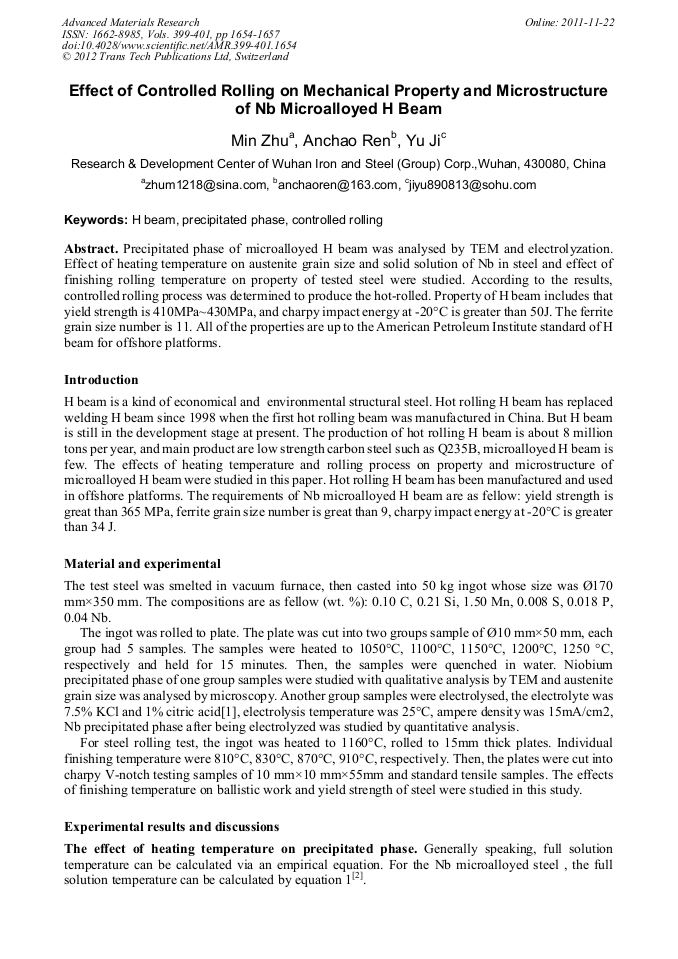

Effect of Controlled Rolling on Mechanical Property and Microstructure of Nb Microalloyed H Beam

Abstract:

Precipitated phase of microalloyed H beam was analysed by TEM and electrolyzation. Effect of heating temperature on austenite grain size and solid solution of Nb in steel and effect of finishing rolling temperature on property of tested steel were studied. According to the results, controlled rolling process was determined to produce the hot-rolled. Property of H beam includes that yield strength is 410MPa~430MPa, and charpy impact energy at -20°C is greater than 50J. The ferrite grain size number is 11. All of the properties are up to the American Petroleum Institute standard of H beam for offshore platforms.
