Repeated Impact Resistance of Cr-Mo Surface Alloying Layers on Ti6Al4V Alloy

Abstract:

Cr-Mo surface alloying modified layers on Ti6Al4V alloy were prepared using double glow discharge plasma alloying technique. The surface hardness and the resistance ability of repeated impact of the layers were measured using Knoop hardness test and repeated impact test respectively. The results show that the surface hardness of the modified samples was significantly improved due to the deposited layer containing Cr_1.93Ti_1.07, Cr₂Ti, FeCrMo, and Cr₂Ti₄O₁₁ compounds. However, it was found that heavy peeling occurred on the Cr-Mo alloying modified layers after repeated impact test due to these brittle phases formed in plasma alloying process. Brittle phases appeared in the surface modified layer, such as intermetallic compounds, contribute to hardness enhancement and wear properties, but may be detrimental to impact resistance.

You might also be interested in these eBooks

New Materials, Applications and Processes

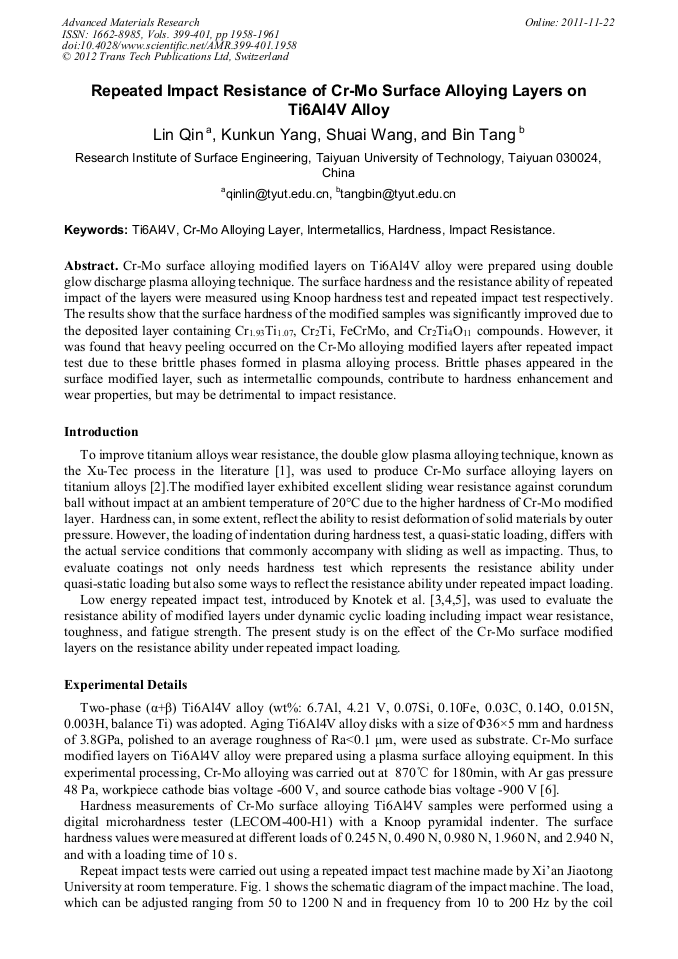

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 399-401)

Pages:

1958-1961

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.399-401.1958

Citation:

Cite this paper

Online since:

November 2011

Authors:

Lin Qin, Kun Kun Yang, Shuai Wang, Bin Tang

Keywords:

Cr-Mo Alloying Layer, Hardness, Impact Resistance, Intermetallic, Ti6Al4V

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Zhong Xu, B.H. Fang, W.N. Zheng, C.Z. Wang, B. Tang, Surf. Coat. Technol. Vol.43-44(1990), pp.1065-1073.

Google Scholar

[2] Qin Lin, Li Zhe, Ma Lianjun, Tian Linhai, Liu Daoxin and Tang Bin: Rare Metal Mat. Eng. Vol.38(2009), pp.2226-2229. (In Chinese)

Google Scholar

[3] O. Knotek, B. Bosserhoff, A. Schrey, T. Leyendecker, O. Lemmer, S. Esser, Surf. Coat. Technol. Vol.54-55(1992), pp.102-107.

DOI: 10.1016/s0257-8972(09)90035-4

Google Scholar

[4] A. Leyland, A. Matthews, Wear, Vol.246 (2000), pp.1-11.

Google Scholar

[5] E. Lugscheider, O. Knotek, C. Wolff and S. Barwulf, Surf. Coat. Technol. Vol. 116-119 (1999), pp.141-146.

Google Scholar

[6] Qin Lin, Li Zhe, Ma Lianjun, Tian Linhai, Liu Daoxin and Tang Bin: Rare Metal Mat. Eng. Vol.38(2009), pp.2226-2229. (In Chinese)

Google Scholar

[7] Erdem Atar, E. Sabri Kayali, Huseyin Cimenoglu, Surf. Coat. Technol. Vol.202 (2008), pp.4583-4590.

Google Scholar

[8] W.C. Oliver, G.M. Pharr, J. Mater. Res. Vol.7 (1992), pp.1564-1580.

Google Scholar

[9] E. Atar, H. Çimeno lu, E. S. Kayalı, Surf. Coat. Technol. Vol.162 (2003), pp.167-173.

Google Scholar

[10] J. C. A. Batista, C. Godoy, A. Matthews, Surf. Coat. Technol. Vol.163-164 (2003), pp.353-361.

Google Scholar

[11] A. Vyas, Y.H. Lu, Y.G. Shen, Surf. Coat. Technol. Vol.204 (2009), pp.1528-1534.

Google Scholar
