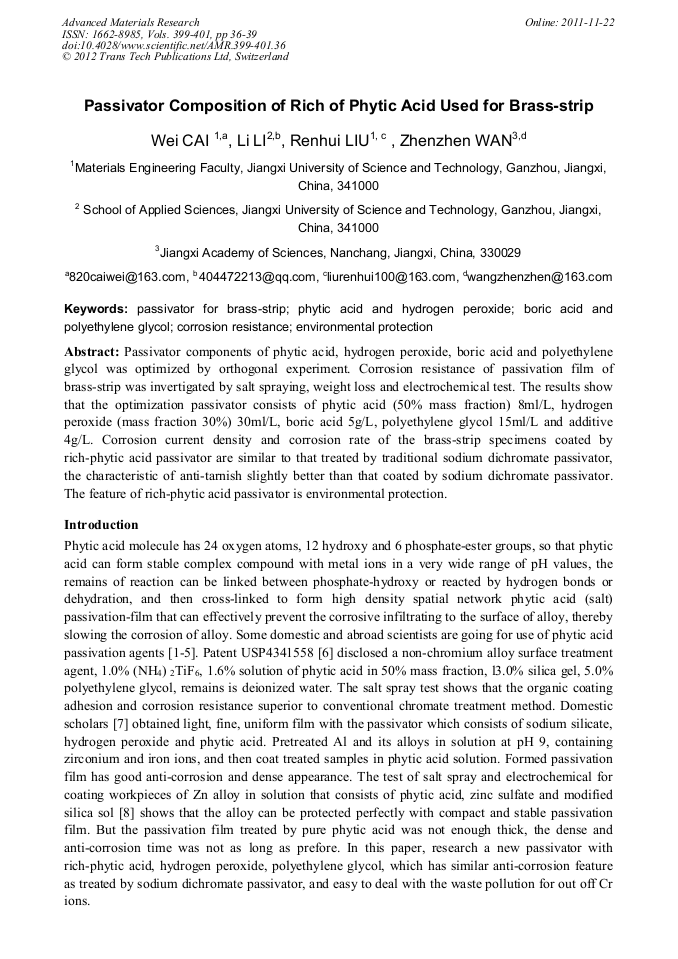

Passivator Composition of Rich of Phytic Acid Used for Brass-Strip

Abstract:

Passivator components of phytic acid, hydrogen peroxide, boric acid and polyethylene glycol was optimized by orthogonal experiment. Corrosion resistance of passivation film of brass-strip was invertigated by salt spraying, weight loss and electrochemical test. The results show that the optimization passivator consists of phytic acid (50% mass fraction) 8ml/L, hydrogen peroxide (mass fraction 30%) 30ml/L, boric acid 5g/L, polyethylene glycol 15ml/L and additive 4g/L. Corrosion current density and corrosion rate of the brass-strip specimens coated by rich-phytic acid passivator are similar to that treated by traditional sodium dichromate passivator, the characteristic of anti-tarnish slightly better than that coated by sodium dichromate passivator. The feature of rich-phytic acid passivator is environmental protection.

• Periodical: Advanced Materials Research (Volumes 399-401)
• Pages: 36-39
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.399-401.36
• Online since: November 2011
• Authors: Wei Cai, Li Li, Ren Hui Liu, Zhen Zhen Wan
• Keywords: Boric Acid, Corrosion Resistance, Environmental Protection, Hydrogen Peroxide, Passivator for Brass-Strip, Phytic Acid, Polyethylene Glycol (PEG)

References

[1] WANG Qiang, SHI Wei-zhen, LI Xiao-guang. Corrosion Inhibition of 16 Mn Steel by Phytic Acid Salt [J]. Materials Protection,2007,40(2):20-22.

[2] LIU Jian-rui, Guo Yi-na, HUANG Wei-dong. Study on the Corrosion Resistance of Phytic Acid Conversion Coating for Magnesium Alloys [J]. Surface & Coatings Technology,2006,201:536- 541.

DOI: 10.1016/j.surfcoat.2006.02.020

[3] CUI Xiu-fang, LI Qing-fen. Formation Mechanism and Corrosion Resistance of Phytic Acid Conversion Coatings [J]. Corrosion Science and Protection Technology,2007,19(3):203-206.

[4] CUI Xiu-fang, LI Qing-fen. Influence of pH on Phytic Acid Conversion Coating on Magnesium Alloy [J]. Corrosion Science and Protection Technology,2007,19(4):275-277.

[5] ZHOU He-ping. Application of Phytic Acid in Metal Surface Treatment [J]. Electroplating and Pollution Control,2003,23 (2) :23-25.

[6] Yashiro Kuniji, Yoshio Moriya. Metal Surface Coating Agent [P]. USP:4341558,1982-07-27.

[7] ZHANG Hong-sheng, YANG Xiao-lei, CHEN Xi. New Application of Phytic Acid in Metal Protection [J]. Electroplating and Finishing, 2001,20(4):18-22.

[8] HU Hui-li, LI Ning, CHENG Jin-ning. A Research on the Corrosion Resistance of Phytic Acid Passivating Coatings for Galvanized Parts [J].Electroplating and Pollution Control, 2005, 25(6): 21-25.

[9] YUE Li-jie, WANG Long-mei, PIAO Xiu-yu, etal. Electrochemical Characteristics of Rust Layer on 10PCuRE Weathering Steel [J]. Chinese Rare Earths,2005,26(5):56-60.
