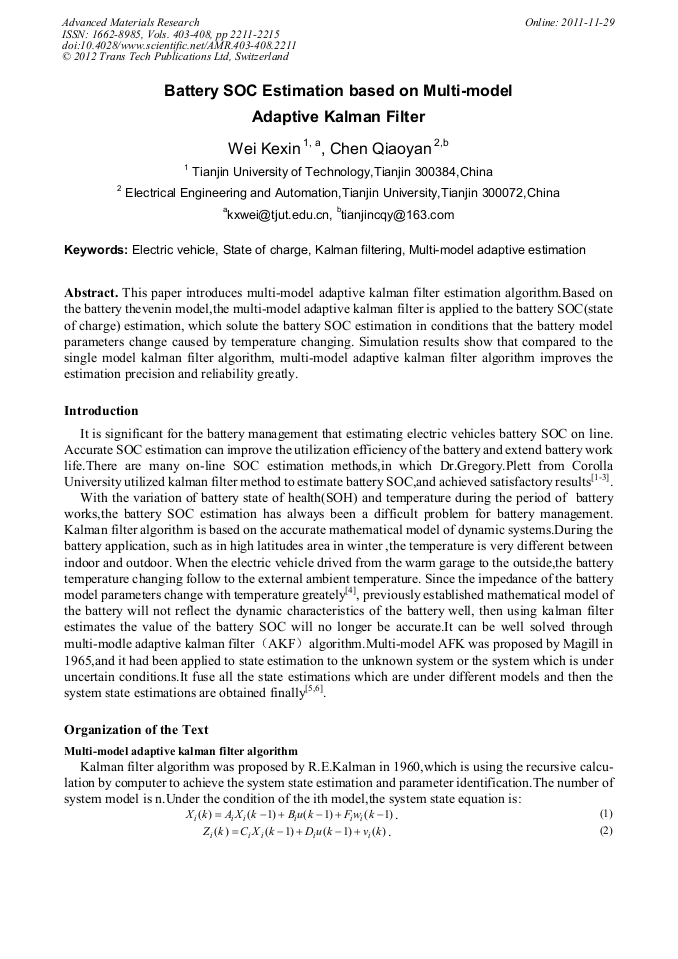

Battery SOC Estimation Based on Multi-Model Adaptive Kalman Filter

Abstract:

This paper introduces multi-model adaptive kalman filter estimation algorithm.Based on the battery thevenin model,the multi-model adaptive kalman filter is applied to the battery SOC(state of charge) estimation, which solute the battery SOC estimation in conditions that the battery model parameters change caused by temperature changing. Simulation results show that compared to the single model kalman filter algorithm, Multi-Model adaptive kalman filter algorithm improves the estimation precision and reliability greatly.

• Periodical: Advanced Materials Research (Volumes 403-408)
• Pages: 2211-2215
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.403-408.2211
• Online since: November 2011
• Authors: Ke Xin Wei, Qiao Yan Chen
• Keywords: Electric Vehicle (EV), Kalman Filter (KF), Multi-Model Adaptive Estimation, State of Charge (SOC)

References

[1] Gregory L. Plett, Extended kalman filtering for battery management systems of LiPB-based HEV battery packs, Part 1, Background, Journal of Power Sources . 134 (2004) 252–261.

DOI: 10.1016/j.jpowsour.2004.02.031

[2] Gregory L. Plett, Extended kalman filtering for battery management systems of LiPB-based HEV battery packs, Part 2, Modeling and identification, Journal of Power Sources . 134 (2004) 262–276.

DOI: 10.1016/j.jpowsour.2004.02.032

[3] Gregory L. Plett, Extended kalman filtering for battery management systems of LiPB-based HEV battery packs, Part 3, State and parameter estimation, Journal of Power Sources. 134 (2004) 277–292.

DOI: 10.1016/j.jpowsour.2004.02.033

[4] Jürgen Remmlingera, Michael Buchholza, Markus Meilerb, Peter Bernreuterb, Klaus Dietmayer, State-of-health monitoring of lithium-ion batteries in electric vehicles by on-board internal resistance estimation, Journal of Power Sources. 196 (2011).

DOI: 10.1016/j.jpowsour.2010.08.035

[5] Magill D.T. Optimal Adaptive Estimation of Sampled Stochastic Processes. IEEE Trans. AC , 1965 , 10 (5) : 434～439.

DOI: 10.1109/tac.1965.1098191

[6] P.G. Clem, M. Rodriguez, J.A. Voigt and C.S. Ashley, U.S. Patent 6, 231, 666. (2001).

[6] Song Hong Truong. A robust and self-stunning kalman filter for autonomous spacecraft navigation [D]. Degree of doctor of Washington University, (2001).

[7] Salameh Z M, Casacca M A, Lynch WA. A Mathematical Model for Lead-Acid Batteries, IEEE Transactions on Energy Conversions, Vol. 7, No. 1, March (1992).

DOI: 10.1109/60.124547

[8] Xia Chaoying, Zhang Shu, Sun Hongtao. A strategy of estimating state of charge based on extended kalman filter. Chinese Journal of Power Sources, 2007. 5 Vol. 31 N o. 5: 414-417.

[9] Chen Guanrong, Wang Jianorng. Interval Klaman filtering[J]. IEEE transaction on aerospace and electronics system, 1997, (1).

[10] Li Yanhua , Fang Jiancheng. A Multi2model Adaptive Federated Filter and It's Application in INS/ CNS/ GPS Integrated Navigation System. Aerospace Control, no. 2: 33-38.
