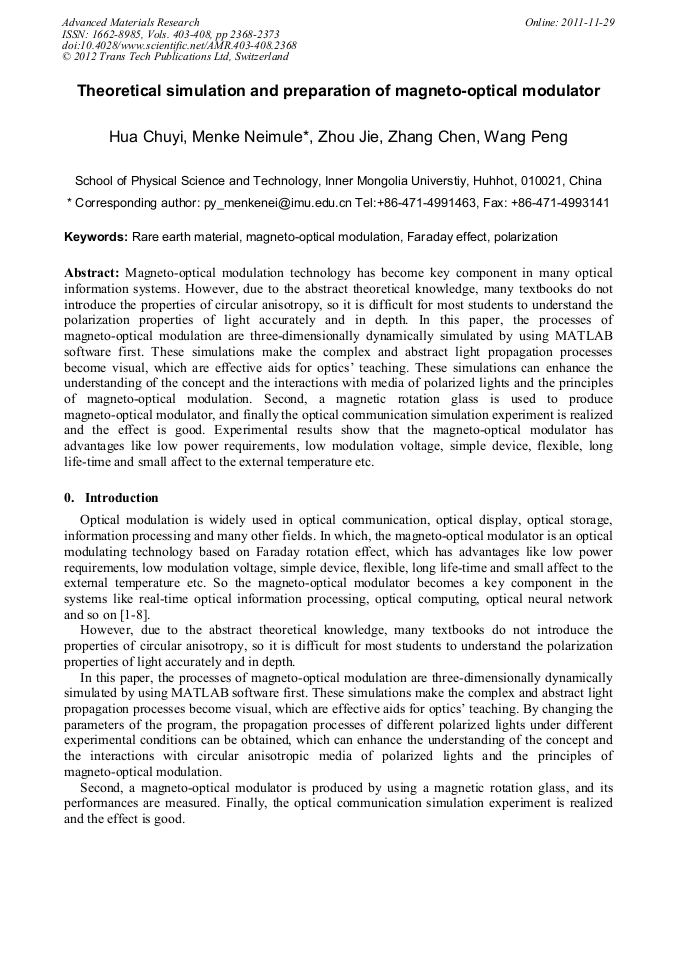

Theoretical Simulation and Preparation of Magneto-Optical Modulator

Abstract:

Magneto-Optical modulation technology has become key component in many optical information systems. However, due to the abstract theoretical knowledge, many textbooks do not introduce the properties of circular anisotropy, so it is difficult for most students to understand the polarization properties of light accurately and in depth. In this paper, the processes of Magneto-Optical modulation are Three-Dimensionally dynamically simulated by using MATLAB software first. These simulations make the complex and abstract light propagation processes become visual, which are effective aids for optics’ teaching. These simulations can enhance the understanding of the concept and the interactions with media of polarized lights and the principles of Magneto-Optical modulation. Second, a magnetic rotation glass is used to produce Magneto-Optical modulator, and finally the optical communication simulation experiment is realized and the effect is good. Experimental results show that the magneto-optical modulator has advantages like low power requirements, low modulation voltage, simple device, flexible, long life-time and small affect to the external temperature etc.

• Periodical: Advanced Materials Research (Volumes 403-408)
• Pages: 2368-2373
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.403-408.2368
• Online since: November 2011
• Authors: Chu Yi Hua, Menke Neimule, Jie Zhou, Chen Zhang, Peng Wang
• Keywords: Faraday Effect, Magneto-Optical Modulation, Polarization, Rare Earth Material

References

[1] http://en.wikipedia.org/wiki/Faraday_effect

[2] R L Heredero, Ramón Fernández de Caleya, héctor, Guerrero, Pere Lo s Santo s, M ari Cruz, Jaume Es2teve. Micromachined optical fiber current sensor[J ]. Applied Optics, 1999, 38 (25): 5298-5305

DOI: 10.1364/ao.38.005298

[3] Gao Jingwu, Zhao Fenghua,Bai Xuefeng. The Applications of magnetic rotation effect in measuring the impulse current [J]. Computer information of calculation, 2005, 25 (12) : 108-109 (in Chinese)

[4] Huang Hai, Bu Shengli. Research of magnetic rotation effect of optic glass. Applied Optics, 2004, 25 (4): 14-17(in Chinese)

[5] Zhou Beiming, Wang Biao, Mao Hanfen, etc. TG28 Faraday Rotator Glass [J].Chinese Journal of Laser 1996, 23 (9) : 857 (in Chinese)

[6] Ballato J,Snitzer E. Fabrication of fibers with high rare earth concentrations for faraday isolator application [J].Appl.Opt.,1995, 34: 6848.

DOI: 10.1364/ao.34.006848

[7] Tan C Z, Arndt J. Faraday effect in TiO2-SiO2 glasses [J].J.Non-Cryst. Solids,1997,222:391

DOI: 10.1016/s0022-3093(97)90141-1

[8] Zabluda V, Pozeluyko A, Edelman I, et al. Concentration dependence of the faraday rotation in the Pr containing oxide glasses [J]. J. Magnetism and Magnetic Mater.,1998,185:207.

DOI: 10.1016/s0304-8853(97)01169-4
