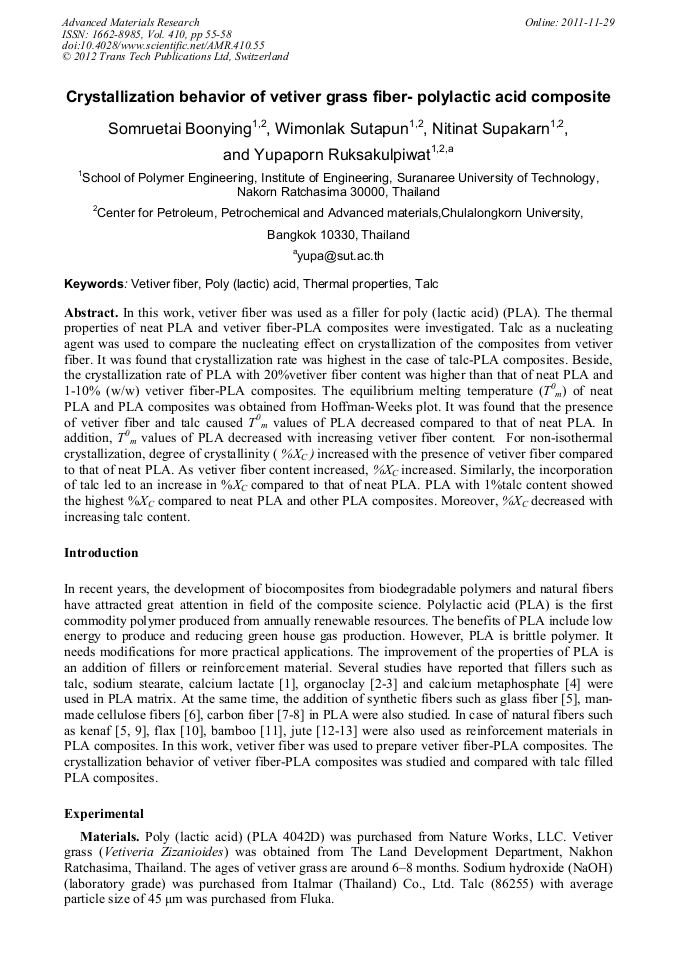

Crystallization Behavior of Vetiver Grass Fiber-Polylactic Acid Composite

Abstract:

this work, vetiver fiber was used as a filler for poly (lactic acid) (PLA). The thermal properties of neat PLA and vetiver fiber-PLA composites were investigated. Talc as a nucleating agent was used to compare the nucleating effect on crystallization of the composites from vetiver fiber. It was found that crystallization rate was highest in the case of talc-PLA composites. Beside, the crystallization rate of PLA with 20%vetiver fiber content was higher than that of neat PLA and 1-10% (w/w) vetiver fiber-PLA composites. The equilibrium melting temperature (T⁰_m) of neat PLA and PLA composites was obtained from Hoffman-Weeks plot. It was found that the presence of vetiver fiber and talc caused T⁰_m values of PLA decreased compared to that of neat PLA. In addition, T⁰_m values of PLA decreased with increasing vetiver fiber content. For non-isothermal crystallization, degree of crystallinity ( %X_C ) increased with the presence of vetiver fiber compared to that of neat PLA. As vetiver fiber content increased, %X_C increased. Similarly, the incorporation of talc led to an increase in %X_C compared to that of neat PLA. PLA with 1%talc content showed the highest %X_C compared to neat PLA and other PLA composites. Moreover, %X_C decreased with increasing talc content.

• Periodical: Advanced Materials Research (Volume 410)
• Pages: 55-58
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.410.55
• Online since: November 2011
• Authors: Somruetai Boonying, Wimonlak Sutapun, Nitinat Suppakarn, Yupaporn Ruksakulpiwat
• Keywords: Poly(lactic acid) (PLA), Talc, Thermal Property, Vetiver Fiber

References

[1] Li, H., and Huneault, M. A. (2007). Polymer. 48: 6855-6866.

[2] Day, M., Victoria, A., Nawaby, and Liao, X. (2006). J. Therm. Anal. Calorim. 86: 623-629.

[3] Krikorian, V., and Pochan, D. J. (2004). Macromolecules. 37: 6480-6491.

[4] Junga, Y., Kim, S. -S., Kim, Y., Kim, S. H., Byung, S. K., Kim, Y. S., YongChoi, C., and Kim, S. H. (2005). Biomaterials. 26: 6314-6322.

[5] Huda, M. S., Drzal, L. T., Mohanty, A. K., and Misra, M. (2008). Compos. Sci. Technol. 68: 424-432.

[6] Ganster, J., Fink, H. -P., and Pinnow, M. (2006). Compos. Part A. 37: 1796-1804.

[7] Kuana, C. -F., Kuana, H. -C., M. Mab, C. -C., and Chen, C. -H. (2008). J. Phys. Chem. Solids. 69: 1395-1398.

[8] Tsuji, H., Kawashima, Y., Takikawa, H., and Tanaka, S. (2007). Polymer. 48: 4213-4225.

[9] Nishino, T., Hirao, K., and Kotera, M. (2006). Compos. Part A. 37: 2269-2273.

[10] Wong, S., Shanks, R. A., and Hodzic, A. (2007). Compos. Sci. Technol. 67: 2478-2484.

[11] Lee, S. -H., and Wang, S. (2006). Compos. Part A. 37: 80-91.

[12] Hu, R. -H., Lim, J. -K., Kim, C. -I., and Yoon, H. -C. (2007). Eng. Mater. 353-358: 1302-1305.

[13] Khondker, O. A., Ishiaku, U. S., Nakai, A., and Hamada, H. (2006). Compos. Part A. 37: 2274-2284.

[14] U. Somnuk, G. Eder, P. Phinyocheep, N. Suppakarn, W. Sutapun and Y. Ruksakulpiwat: J. Appl. Polym. Sci. Vol. 106 (2007), p.2997.

DOI: 10.1002/app.26883

[15] Vasanthakumari, R., and Penning, A. J. (1983). Polymer. 24: 175-178.

[16] Cheung, H. -Y., Lau, K. -T., Tao, X. -M., and Hui, D. (2008). Comp. Part B: Eng. 39: 1026-1033.

[17] Albano, C., Papa, J., Ichazo, M., González, J., and Ustariz, C. (2003). Comp. Struct. 62: 291–302.

[18] Kawai, T., Rahman, N., Matsuba, G., Nishida, K., Kanaya, T., Nakana, M., Okamoto, H., Kawada, J., Usuki, A., Honma, N., Nakajima, K., and Mutsuda M. (2007). Macromolecules. 40: 9463-9469.

DOI: 10.1021/ma070082c
