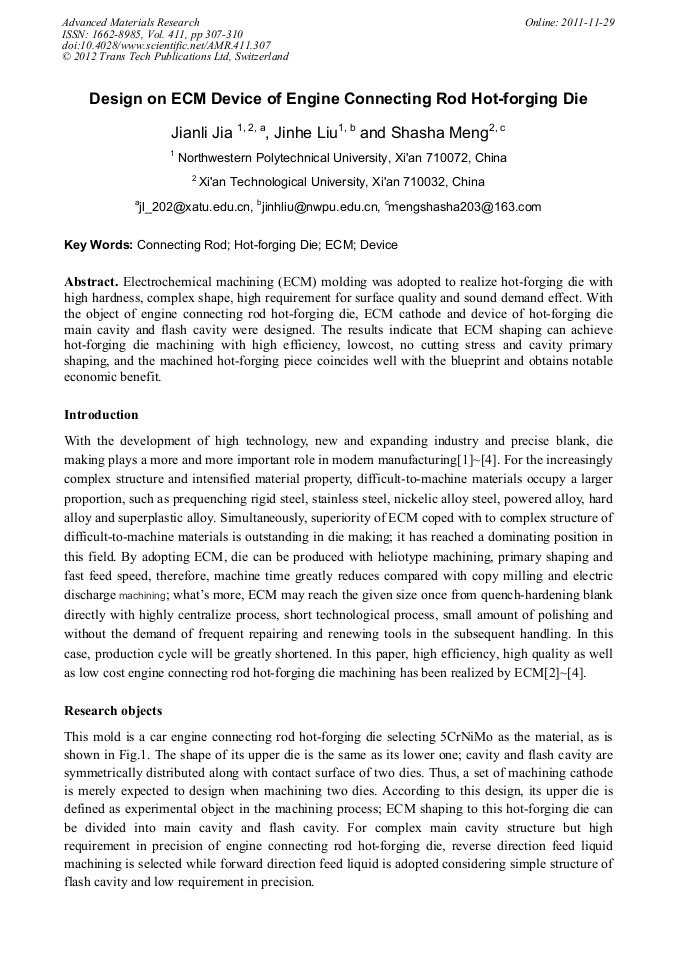

Design on ECM Device of Engine Connecting Rod Hot-Forging Die

Abstract:

Electrochemical machining (ECM) molding was adopted to realize hot-forging die with high hardness, complex shape, high requirement for surface quality and sound demand effect. With the object of engine connecting rod hot-forging die, ECM cathode and device of hot-forging die main cavity and flash cavity were designed. The results indicate that ECM shaping can achieve hot-forging die machining with high efficiency, lowcost, no cutting stress and cavity primary shaping, and the machined hot-forging piece coincides well with the blueprint and obtains notable economic benefit.
