For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Influence of Salt Aid on Combustion Synthesis of Nanocrystalline CeO2 Powders
p.5
Preparation and Properties of the ZnO Nanopowder with Chemical Liquid-Phase Method
p.9
Preparation of SiO2 Encapsulated ZnO Nanopowders by Sol-Gel Method
p.13
Preparation of Flower-Like ZnO Micro-Sphere Powders and their Surface Wettability Modification
p.17
Preparation of ZnO Nanopowders by One-Step Hydrothermal Synthesis
p.21
Preparation of Nano-TiO2 in Inverse Micro-Emulsion System with Compound Surfactant
p.25
Effect of TiCl4 Concentration and Acidity on Size and Phase of TiO2 Nanopowders Prepared by Non-Hydrolytic Sol-Gel Method
p.32
Preparation of TiO2 Nanopowders by Solvothermal Synthesis
p.36
Solvothermal Synthesis and Photocatalysis of SnO2 Nanocrystal Microspheres
p.40

Preparation of ZnO Nanopowders by One-Step Hydrothermal Synthesis

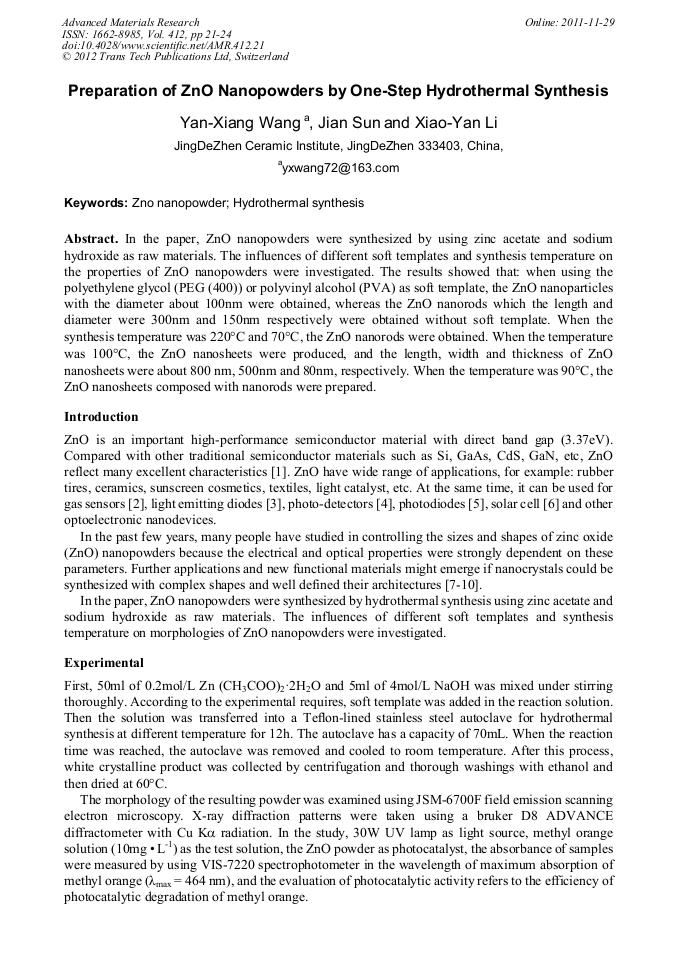

Article Preview

Abstract:

In the paper, ZnO nanopowders were synthesized by using zinc acetate and sodium hydroxide as raw materials. The influences of different soft templates and synthesis temperature on the properties of ZnO nanopowders were investigated. The results showed that: when using the polyethylene glycol (PEG (400)) or polyvinyl alcohol (PVA) as soft template, the ZnO nanoparticles with the diameter about 100nm were obtained, whereas the ZnO nanorods which the length and diameter were 300nm and 150nm respectively were obtained without soft template. When the synthesis temperature was 220°C and 70°C, the ZnO nanorods were obtained. When the temperature was 100°C, the ZnO nanosheets were produced, and the length, width and thickness of ZnO nanosheets were about 800 nm, 500nm and 80nm, respectively. When the temperature was 90°C, the ZnO nanosheets composed with nanorods were prepared.

You might also be interested in these eBooks
Chinese Ceramics Communications II View Preview

Info:

Periodical:

Advanced Materials Research (Volume 412)

Pages:

21-24

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.412.21

Citation:

Cite this paper

Online since:

November 2011

Authors:

Yan Xiang Wang, Jian Sun, Xiao Yan Li

Keywords:

Hydrothermal Synthesis, ZnO Nanopowder

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] D. C. Look: Mater. Sci. Eng. B. Vol. 80 (2011), p.383.

Google Scholar

[2] N. Golego, S. A. Studenikin and M. Cocivera: J. Electrochem. Soc. Vol. 147(2000), p.1592.

Google Scholar

[3] N. Saito, H. Haneda and T. Sekiguchi, et al.: Adv. Mater. Vol. 14(2002), p.418.

Google Scholar

[4] S. Liang, H Sheng, Y. Liu and Z. Huo, et al.: J. Cryst. Growth. Vol. 225(2001), p.110.

Google Scholar

[5] J.Y. Lee, Y.S. Choi and J.H. Kim: Thin Solid Films. Vol. 403–404(2002), p.553.

Google Scholar

[6] Y.X. Wang, T. Li. Ma and X.Y. Fan, et al: Mater. Sci. Forum. Vol. 663-665(2010), p.857.

Google Scholar

[7] T.S. Ahmadi, Z.L. Wang and T.C. Green, et al.: Sci. Vol. 272(1996), p. (1924).

Google Scholar

[8] H.B. Zeng, P. Liu, W. Cai and X. Cao, et al.: Cryst. Growth. Des. Vol. 7(2007), p.1092.

Google Scholar

[9] G.B. Sun, M.H. Cao and Y.H. Wang: Mater. Lett. Vol. 60(2006), p.2777.

Google Scholar

[10] Z.Q. Li, Y.J. Xiong and Y. Xie: Inorg. Chem. Vol. 42(2003), p.8105.

Google Scholar

[11] X. Wang, Ph.D. Thesis (Zhe Jiang University, China, 2007).

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
