For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Preparation of ZnO Nanopowders by One-Step Hydrothermal Synthesis
p.21
Preparation of Nano-TiO2 in Inverse Micro-Emulsion System with Compound Surfactant
p.25
Effect of TiCl4 Concentration and Acidity on Size and Phase of TiO2 Nanopowders Prepared by Non-Hydrolytic Sol-Gel Method
p.32
Preparation of TiO2 Nanopowders by Solvothermal Synthesis
p.36
Solvothermal Synthesis and Photocatalysis of SnO2 Nanocrystal Microspheres
p.40
Hydrothermal Synthesis of Walnut-Like α-Ni(OH)2 Architectures and their In Situ Thermal Convention to NiO
p.44
Preparation and Photoluminescence of In2O3 Nanofibers by Electrospinning
p.49
Fabrication of Porous Structured SnO2/In2O3 Composite by Solid-Phase Reactive Sintering
p.53
Preparation of ZrO2 Spherical Nanoparticles Used for Photonic Crystal
p.57

Solvothermal Synthesis and Photocatalysis of SnO2 Nanocrystal Microspheres

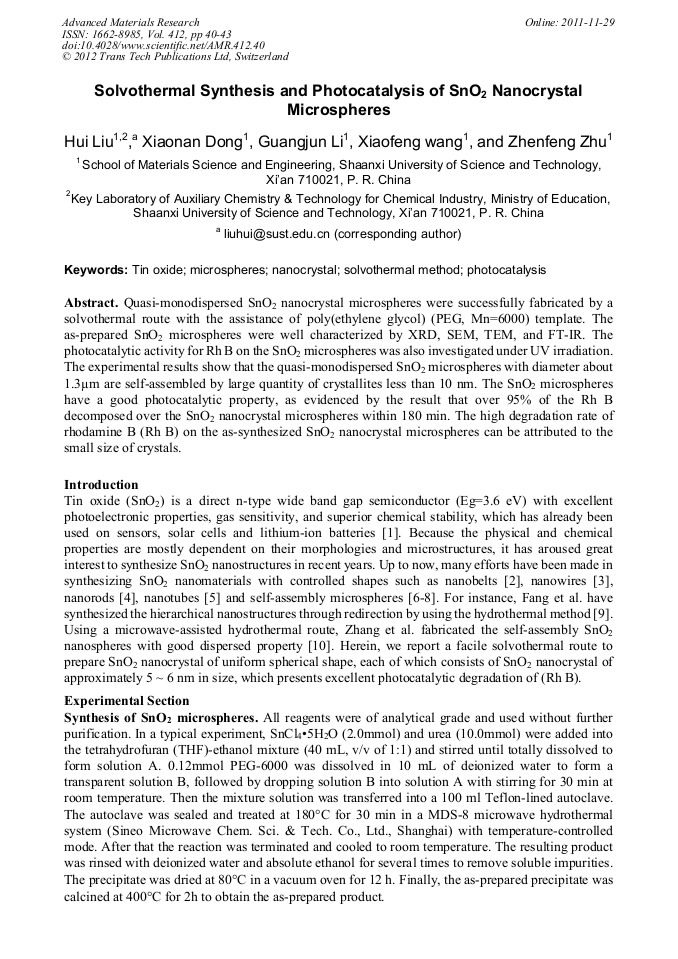

Article Preview

Abstract:

Quasi-monodispersed SnO2 nanocrystal microspheres were successfully fabricated by a solvothermal route with the assistance of poly (ethylene glycol) (PEG, Mn=6000) template. The as-prepared SnO2 microspheres were well characterized by XRD, SEM, TEM, and FT-IR. The photocatalytic activity for Rh B on the SnO2 microspheres was also investigated under UV irradiation. The experimental results show that the quasi-monodispersed SnO2 microspheres with diameter about 1.3µm are self-assembled by large quantity of crystallites less than 10 nm. The SnO2 microspheres have a good photocatalytic property, as evidenced by the result that over 95% of the Rh B decomposed over the SnO2 nanocrystal microspheres within 180 min. The high degradation rate of rhodamine B (Rh B) on the as-synthesized SnO2 nanocrystal microspheres can be attributed to the small size of crystals.

You might also be interested in these eBooks
Chinese Ceramics Communications II View Preview

Info:

Periodical:

Advanced Materials Research (Volume 412)

Pages:

40-43

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.412.40

Citation:

Cite this paper

Online since:

November 2011

Authors:

Hui Liu, Xiao Nan Dong, Guang Jun Li, Xiao Feng Wang, Zhen Feng Zhu

Keywords:

Micro-Sphere, Nanocrystal, Photocatalysis, Solvothermal Method, TiN Oxide

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] Y. Q, Guo, Y. Li, R.Q. Tan, W.J. Song: Mat Sci Eng B Vol. 171 (2010), p.20.

Google Scholar

[2] Z.F. Ni, Z.P. Ying, Y. Luo, X.L. Dai, T. Liu: Chin. J. Inorg. Mater. Vol. 22(2007), p.609.

Google Scholar

[3] W.S. Kim, D. Kim, K.J. Choi, j.G. Park, S.H. Hong: Cryst Growth Des. Vol. 10(2010), p.4746.

Google Scholar

[4] X.M. Zhou, W.Y. Fu, H. B, Yang, et al.: Mater. Chem. Phys. Vol. 124(2010), p.614.

Google Scholar

[5] Y. Liu, J. Dong, M.L. Lin: Adv. Mater. Vol. 16(2004), p.353.

Google Scholar

[6] D.C. Rezan, Y.S. Hu, M. Antonietti, J. Maier, M.M. Titirci: Chem. Mater. Vol. 20(2008), p.1227.

Google Scholar

[7] T. Narihito, N. Tadashi, D. Yamamoto, et al.: Chem. Mater. Vol. 21(2009), p.5252.

Google Scholar

[8] S.Y. Ho, A.S.W. Wong, G.W. Ho: Cryst. Growth Des. Vol. 9(2009), p.732.

Google Scholar

[9] M. Fang, X.L. Tan, B.C. Cheng, L.D. Zhang: J. Mater. Chem. Vol. 19(2009), p.1320.

Google Scholar

[10] L. Zhang, Y.J. Zhu, S.W. Cao: Chem. Lett. Vol. 37(2008), p.1002.

Google Scholar

[11] J.R. Zhang, L. Gao: Chin. J. Inorg. Mater. 20(2005), p.465.

Google Scholar

[12] L. Shi, H.L. Lin: Langmuir Vol. 26(2010), p.18718.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
