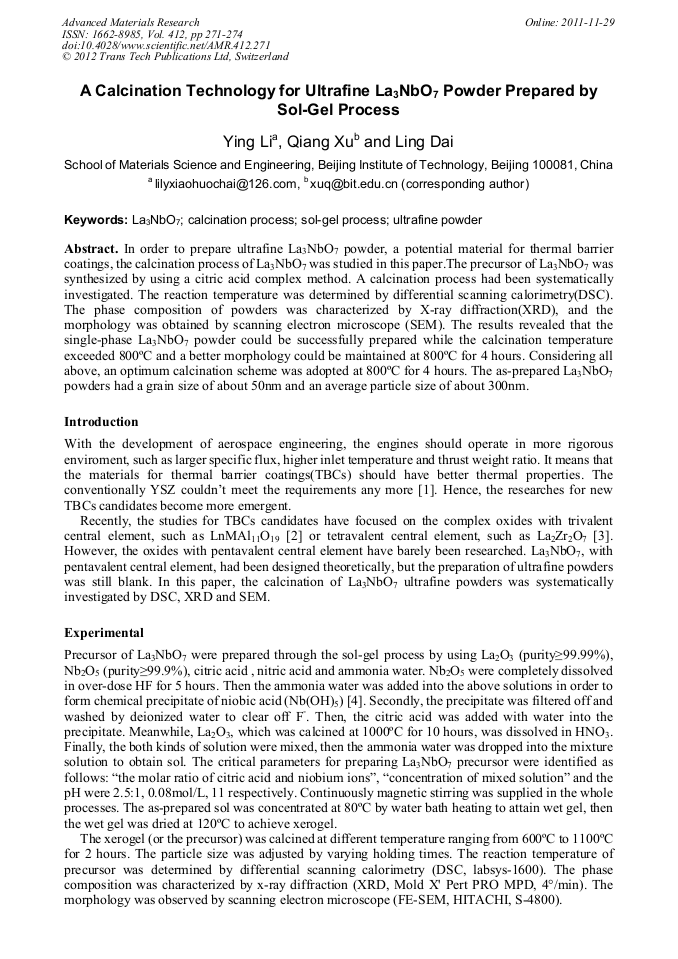

A Calcination Technology for Ultrafine La₃NbO₇ Powder Prepared by Sol-Gel Process

Abstract:

In order to prepare ultrafine La₃NbO₇ powder, a potential material for thermal barrier coatings, the calcination process of La₃NbO₇ was studied in this paper.The precursor of La₃NbO₇ was synthesized by using a citric acid complex method. A calcination process had been systematically investigated. The reaction temperature was determined by differential scanning calorimetry (DSC). The phase composition of powders was characterized by X-ray diffraction (XRD), and the morphology was obtained by scanning electron microscope (SEM). The results revealed that the single-phase La₃NbO₇ powder could be successfully prepared while the calcination temperature exceeded 800°C and a better morphology could be maintained at 800°C for 4 hours. Considering all above, an optimum calcination scheme was adopted at 800°C for 4 hours. The as-prepared La₃NbO₇ powders had a grain size of about 50nm and an average particle size of about 300nm.

• Periodical: Advanced Materials Research (Volume 412)
• Pages: 271-274
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.412.271
• Online since: November 2011
• Authors: Ying Li, Qiang Xu, Ling Dai
• Keywords: Calcination Process, La₃NbO₇, Sol-Gel Process, Ultra-Fine Powder

References

[1] N.P. Padture, M. Gell, E. H. Jordan: Science's Compass Review Vol. 12 (2002), pp.280-284.

[2] B. Jiang, M. H. Fang, Z. H. Huang, et al: Mater. Res. Bull. Vol. 45 (2010), pp.1506-1508.

[3] H. M. Zhou, D. Q. Yi: Journal of Alloys and Compounds Vol. 438 (2006), pp.217-221.

[4] H. T. Wu, L. X. Li, Q. Zou, et al.: J. Alloys and Compounds Vol. 509 (2011), pp.2232-2237.

[5] J. P. Zhao, Y. Li, B. Wang, et al.: Ceramics International Vol. 30 (2004), pp.613-617.

[6] Z. X. Yue, W. Y. Guo, J. Zhou, et al.: J. Magnetism Magnetic Mater. Vol. 270 (2004), pp.216-223.
