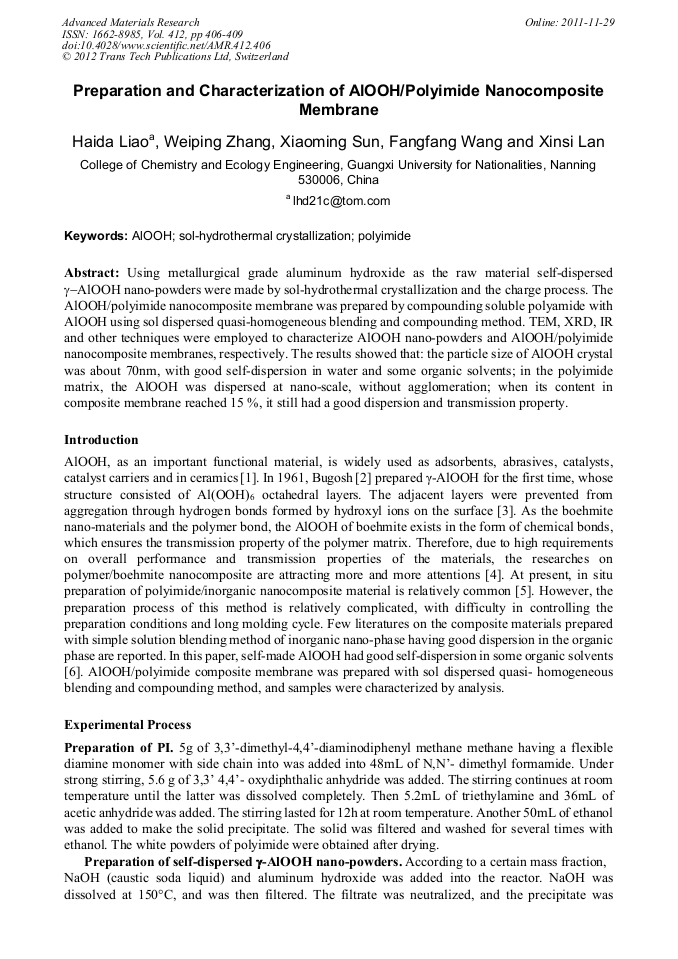

Preparation and Characterization of AlOOH/Polyimide Nanocomposite Membrane

Abstract:

Using metallurgical grade aluminum hydroxide as the raw material self-dispersed g-AlOOH nanopowders were made by sol-hydrothermal crystallization and the charge process. The AlOOH/polyimide nanocomposite membrane was prepared by compounding soluble polyamide with AlOOH using sol dispersed quasi-homogeneous blending and compounding method. TEM, XRD, IR and other techniques were employed to characterize AlOOH nanopowders and AlOOH/polyimide nanocomposite membranes, respectively. The results showed that: the particle size of AlOOH crystal was about 70nm, with good self-dispersion in water and some organic solvents; in the polyimide matrix, the AlOOH was dispersed at nanoscale, without agglomeration; when its content in composite membrane reached 15 %, it still had a good dispersion and transmission property.

• Periodical: Advanced Materials Research (Volume 412)
• Pages: 406-409
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.412.406
• Online since: November 2011
• Authors: Hai Da Liao, Wei Ping Zhang, Xiao Ming Sun, Fang Fang Wang, Xin Si Lan
• Keywords: AlOOH, Polyimide, Sol-Hydrothermal Crystallization

References

[1] M.P.B. Van Bruggen: Langmuir Vol. 14 (1998), p.2245.

[2] J. Bugosh: J. Phys. Chem. Vol. 65 (1961), p.1789.

[3] T.N. Matheson, et al.: 2007 Inter. Conf. on Solid Eelectrics (Winchester, England, 2007).

[4] S.J. Jeon, et al.: Thin Solid Films Vol. 516 (2008), p.3904.

[5] T.S. Halbach, et al.: Polymer Vol. 49 (2008), p.867.

[6] H.D. Liao, et al.: Materials Transactions Vol. 49 (2008), p.1741.

[7] J. Huang, et al.: J. Nanjing University of Technology Vol. 24 (2004), p.6.

[8] H. Zhou, et al.: Journal of the Chinese Ceramic Society Vol. 37 (2009), p.1288.
