Influences of Different Calcination Ambiences on Phase Composition, Morphologies of Ceramic Coatings on Ti–6Al–4V Alloy by Micro-Arc Oxidation

Guo Dong Hao; Huan Yuan; Jing Zhang

doi:10.4028/www.scientific.net/AMR.412.469

Paper Titles

Investigation on ABS Hydrophobic and Oleophobic Processes
p.436

Influencing Factors on the Determination of Corundum Particle Parameters by SEM and Image Analysis
p.441

Observation Technique of Internal Microstructure of Micro-Powder by Electron Microscopy
p.445

In Vivo Stability and Biodistribution of Quantum Dots by Inductively Coupled Plasma-Atomic Emission Spectrometry
p.449

The Efficiency Change of Spiral Classifier with Different Overflow Discharge Methods
p.453

Drying Kinetics of Granules in a Fluidized Bed Dryer
p.459

Drying Model of Paste Materials in Fluidized Bed with Inert Particles and Immersed Heating Tubes
p.463

Influences of Different Calcination Ambiences on Phase Composition, Morphologies of Ceramic Coatings on Ti–6Al–4V Alloy by Micro-Arc Oxidation
p.469

Preparation of Barium Titanate Powders by Gel-Solid Reaction
p.473

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 412Influences of Different Calcination Ambiences on...

Influences of Different Calcination Ambiences on Phase Composition, Morphologies of Ceramic Coatings on Ti–6Al–4V Alloy by Micro-Arc Oxidation

Abstract:

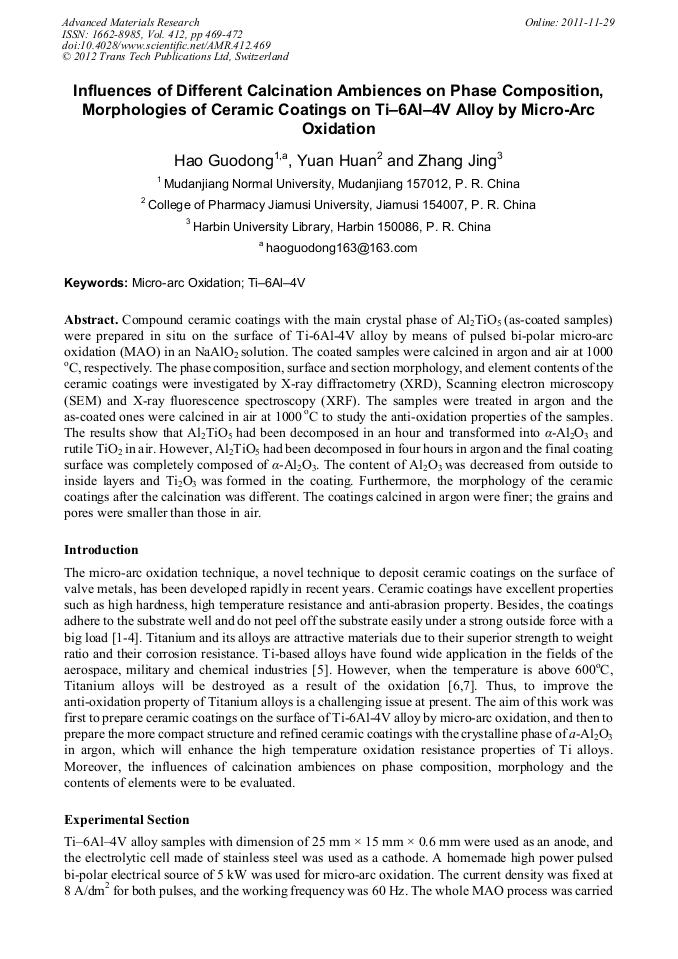

Compound ceramic coatings with the main crystal phase of Al₂TiO₅(as-coated samples) were prepared in situ on the surface of Ti-6Al-4V alloy by means of pulsed bi-polar micro-arc oxidation (MAO) in an NaAlO₂solution. The coated samples were calcined in argon and air at 1000°C, respectively. The phase composition, surface and section morphology, and element contents of the ceramic coatings were investigated by X-ray diffractometry (XRD), Scanning electron microscopy (SEM) and X-ray fluorescence spectroscopy (XRF). The samples were treated in argon and the as-coated ones were calcined in air at 1000°C to study the anti-oxidation properties of the samples. The results show that Al₂TiO₅ had been decomposed in an hour and transformed into α-Al₂O₃ and rutile TiO₂ in air. However, Al₂TiO₅ had been decomposed in four hours in argon and the final coating surface was completely composed of α-Al₂O₃. The content of Al₂O₃was decreased from outside to inside layers and Ti₂O₃was formed in the coating. Furthermore, the morphology of the ceramic coatings after the calcination was different. The coatings calcined in argon were finer; the grains and pores were smaller than those in air.
