Kinetics Study on Non-Isothermal Crystallization of Amorphous Alloy Mg65Cu15Ag10Y10

Xiao Jun Wang; Tian Dong Xia; Xue Ding Chen

doi:10.4028/www.scientific.net/AMR.413.432

Paper Titles

Investigation of Surface Coating Preparation of High-Aluminum Bronze Alloy by Induction Remelting Process
p.410

Meshing Efficiency of Globoidal Indexing Cam Mechanism with Steel Ball
p.414

Investigation of Microstructure and Machinable Mechanism of the B₄C/BN Composites Fabricated by Hot-Pressing Process
p.420

The Effects of Adding TiC Powders to VANADIS 4 Tool Steel by HIP Treatment
p.426

Kinetics Study on Non-Isothermal Crystallization of Amorphous Alloy Mg₆₅Cu₁₅Ag₁₀Y₁₀
p.432

Influence of Zinc on the Microstructure and Brittle Phases of Friction Stir Welded Joint of Al / Ti Dissimilar Alloys
p.439

A Research on the Forward Slip Coefficient in Alloyed Bar Rolling by the Round-Oval-Round Pass Sequence
p.444

New Reactive Compatibilizer B Preparation and its Application in Polystyrene Ether/Nylon 66 Alloy
p.449

Study on In Situ Monitoring of the Surrounding Rock Pressure of the Shallow Large-Span Tunnel in the Tunnel Construction Process
p.454

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 413Kinetics Study on Non-Isothermal Crystallization...

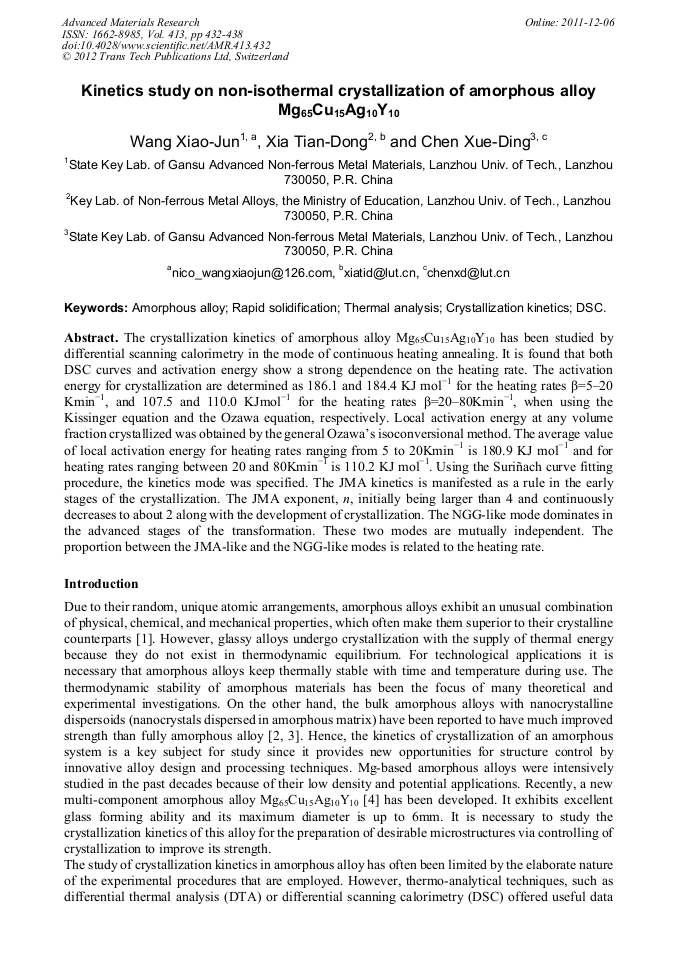

Kinetics Study on Non-Isothermal Crystallization of Amorphous Alloy Mg₆₅Cu₁₅Ag₁₀Y₁₀

Abstract:

The crystallization kinetics of amorphous alloy Mg₆₅Cu₁₅Ag₁₀Y₁₀ has been studied by differential scanning calorimetry in the mode of continuous heating annealing. It is found that both DSC curves and activation energy show a strong dependence on the heating rate. The activation energy for crystallization are determined as 186.1 and 184.4 KJ mol⁻¹ for the heating rates β=5-20 Kmin⁻¹, and 107.5 and 110.0 KJmol⁻¹ for the heating rates β=20-80Kmin⁻¹, when using the Kissinger equation and the Ozawa equation, respectively. Local activation energy at any volume fraction crystallized was obtained by the general Ozawa's isoconversional method. The average value of local activation energy for heating rates ranging from 5 to 20Kmin⁻¹ is 180.9 KJ mol⁻¹ and for heating rates ranging between 20 and 80Kmin⁻¹ is 110.2 KJ mol⁻¹. Using the Suriñach curve fitting procedure, the kinetics mode was specified. The JMA kinetics is manifested as a rule in the early stages of the crystallization. The JMA exponent, n, initially being larger than 4 and continuously decreases to about 2 along with the development of crystallization. The NGG-like mode dominates in the advanced stages of the transformation. These two modes are mutually independent. The proportion between the JMA-like and the NGG-like modes is related to the heating rate.
