The Optimization of Thermomechanical Treatment and Properties of Cu-Fe-P Alloy C194

Xiao Zhu Chen; Yuan Zheng Yang; Qiu Sheng Lin; Xiao Jun Bai

doi:10.4028/www.scientific.net/AMR.415-417.724

Paper Titles

Dry Sliding Wear Behaviour of Fe-Based Powder Sintered Steel
p.707

The Geometrical Characteristic Description Method of Part Drawing
p.711

The Nanocrystallinity Enhancement of Sol-Gel Derived TiO₂ Nanoparticles by Pre-Hydrothermal Treatment
p.715

Extraction Feature of Gas Flucturation of Guideway System Based on the Wavelet Transform
p.720

The Optimization of Thermomechanical Treatment and Properties of Cu-Fe-P Alloy C194
p.724

Establishment and Application of Simulation Mode on the Nano-Conductive Carbon Black Process
p.728

Effect of Additives on Thermal Decomposition of Phosphogypsum
p.735

A New Fuzzy Parameters Reliability Analysis Model
p.741

Effect of Laser Fluence on Siliver Nanoparticles Colloid
p.747

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 415-417The Optimization of Thermomechanical Treatment and...

The Optimization of Thermomechanical Treatment and Properties of Cu-Fe-P Alloy C194

Abstract:

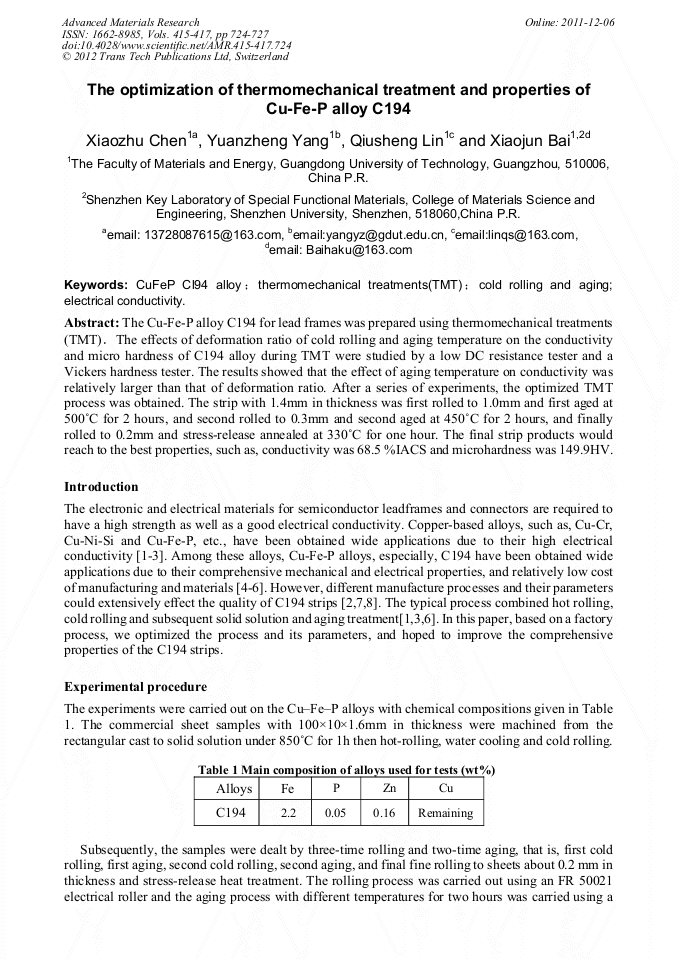

The Cu-Fe-P alloy C194 for lead frames was prepared using thermomechanical treatments (TMT)．The effects of deformation ratio of cold rolling and aging temperature on the conductivity and micro hardness of C194 alloy during TMT were studied by a low DC resistance tester and a Vickers hardness tester. The results showed that the effect of aging temperature on conductivity was relatively larger than that of deformation ratio. After a series of experiments, the optimized TMT process was obtained. The strip with 1.4mm in thickness was first rolled to 1.0mm and first aged at 500°C for 2 hours, and second rolled to 0.3mm and second aged at 450°C for 2 hours, and finally rolled to 0.2mm and stress-release annealed at 330°C for one hour. The final strip products would reach to the best properties, such as, conductivity was 68.5 %IACS and microhardness was 149.9HV.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 415-417)

Pages:

724-727

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.415-417.724

Citation:

Cite this paper

Online since:

December 2011

Authors:

Xiao Zhu Chen, Yuan Zheng Yang, Qiu Sheng Lin, Xiao Jun Bai

Keywords:

Cold Rolling and Aging, CuFeP Cl94 Alloy, Electrical Conductivity, Thermomechanical Treatment (TMT)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] N. Norityuki, C. Tong, O. Makoto, et al. Hitachi Cable Review Vol.18(1999), p.61

Google Scholar

[2] H. Tojo, K. Watanabe. Hitachi Cable Review Vol. 23(2004), p.33

Google Scholar

[3] D. P. Lua, J. Wang, W. J. Zeng, et al. Materials Science Engineering Vol.421A(2006), p.254

Google Scholar

[4] H. J. Ryu, H. K. Baik, S. H. Hong. Journal of Materials Science Vol.35(2000), p.3641

Google Scholar

[5] H. Zhang, H. G.Zhang, L. X. Li. Journal of Materials Processing Technology Vol. 209(2009), p.2892

Google Scholar

[6] H. Q. Li, C. X. Chen, C. J. Xiang, et al. Trans Nonferrous Met Soc China Vol. 17(2007), p. s108l

Google Scholar

[7] L. Blaz, E. Evangelista, M. Niewczas. Metallurgy and Materials Transaction Vol.25A(1994), p.257

Google Scholar

[8] H. Zhang, H. G. Zhang , D. S. Peng. Transaction of Nonferrous Metals Sociaty of China, Vol. 16(2006), p.562

Google Scholar
