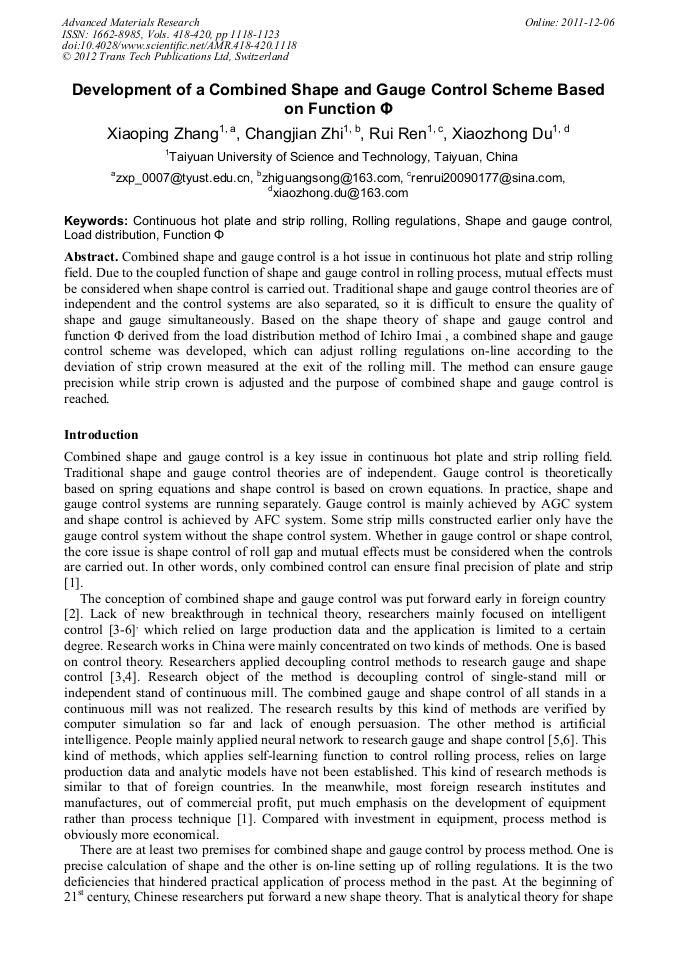

Development of a Combined Shape and Gauge Control Scheme Based on Function Φ

Abstract:

Combined shape and gauge control is a hot issue in continuous hot plate and strip rolling field. Due to the coupled function of shape and gauge control in rolling process, mutual effects must be considered when shape control is carried out. Traditional shape and gauge control theories are of independent and the control systems are also separated, so it is difficult to ensure the quality of shape and gauge simultaneously. Based on the shape theory of shape and gauge control and function Φ derived from the load distribution method of Ichiro Imai , a combined shape and gauge control scheme was developed, which can adjust rolling regulations on-line according to the deviation of strip crown measured at the exit of the rolling mill. The method can ensure gauge precision while strip crown is adjusted and the purpose of combined shape and gauge control is reached.

• Periodical: Advanced Materials Research (Volumes 418-420)
• Pages: 1118-1123
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.418-420.1118
• Online since: December 2011
• Authors: Xiao Ping Zhang, Chang Jian Zhi, Rui Ren, Xiao Zhong Du
• Keywords: Continuous Hot Plate and Strip Rolling, Function Φ, Load Distribution, Rolling Regulations, Shape and Gauge Control

References

[1] X. P. Zhang, S. Q. Zhang, J. Z. Zhang, etc.: Journal of Plasticity Engineering Vol. 12 (2005), p.11 (In Chinese)

[2] M. Tarokh: in: Proc. of Con. on Measurement and Control (London, UK, 1972), p.42

[3] K. Linghu, A. R. He, Q. Yang, etc.: Journal of Beijing University of Science and Technology Vol. 29 (2007), p.338 (In Chinese)

[4] J. H. Wang, M. Huang, S. S. Gu: Journal of Northeastern University Vol. 26 (2005), p.224 (In Chinese)

[5] F. H. Wang, L. Wang, Y. K. Sun: Journal of Chinese Computer Systems Vol. 25 (2004), p.2264 (In Chinese)

[6] F. H. Wang, Y. K. Sun, Z. Y. Chen: Journal of Beijing University of Science and Technology Vol. 25 (2003), p.82 (In Chinese)

[7] J. Z. Zhang: SCIENTIA SINICA Vol. 30 (2000), p.187

[8] X. P. Zhang, S. Q. Zhang, H. G. Guo, etc.: Journal of Plasticity Engineering Vol. 16 (2009), p.102 (In Chinese)

[9] L. Xu: On Integrated Control for Flatness and Gauge (Ph.D., Northeastern University, China 2006) (In Chinese) (In Chinese)

[10] A. Bai: Steel Rolling Vol. 18 (2001), p.10 (In Chinese)

[11] I. Imai: Journal of Materials Processing Technology, Vol. 5 (1964), No. 44, p.573 (In Japanese)

[12] J. Z. Zhang, Z. P. Zhang, H. Sun, S. M. Wu, in: Baosteel BAC, Vol. K (2010), p.278 (In Chinese)

[13] G. F. She, S. T. Hu, L. Xiao, etc., in: Baosteel BAC, Vol. K (2010), p.286 (In Chinese)
