The Effect of Preheating Temperature on the Microstructure and Properties of Copper by the Liquid Die Forging Technology

Gui Rong Yang; Wen Ming Song; Ying Ma; Yuan Hao

doi:10.4028/www.scientific.net/AMR.418-420.1213

Paper Titles

The Research on the Algorithm of Rubber Parts Forming Die Dimension Based on Mid-Difference Value Method
p.1188

Numerical Simulation of Fiber Orientation of Short Fiber Reinforced Polypropylene in Injection Molding
p.1194

Characteristic Analysis of Grinding Point Movement in Grinding Aspheric with Arc Envelope Grinding Method
p.1202

Evaluation of Welding Residual Stress Based on Temper Bead Welding Technique
p.1208

The Effect of Preheating Temperature on the Microstructure and Properties of Copper by the Liquid Die Forging Technology
p.1213

Parametric Design of the Fish-Tail Die Channel Based on SolidWorks
p.1218

Microstructure Evolution and Numerical Simulation of DP Steel TWBs During Warm Tensile Deformation
p.1222

Experimental Investigation of Surface Roughness in High Speed Turning of Hardened AISI P20 Steel
p.1228

Research on Roll Force for Variable Gauge Rolling
p.1232

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 418-420The Effect of Preheating Temperature on the...

The Effect of Preheating Temperature on the Microstructure and Properties of Copper by the Liquid Die Forging Technology

Abstract:

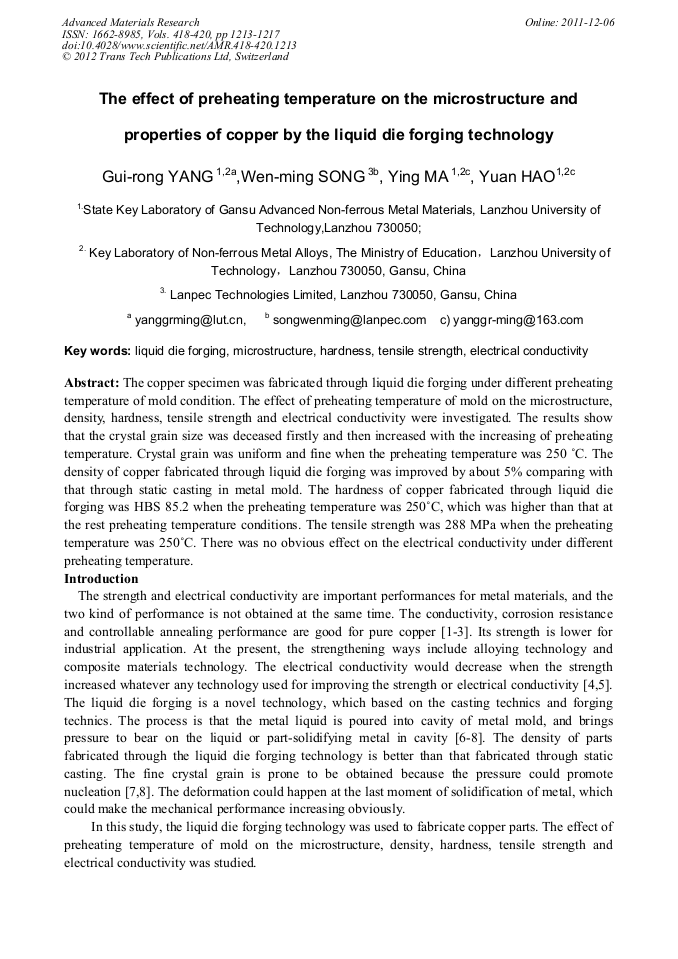

The copper specimen was fabricated through liquid die forging under different preheating temperature of mold condition. The effect of preheating temperature of mold on the microstructure, density, hardness, tensile strength and electrical conductivity were investigated. The results show that the crystal grain size was deceased firstly and then increased with the increasing of preheating temperature. Crystal grain was uniform and fine when the preheating temperature was 250 °C. The density of copper fabricated through liquid die forging was improved by about 5% comparing with that through static casting in metal mold. The hardness of copper fabricated through liquid die forging was HBS 85.2 when the preheating temperature was 250°C, which was higher than that at the rest preheating temperature conditions. The tensile strength was 288 MPa when the preheating temperature was 250°C. There was no obvious effect on the electrical conductivity under different preheating temperature.
