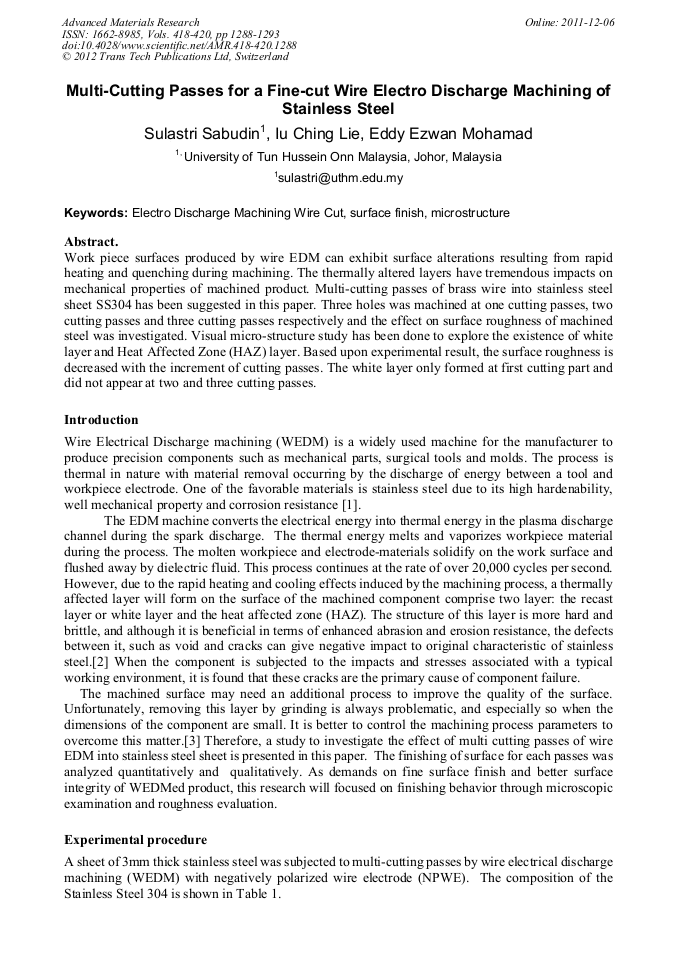

Multi-Cutting Passes for a Fine-Cut Wire Electro Discharge Machining of Stainless Steel

Sulastri Sabudin; Iu Ching Lie; Eddy Ezwan Mohamad

doi:10.4028/www.scientific.net/AMR.418-420.1288

Paper Titles

The Research of Characteristic Agent Used in Cold Bending Centre Sill
p.1266

Research of Die Cavity Warm Extrusion on 3Cr2W8V Steel One-Off Forming Technology
p.1270

Constitutive Equation of ZL201 Alloy during the Semi-Solid Thixotropic Compression
p.1274

Mechanical Properties of Aluminium-Alumina Welding by Friction Welding
p.1279

Multi-Cutting Passes for a Fine-Cut Wire Electro Discharge Machining of Stainless Steel
p.1288

Experimental Investigation and Analytical Calculation of the Bending Force for Air Bending of Structured Sheet Metals
p.1294

The Production of Poly(L-lactic acid) from 2-Steps Direct Polycondensation in 100 Kg Scale
p.1301

Experimental Investigations of the Machinability of Titanium Alloy TC4 with Different Hydrogen Contents
p.1307

Vibration Analysis of Single Lap Adhesive Joint with Non-Uniform Adhesive Thickness: Experimental and Analytical Investigation
p.1312

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 418-420Multi-Cutting Passes for a Fine-Cut Wire Electro...

Multi-Cutting Passes for a Fine-Cut Wire Electro Discharge Machining of Stainless Steel

Abstract:

Work piece surfaces produced by wire EDM can exhibit surface alterations resulting from rapid heating and quenching during machining. The thermally altered layers have tremendous impacts on mechanical properties of machined product. Multi-cutting passes of brass wire into stainless steel sheet SS304 has been suggested in this paper. Three holes was machined at one cutting passes, two cutting passes and three cutting passes respectively and the effect on surface roughness of machined steel was investigated. Visual micro-structure study has been done to explore the existence of white layer and Heat Affected Zone (HAZ) layer. Based upon experimental result, the surface roughness is decreased with the increment of cutting passes. The white layer only formed at first cutting part and did not appear at two and three cutting passes.
