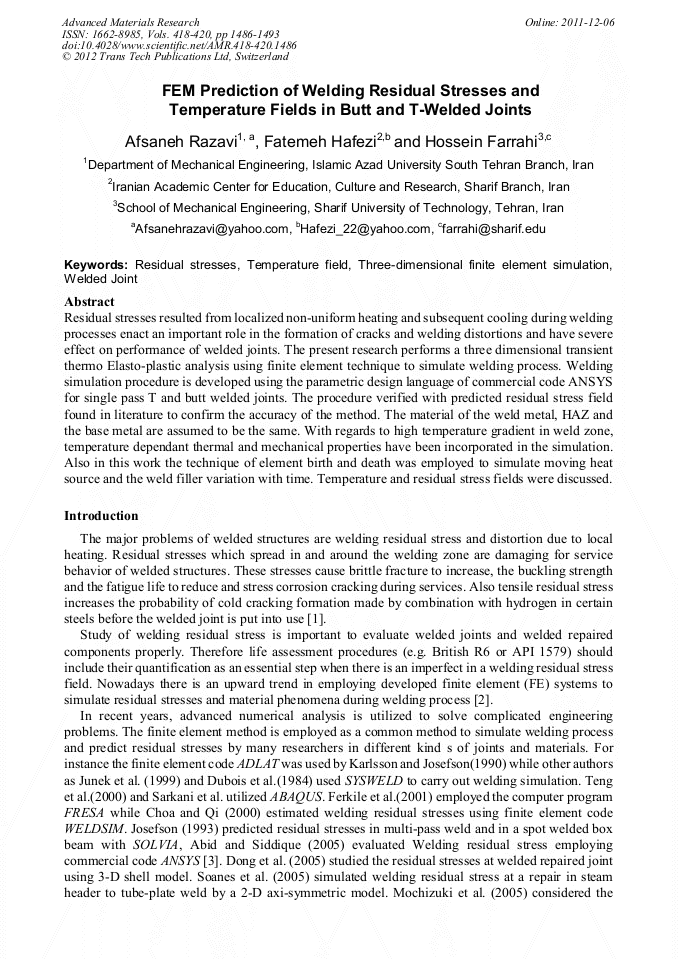

FEM Prediction of Welding Residual Stresses and Temperature Fields in Butt and T-Welded Joints

Abstract:

Residual stresses resulted from localized non-uniform heating and subsequent cooling during welding processes enact an important role in the formation of cracks and welding distortions and have severe effect on performance of welded joints. The present research performs a three dimensional transient thermo Elasto-plastic analysis using finite element technique to simulate welding process. Welding simulation procedure is developed using the parametric design language of commercial code ANSYS for single pass T and butt welded joints. The procedure verified with predicted residual stress field found in literature to confirm the accuracy of the method. The material of the weld metal, HAZ and the base metal are assumed to be the same. With regards to high temperature gradient in weld zone, temperature dependant thermal and mechanical properties have been incorporated in the simulation. Also in this work the technique of element birth and death was employed to simulate moving heat source and the weld filler variation with time. Temperature and residual stress fields were discussed.

• Periodical: Advanced Materials Research (Volumes 418-420)
• Pages: 1486-1493
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.418-420.1486
• Online since: December 2011
• Authors: Afsaneh Razavi, Fatemeh Hafezi, Hossein Farrahi
• Keywords: Residual Stress, Temperature Field, Three-Dimensional Finite Element Simulation, Welded Joint

References

[1] D. Deng, FEM prediction of welding residual stress and distortion in carbon steel considering phase transformation effects, Materials and Design, Vol. 30(2009), p.359–366.

DOI: 10.1016/j.matdes.2008.04.052

[2] V. Deaconu, Finite element modelling of residual stress - a powerful tool in the aid of structural integrity assessment of welded structures, 5th Int. Conference Structural Integrity of Welded Structures (ISCS2007), Timisora, Romania, pp.20-21.

[3] S. Nadimi, R. J. Khoushehmehr, B. Rohani and A. Mostafapour, Investigation and analysis of weld induced residual stresses in two dissimilar pipes by finite element modeling, journal of applied sciences, Vol. 8, No. 6(2008), pp.1014-1020.

DOI: 10.3923/jas.2008.1014.1020

[4] D. Deng, H. Murakawa and W. Liang, Numerical and experimental investigations on welding residual stress in multi-pass butt-welded austenitic stainless steel pipe, Computational Materials Science, Vol. 42(2008), pp.234-244.

DOI: 10.1016/j.commatsci.2007.07.009

[5] D. Deng, H. Murakawa, Numerical simulation of temperature field and residual stress in multi-pass welds in stainless steel pipe and comparison with experimental measurements, Computational Materials Science, Vol. 37 (2006), pp.269-277.

DOI: 10.1016/j.commatsci.2005.07.007

[6] Z. Barsoum, I. barsoum, Residual stress effects on fatigue life of welded structures using LEFM, Engineering Failure Analysis, Vol. 16(2009), pp.449-467.

DOI: 10.1016/j.engfailanal.2008.06.017

[7] T. L. Teng, C. P. Fung, P. H. Chang and W. C. Yang, Analysis of residual stresses and distortions in T-joint fillet welds, Journal of Pressure Vessels and Piping, Vol. 78(2001), pp.523-538.

DOI: 10.1016/s0308-0161(01)00074-6

[8] C. H. Lee, K. H. Chang, Three-dimensional finite element simulation of residual stresses in circumferential welds of steel pipe including pipe diameter effects, Material Science and Engineering, Vol. A (2007).

DOI: 10.1016/j.msea.2007.10.011

[9] J. Goldak, A. Chakravariti and M. Bibby, A new finite element model for welding heat sources, Metal Trans., Vol. B 15 (1984), pp.299-305.

DOI: 10.1007/bf02667333
