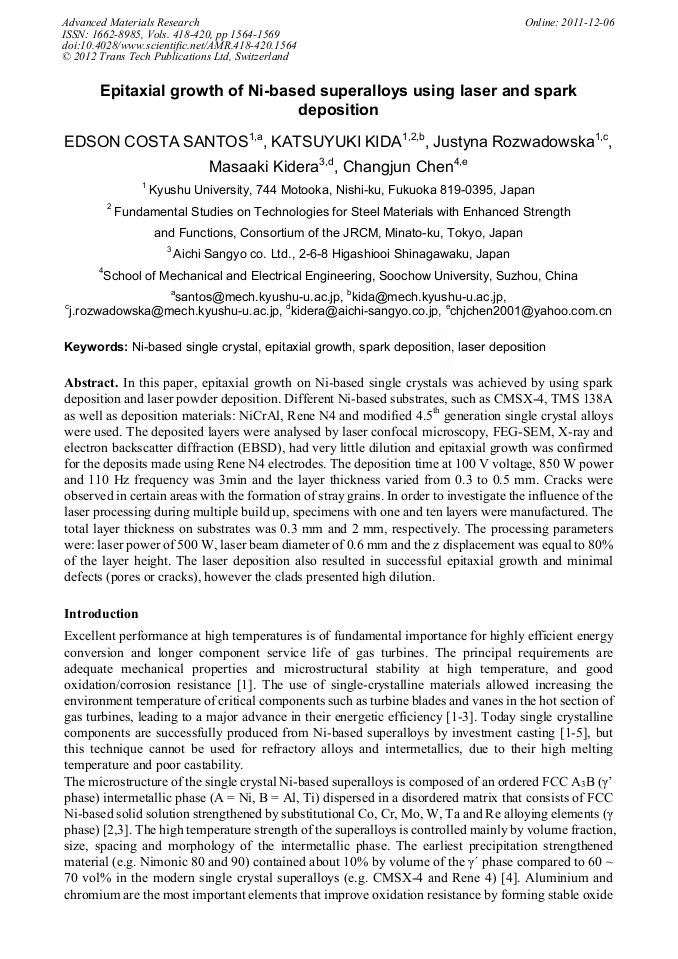

Epitaxial Growth of Ni-Based Superalloys Using Laser and Spark Deposition

Abstract:

In this paper, epitaxial growth on Ni-based single crystals was achieved by using spark deposition and laser powder deposition. Different Ni-based substrates, such as CMSX-4, TMS 138A as well as deposition materials: NiCrAl, Rene N4 and modified 4.5th generation single crystal alloys were used. The deposited layers were analysed by laser confocal microscopy, FEG-SEM, X-ray and electron backscatter diffraction (EBSD), had very little dilution and epitaxial growth was confirmed for the deposits made using Rene N4 electrodes. The deposition time at 100 V voltage, 850 W power and 110 Hz frequency was 3min and the layer thickness varied from 0.3 to 0.5 mm. Cracks were observed in certain areas with the formation of stray grains. In order to investigate the influence of the laser processing during multiple build up, specimens with one and ten layers were manufactured. The total layer thickness on substrates was 0.3 mm and 2 mm, respectively. The processing parameters were: laser power of 500 W, laser beam diameter of 0.6 mm and the z displacement was equal to 80% of the layer height. The laser deposition also resulted in successful epitaxial growth and minimal defects (pores or cracks), however the clads presented high dilution.

• Periodical: Advanced Materials Research (Volumes 418-420)
• Pages: 1564-1569
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.418-420.1564
• Online since: December 2011
• Authors: Edson Costa Santos, Katsuyuki Kida, Justyna Rozwadowska, Masaaki Kidera, Chang Jun Chen
• Keywords: Epitaxial Growth, Laser Deposition, Ni-Based Single Crystal, Spark Deposition

References

[1] R. C. Reed, The Superalloys, Fundamentals and Applications, Cambridge University Press, 2006, p.372.

[2] H. M. Flower, High Performance Materials in Aerospace, Chapman & Hall, 1995.

[3] F. L. Versnyder, M. E. Shank, Materials Science and Engineering 6 (1970) 213-247.

[4] S. S. Babu, S. A. David, J. W. Park, J. M. Vitek, Joining of nickel-base superalloy single crystals, in: The Microsctructure and Performance of Joints in High-Temperature Alloys, The Institutute of Materials, Minerals, and Mining, IOM3, London, UK, 2002.

[5] R. Vilar, E.C. Santos, P.N. Ferreira, N. Franco, R.C. da Silva, Acta materialia, 57 (2009)

[6] C. Chen, M. Zhang, S. Zhang, Q. Chang, X. Chen, Advanced Science Letters, Volume 4, Number 3, March 2011 , pp.996-1001(6).

[7] R. Vilar, Journal of Laser Applications 11 (1999) 64-79.

[8] R. Vilar, Laser Alloying and Laser Cladding, in: R. P. Agarwala (Ed.) Lasers in Materials, Trans Tech Publications Ltd., 1999, pp.229-252.

[9] C. Bezençon, J.-D. Wagnière, S. Mokadem, M. Konter, W. Kurz, Laser Processing of Single Crystal Superalloys, in: Laser Assisted Net Shape Engineering 3, Proceedings of the LANE 2001, Erlangen, Germany, 2001, pp.211-222.

[10] M. Gäumann, C. Bezençon, P. Canalis, W. Kurz, Acta Materialia 49 (2001) 1051-1062.

DOI: 10.1016/s1359-6454(00)00367-0

[11] M. Gäumann, S. Henry, F. Cléton, J.-D. Wagnière, W. Kurz, Mater. Sci. Eng. A 271 (1999) 232-241.

[12] S. Mokadem, C. Bezençon, J.-M. Drezet, A. Jacot, J.-D. Wagnière, W. Kurz, Microstructure control during single crystal welding and deposition of Ni-base superalloys, in: M. M. S. The Minerals (Ed.) TMS annual meeting 2004, Charlotte, USA, 2004.
