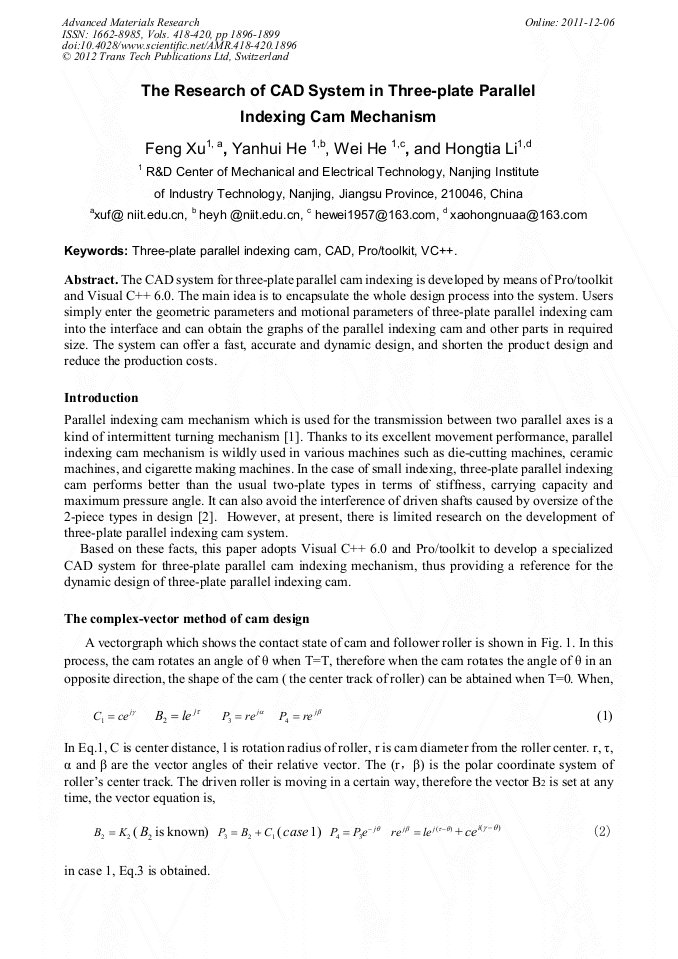

The Research of CAD System in Three-Plate Parallel Indexing Cam Mechanism

Abstract:

The CAD system for three-plate parallel cam indexing is developed by means of Pro/toolkit and Visual C++ 6.0. The main idea is to encapsulate the whole design process into the system. Users simply enter the geometric parameters and motional parameters of three-plate parallel indexing cam into the interface and can obtain the graphs of the parallel indexing cam and other parts in required size. The system can offer a fast, accurate and dynamic design, and shorten the product design and reduce the production costs.
