Synthesis, Electrical and Humidity Sensing Properties of BaTiO₃ Nanofibers via Electrospinning

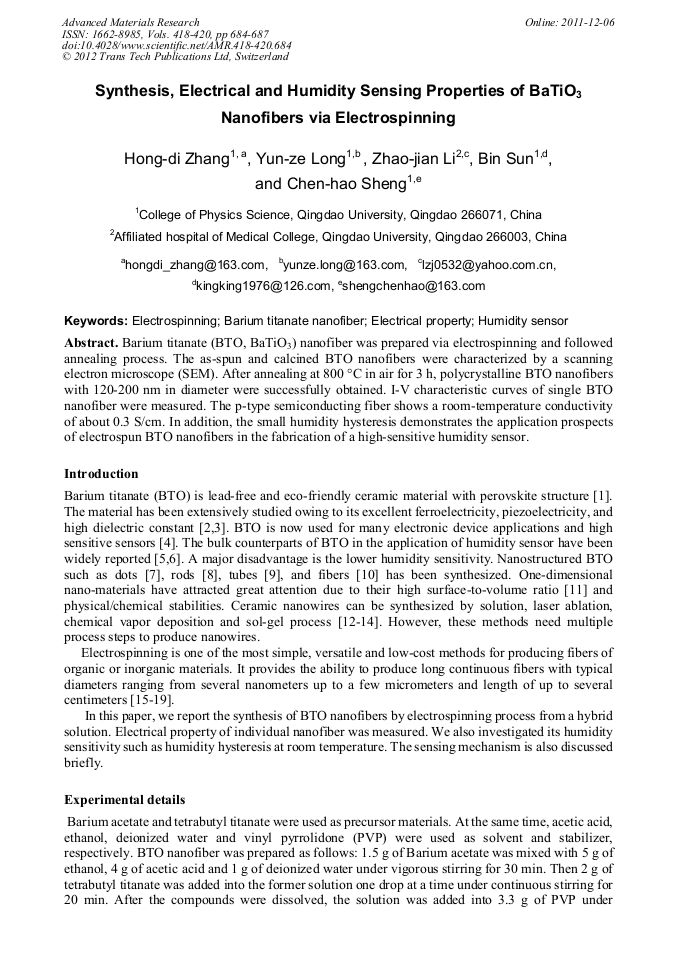

Article Preview

Abstract:

Barium titanate (BTO, BaTiO₃) nanofiber was prepared via electrospinning and followed annealing process. The as-spun and calcined BTO nanofibers were characterized by a scanning electron microscope (SEM). After annealing at 800 °C in air for 3 h, polycrystalline BTO nanofibers with 120-200 nm in diameter were successfully obtained. I-V characteristic curves of single BTO nanofiber were measured. The p-type semiconducting fiber shows a room-temperature conductivity of about 0.3 S/cm. In addition, the small humidity hysteresis demonstrates the application prospects of electrospun BTO nanofibers in the fabrication of a high-sensitive humidity sensor.

You might also be interested in these eBooks

Materials Processing Technology, ICAMMP2011

Info:

Periodical:

Advanced Materials Research (Volumes 418-420)

Pages:

684-687

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.418-420.684

Citation:

Cite this paper

Online since:

December 2011

Authors:

Hong Di Zhang, Yun-Ze Long, Zhao Jian Li, Bin Sun, Chen Hao Sheng

Keywords:

Barium Titanate Nanofiber, Electrical Properties, Electro-Spinning, Humidity Sensor

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] M.H. Frey, D.A. Payne, Phys. Rev. B Vol. 54 (1996), p.3158.

[2] Zgonik M, Bernasconi P, Duelli M, Schlesser R, Gunter P, Garrett MH, et al. Phys Rev B Vol. 50 (9) (1994), p.5941.

[3] Arlt G, Hennings D, Dewith G. J Appl Phys Vol. 58(4) (1985), p.1619.

[4] J. Wang, B.K. Xu, S.P. Ruan, S.P. Wang, Mater. Chem. Phys. Vol. 78 (2003), p.746.

[5] Wang, G. Song, J.Q. Qi, Ferroelectrics Vol. 355 (2007), p.165.

[6] J. Yuk, T. Troczynski, Sens. Actuators B: Chem. Vol. 94 (2003), p.290.

[7] J.J. Urban, W.S. Yun, Q. Gu, H. Park, J. Am. Chem. Soc. Vol. 124 (2002), p.1186.

[8] W.S. Yun, J.J. Urban, Q. Gu, H. Park, Nano Lett. Vol. 2 (2002), p.447.

[9] R. Meyer Jr., R.R. Shrout, S. Yoshikawa, J. Am. Ceram. Soc. Vol. 81 (1998), p.861.

[10] J. Yuh, J.C. Nino, W.M. Mater. Lett. Vol. 59 (2005), p.3645.

[11] D. Li, Y. Xia, Adv. Mater. Vol. 16 (2004), p.1151.

[12] Iijima, Nature Vol. 354 (1991), p.56.

[13] M. Morales, C.M. Lieber, Science Vol. 279 (1998), p.208.

[14] R. Martin, Science Vol. 266 (1994), p.1961.

[15] Han, S. Fan, Q. Li, Y. Hu, Science Vol. 277 (1997), p.1287.

[16] Chonenberger C,Vander Zande B M I, Fokkink L G J, et l. J Phys Chem B , Vol. 101 (1997), p.5497.

[17] Sigmund, J. Yuh, H. Park, V. Maneeratana, G. Pyrgiotakis, A. Daga, J. Taylor, J. C. Nino, J. Am. Ceram. Soc. Vol. 89 (2006), p.395.

DOI: 10.1111/j.1551-2916.2005.00807.x

[18] Li, J. T. McCann, Y. Xia, M. Marquez, J. Am. Ceram. Soc. Vol. 89 (2006), p.1861.

[19] Ramaseshan, S. Sundarrajan, R. Jose, S. Ramakrishna, J. Appl. Phys. Vol. 102 (2007), p.111101.
