Numerical Simulation of Elongational Flow in Polymer Vane Extruder

Abstract:

Polymer vane extruder is a new type of extrusion machine, whose plasticating and conveying method is based on elongational rheology. The vane extruder has many advantages over conventional plasticating method, such as shortening thermo-mechanical experience of plasticating and conveying, reducing the energy consumption of plasticating and conveying, and improving adaptability to diverse materials. Currently, research for characteristics of vane extruder is mostly focused on theoretical derivation and experiments. However, these methods lead to high consumption of time and energy, and cannot provide an intuitive view of the flow. In this paper, 3D finite element numerical simulation was performed to investigate the flow in one of the vane units with POLYFLOW. The elongation flow was investigated by analyzing velocity field, pressure field, local-shear-rate distribution and mixing index distribution. The results show that numerical simulation is an efficient method to optimize process parameters and the structure of vane extruder.

You might also be interested in these eBooks

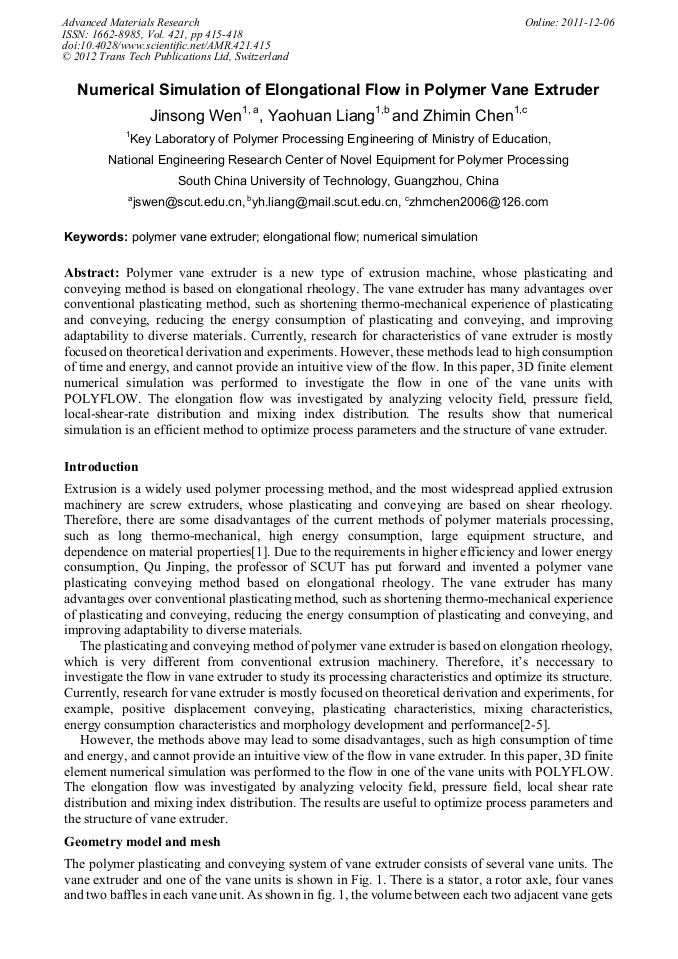

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 421)

Pages:

415-418

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.421.415

Citation:

Cite this paper

Online since:

December 2011

Authors:

Jin Song Wen, Yao Huan Liang, Zhi Min Chen

Keywords:

Elongational Flow, Numerical Simulation, Polymer Vane Extruder

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Qu Jinping. Polymer Material Plasticating and Conveying Method and Equipment Based on Elongational Rheology[P]. China: 200810026054, 2008.1.25

Google Scholar

[2] Wang Yangang. Study on Positive Displacement Conveying and Plasticating Characteristics of Polymer Vane Extruder [D]. Guangzhou: South China University of Technology, (2009)

Google Scholar

[3] Yang Zhitao. Study on Melt Positive Displacement Conveying and Mixing Characteristics of Polymer Vane Extruder [D]. Guangzhou: South China University of Technology, (2010)

Google Scholar

[4] Zhu Zhenxuan. Energy Consumption Characteristics of Simulation and Study on Uniaxial Vane Extruder [D]. Guangzhou: South China University of Technology, (2010)

Google Scholar

[5] Zhang Xin. Morphology Development and Performance Study of the Polymer in the Single Shaft Vane Extruder [D]. Guangzhou: South China University of Technology, (2010)

Google Scholar

[6] H.-H. Yang and I. Manas-Zloczower. Analysis of mixing. In Int. Polymer processing, IX, 1994.

Google Scholar

[7] FLUENT Inc. POLYFLOW 3.10 User's Guide. (2003)

Google Scholar
