Design and Simulation of the Drill Groove Squeegee Roller's Profile

Abstract:

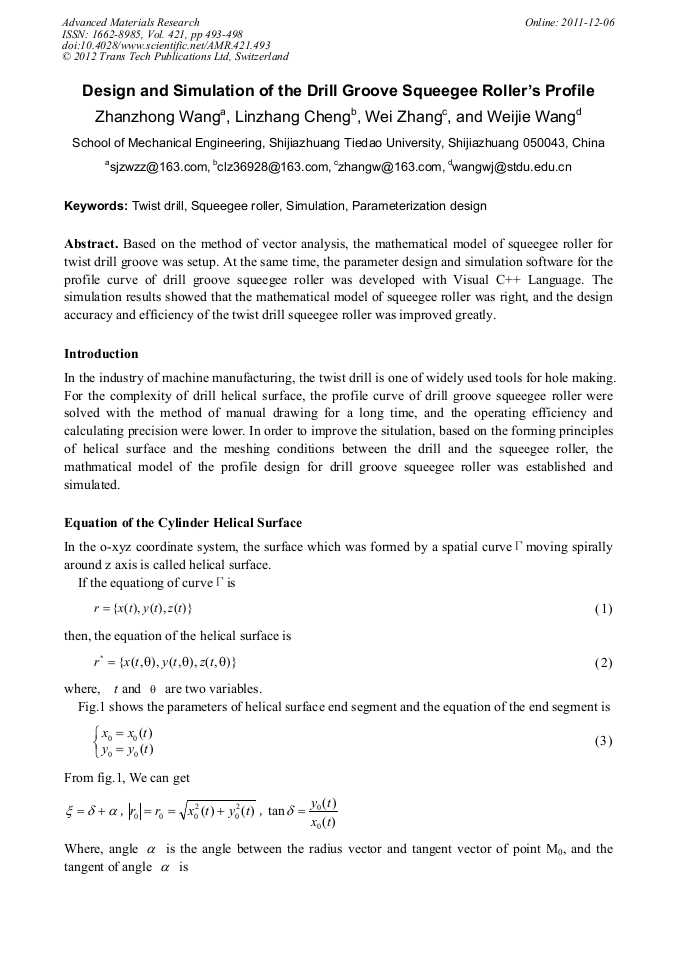

Based on the method of vector analysis, the mathematical model of squeegee roller for twist drill groove was setup. At the same time, the parameter design and simulation software for the profile curve of drill groove squeegee roller was developed with Visual C++ Language. The simulation results showed that the mathematical model of squeegee roller was right, and the design accuracy and efficiency of the twist drill squeegee roller was improved greatly.
