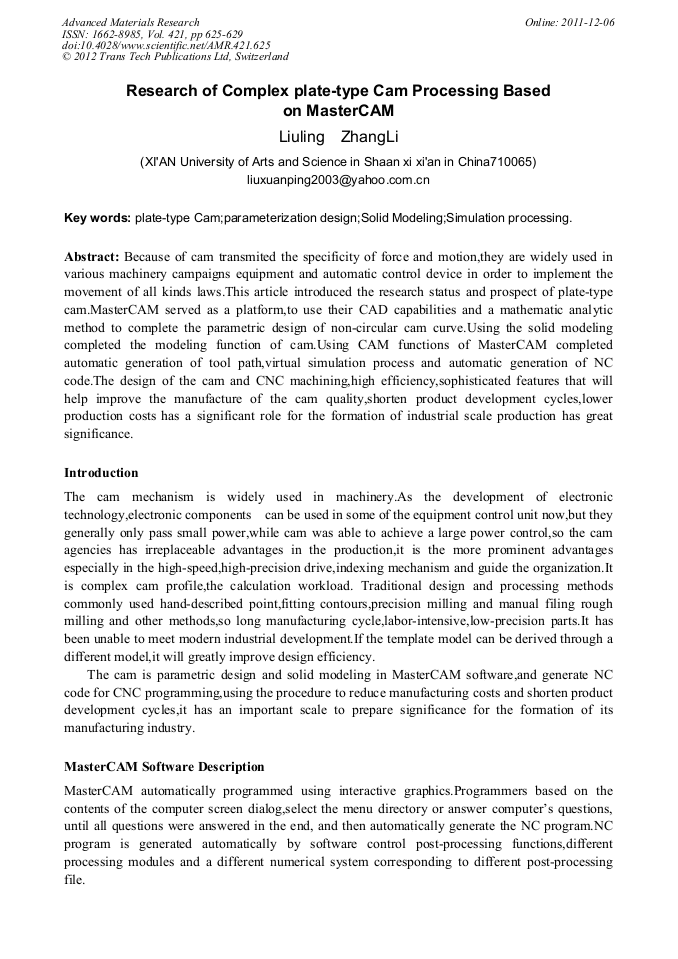

Research of Complex Plate-Type Cam Processing Based on MasterCAM

Abstract:

Because of cam transmited the specificity of force and motion,they are widely used in various machinery campaigns equipment and automatic control device in order to implement the movement of all kinds laws.This article introduced the research status and prospect of plate-type cam.MasterCAM served as a platform,to use their CAD capabilities and a mathematic analytic method to complete the parametric design of non-circular cam curve.Using the solid modeling completed the modeling function of cam.Using CAM functions of MasterCAM completed automatic generation of tool path,virtual simulation process and automatic generation of NC code.The design of the cam and CNC machining,high efficiency,sophisticated features that will help improve the manufacture of the cam quality,shorten product development cycles,lower production costs has a significant role for the formation of industrial scale production has great significance.

• Periodical: Advanced Materials Research (Volume 421)
• Pages: 625-629
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.421.625
• Online since: December 2011
• Authors: Ling Liu, Li Zhang
• Keywords: Parameterization Design, Plate-Type Cam, Simulation Processing, Solid Modeling

References

[1] Qian TANG, Linqing PEI, Hanson g XIAO.Numerical and experimental analysis of quenching process for cam manufacturing. J. Cent. South Univ. Technol. (2010) 17: 529-536

DOI: 10.1007/s11771-010-0518-0

[2] CHENG Wei, ZHANG YUE-Ming, BU Fan-hua.Study on the CNC processing of globoidal cam. Machinery Design & Manufacture,2011. In Chinese.

[3] Faping ZHANG, Jiping LU, Shuiyuan TANG, Houfang SUN, and Li JIAO.Locating Error Considering Dimensional Errors Modeling for Multistation Manufacturing System.CHINESE JOURNAL OF MECHANICAL ENGINEERING. Vol. 23,No. 6,2010. In Chinese.

DOI: 10.3901/cjme.2010.06.765

[4] Tesar, Matthew G K. The dynamic synthesis, analysis, and design of modeled cam system. Lexington Boods,2003.

[5] AD Holowenko, As Hall．Cam design by computer.Machine Design, (2005)

[6] Fan Y．Chen．Mechanics and design of cam mechanisms．Pergamon Press,2001.

[7] ED．Furman．Cams elementary and advanced.Holm Wiley and Son New York,2001.

[8] James V.Valentino. Introduction to Computer Numerical Control. Higher Education Press.2008.2.

[9] Youdong Chen, Hongxing Wei, Kai Sun, Miao Liu,and Tianmiao Wang.Algorithm for Smooth S-curve Feedrate Profiling Generation. Chinese Journal of Mechanical Engineering.Vol.24, No.2, 2011. In Chinese.

DOI: 10.3901/cjme.2011.02.237
