Study on the Natural Vibrations of the Rubber Bearings

Abstract:

The noise of the rubber bearing is closely related to its vibration characteristics, thereby, the study of the natural vibrations is of an important significance for the safety of the warships. Based on the finite element method, this paper analyzes the effect of the structural parameters and material properties on the natural vibrations of the rubber bearings, the numerical results show that in the low frequencies its vibration modes mainly present the shear deformations in its center of the rubber strip. The influences of the variations in the thickness of the built-in steel bars on the natural frequencies are larger than that in the width, and the variations of rubber materials’ mechanical properties on the natural frequencies are remarkable. Thus, increasing the elastic modulus of rubber material will effectively enlarge the value of the natural frequencies, as well as improve their intensive distribution.

You might also be interested in these eBooks

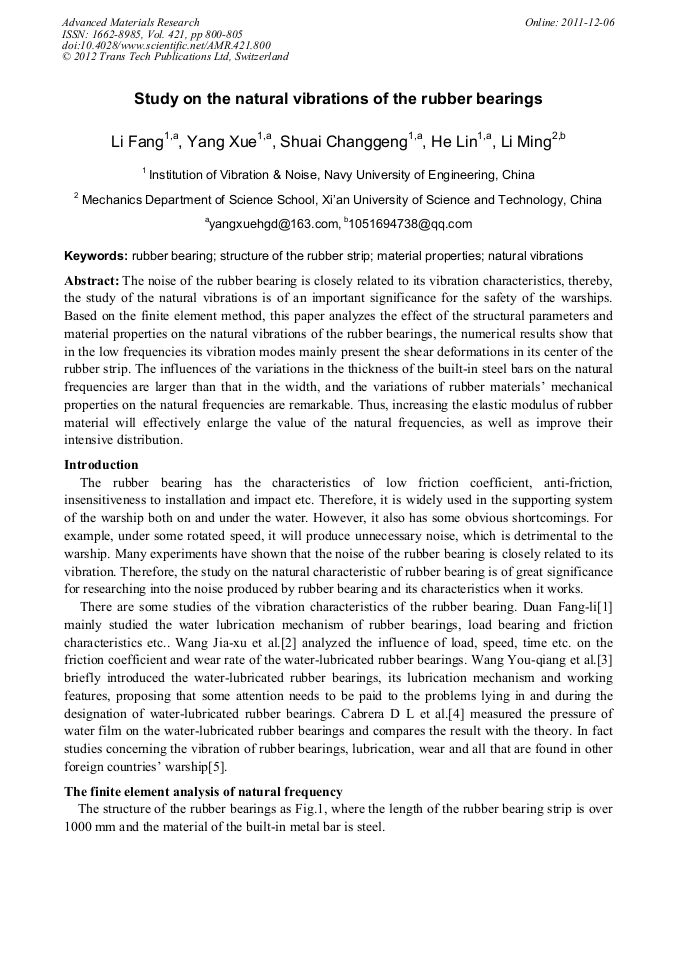

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 421)

Pages:

800-805

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.421.800

Citation:

Cite this paper

Online since:

December 2011

Authors:

Fang Li, Xue Yang, Chang Geng Shuai, Lin He, Ming Li

Keywords:

Material Property, Natural Vibrations, Rubber Bearing, Structure of the Rubber Strip

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Duan Fangli. The water lubrication mechanism of rubber bearing[D]. Chongqing:: Ph. D Dissertation of Chongqing University.

Google Scholar

[2] Wang Jiaxu, Chen Zhan, Qin Datong. Study on the friction and wear characteristicof water lubricated rubber bearing[J].Lubrication and seal,2002, (4):21-23.

Google Scholar

[3] Wang Youqiang, Song Ling, Li Hongqi. Design of the water-lubricated rubber bearing[J]. Lubrication and seal, 2003,(02):21-22.

Google Scholar

[4] Cabrera D L, Allanson D R, Tridimas Y D, Woolley N. H. Film pressure distribution in water-lubricated rubber journal bearings. Proceedings of the Institution of Mechanical Engineers, Part J: Journal of Engineering Tribology, 2005, 219(2): 125-132.

DOI: 10.1243/135065005x9754

Google Scholar

[5] Harish Hirani, Manish Verma. Tribological study of elastomeric bearings for marine propeller shaft system Tribology International.2008（9）:1-12.

DOI: 10.1016/j.triboint.2008.07.014

Google Scholar
