10Gb/s RS-BCH Concatenated Encoder with Pipelined Strategies for Fiber Communication

Abstract:

This paper presents a 10Gb/s concatenated encoder compatible with the protocol of G.975. To achieve the high data rate, 8 RS encoders work based on the pipelined pattern. After the interleaving realized with 8 RAM blocks, the output of RS encoders are sent to 64 BCH encoders which work parallel. This concatenated encoder has been implemented in Xilinx Vertex5 FPGA, and the measurement results show that the data rate of 10Gb/b can be realized under the working frequency of 156MHz. About 9711 registers, 6984 LUTs and 40 Block-RAMs are utilized for the whole encoder.

You might also be interested in these eBooks

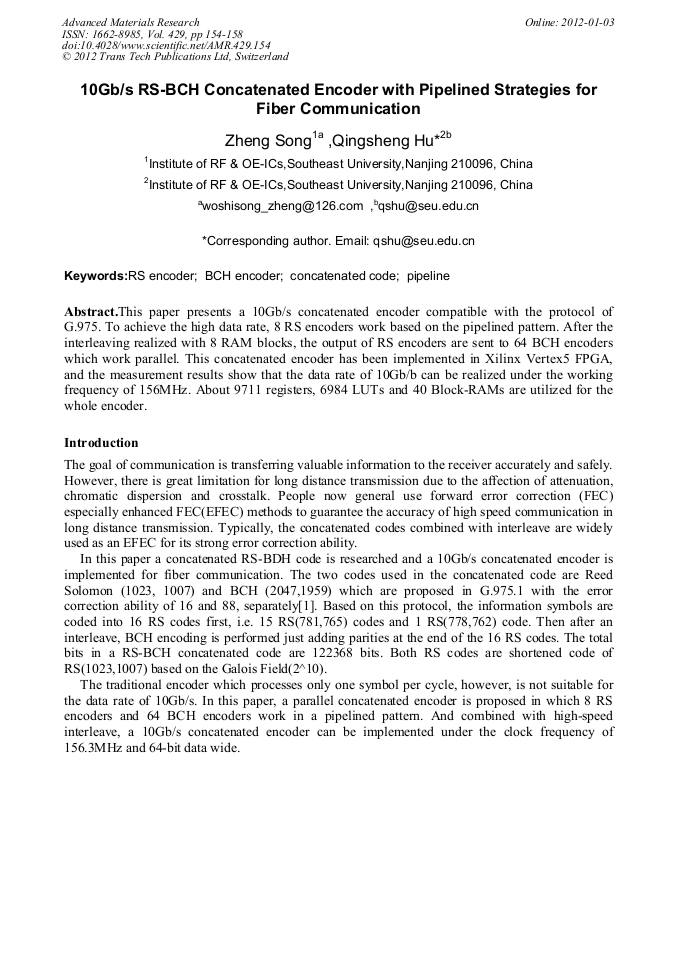

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 429)

Pages:

154-158

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.429.154

Citation:

Cite this paper

Online since:

January 2012

Authors:

Zheng Song, Qing Sheng Hu

Keywords:

BCH Encoder, Concatenated Code, Pipeline, RS Encoder

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] ITU. Forward error correction for high bit-rate DWDM submarine systems.G. 975, (2004).

Google Scholar

[2] Wang Xinmei, theory and methodology of error correcting code. Second edition. Xi'an: Xi-Dian University Press, (2001).

Google Scholar

[3] Gu Yanli, Zhou Hongmin, Design and Realization of High Speed RS Codec Based on FPGA, Communication & Audio and Video, NO. 1, (2008).

Google Scholar

[4] Zhang Jun, Concatenated Coding Techniques and Implementation Research for Optical[D]. Nanjing: Southeast University, (2006).

Google Scholar

[5] Wang Jianxin, Concatenated encoding and decoding strategy and their FPGA-oriented realization for a certain portable satellite communication terminal[M]. Nanjing: Nanjing Ligong University, (2006).

Google Scholar

[6] Dai peng, Research and Design on Concatenated Code in Wireless Digital Communication[M], Wuhan, Wuhan Ligong University, (2008).

Google Scholar

[7] High-Speed Architectures for Reed–Solomon Decoders Dilip V. Sarwate, Fellow, IEEE, and Naresh R. Shanbhag, Member, IEEE transactions on VLSI systems, vol. 9, NO. 5, October (2001).

DOI: 10.1109/92.953498

Google Scholar

[8] Zhang yi, Cui Yongjun, Yang Xiaoya, Mao Deming, Design and Realization of RS Encoder Based on FPGA, Journal of Projectiles, Rockets, Missiles and Guidance, NO. 5, (2009).

Google Scholar
