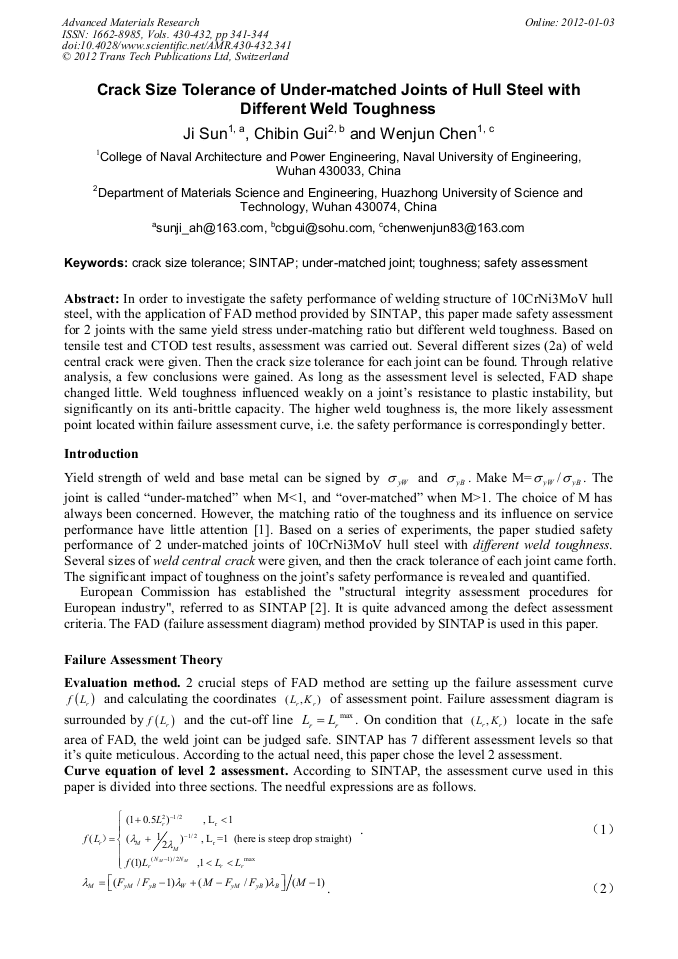

Crack Size Tolerance of Under-Matched Joints of Hull Steel with Different Weld Toughness

Abstract:

In order to investigate the safety performance of welding structure of 10CrNi3MoV hull steel, with the application of FAD method provided by SINTAP, this paper made safety assessment for 2 joints with the same yield stress under-matching ratio but different weld toughness. Based on tensile test and CTOD test results, assessment was carried out. Several different sizes (2a) of weld central crack were given. Then the crack size tolerance for each joint can be found. Through relative analysis, a few conclusions were gained. As long as the assessment level is selected, FAD shape changed little. Weld toughness influenced weakly on a joint’s resistance to plastic instability, but significantly on its anti-brittle capacity. The higher weld toughness is, the more likely assessment point located within failure assessment curve, i.e. the safety performance is correspondingly better.

You might also be interested in these eBooks

Frontiers of Advanced Materials and Engineering Technology

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 430-432)

Pages:

341-344

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.430-432.341

Citation:

Cite this paper

Online since:

January 2012

Authors:

Ji Sun, Chi Bin Gui, Wen Jun Chen

Keywords:

Crack Size Tolerance, Safety Assessment, SINTAP, Toughness, Under-Matched Joint

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Andrew H. Sherry: Advances and Challenges in Structural Integrity. Applied Mechanics and Materials, Vol. 7(2007), pp.13-22.

Google Scholar

[2] WEM/SINTAP/PROC_7/CONTENTS REGP: SINTAP Procedure (2000).

Google Scholar

[3] British Energy Generation Ltd: Stress Intensity Factor and Limit Load Press Handbook (1998).

Google Scholar

[4] Yun Jae Kim, Robert A. Ainsworth, and Uwe Zerbst: SINTAP Defect Assessment Procedure for Strength Mis-matched Structures. Engineering Fracture Mechanics, Vol. 67(2000), pp.529-546.

DOI: 10.1016/s0013-7944(00)00072-2

Google Scholar

[5] Steve K. Bate, P. John Bouchard: The Validation of Weld Residual Stresses for Use in Structural Integrity Assessment. Applied Mechanics and Materials, Vol. 70(2011), pp.297-302.

DOI: 10.4028/www.scientific.net/amm.70.297

Google Scholar

[6] Caiyan Deng, Yufeng Zhang, and Lixing Huo: Safety Assessment Used for Welded Pipeline Based on SINTAP. Welding, Vol. 9(2005), pp.17-20.

Google Scholar
