Strip Casting of Al-25%Si Alloy

Toshio Haga; Hideto Harada; Shinji Kumai; Hisaki Watari

doi:10.4028/www.scientific.net/AMR.430-432.669

Paper Titles

Numerical Simulation of Spraying and Jointing for Polyurea Spraying Gun
p.651

Shape-Controlled Pd Nanoparticles in the Mixed Surfactants by Ultrasonic Irradiation
p.655

Prediction of Cutting Consumption Based on Optimization-Making RBF Artificial Neural Network
p.659

Model and Analysis of Flexural Properties of Al₂O₃ Ceramic Prepared by Centrifugal Slip Casting Using BP Neural Network Model
p.664

Strip Casting of Al-25%Si Alloy
p.669

Construction of a Museum: An Example of Cultural Education
p.673

Controlled Drug Release from Biodegradable Bone Fillers
p.677

Effects of Mn Addition and Addition Sequence on Carbon Inoculation of Mg-3%Al Alloy
p.681

Effect of Ultra High Molecular Weight Polyacrylonitrile (UHMW-PAN) on the Rheological Behavior of PAN/DMSO Solution
p.687

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 430-432Strip Casting of Al-25%Si Alloy

Strip Casting of Al-25%Si Alloy

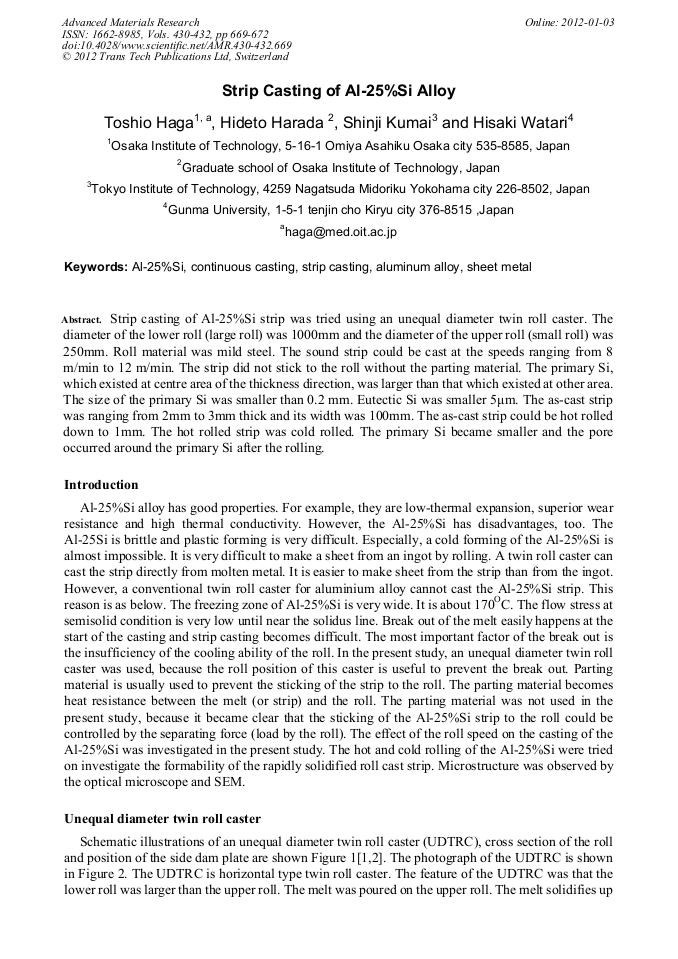

Abstract:

Strip casting of Al-25%Si strip was tried using an unequal diameter twin roll caster. The diameter of the lower roll (large roll) was 1000mm and the diameter of the upper roll (small roll) was 250mm. Roll material was mild steel. The sound strip could be cast at the speeds ranging from 8 m/min to 12 m/min. The strip did not stick to the roll without the parting material. The primary Si, which existed at centre area of the thickness direction, was larger than that which existed at other area. The size of the primary Si was smaller than 0.2 mm. Eutectic Si was smaller 5μm. The as-cast strip was ranging from 2mm to 3mm thick and its width was 100mm. The as-cast strip could be hot rolled down to 1mm. The hot rolled strip was cold rolled. The primary Si became smaller and the pore occurred around the primary Si after the rolling.
