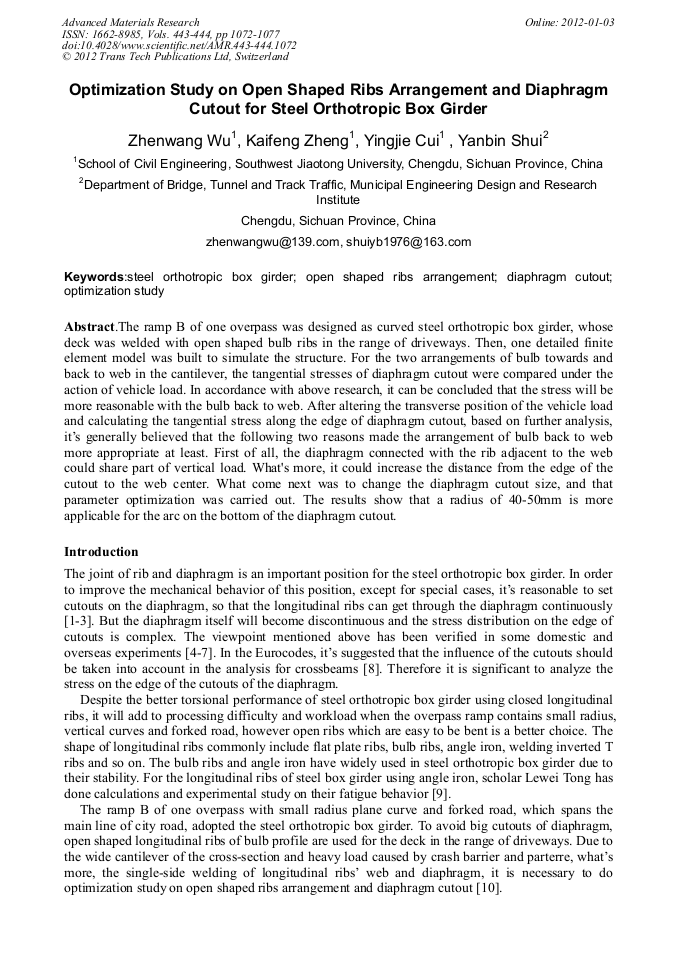

Optimization Study on Open Shaped Ribs Arrangement and Diaphragm Cutout for Steel Orthotropic Box Girder

Abstract:

The ramp B of one overpass was designed as curved steel orthotropic box girder, whose deck was welded with open shaped bulb ribs in the range of driveways. Then, one detailed finite element model was built to simulate the structure. For the two arrangements of bulb towards and back to web in the cantilever, the tangential stresses of diaphragm cutout were compared under the action of vehicle load. In accordance with above research, it can be concluded that the stress will be more reasonable with the bulb back to web. After altering the transverse position of the vehicle load and calculating the tangential stress along the edge of diaphragm cutout, based on further analysis, it’s generally believed that the following two reasons made the arrangement of bulb back to web more appropriate at least. First of all, the diaphragm connected with the rib adjacent to the web could share part of vertical load. What's more, it could increase the distance from the edge of the cutout to the web center. What come next was to change the diaphragm cutout size, and that parameter optimization was carried out. The results show that a radius of 40-50mm is more applicable for the arc on the bottom of the diaphragm cutout.

• Periodical: Advanced Materials Research (Volumes 443-444)
• Pages: 1072-1077
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.443-444.1072
• Online since: January 2012
• Authors: Zhen Wang Wu, Kai Feng Zheng, Ying Jie Cui, Yan Bin Shui
• Keywords: Diaphragm Cutout, Open Shaped Ribs Arrangement, Optimization Study, Steel Orthotropic Box Girder

References

[1] Dongsheng Qian, On fatigue of steel orthotropic deck structure comments on researches for strengthening the Severn Crossing in U.K., Bridge Construction, 1996(2), pp.7-13.

[2] Xinxin Zhao, Xiaoguang Liu, Yuling Zhang, New advance of design parameter and structure details of orthotropic deck, Steel Construction, Vol. 25, NO. 136, Aug. 2010, pp.1-7.

[3] Chunsheng Wang, Yacheng Feng, Review of fatigure research for orthotropic steel bridge decks, Steel Construction, Vol. 24, NO. 124, Sep. 2009, pp.10-13, 32.

[4] Samia Abdou, Wuzhen Zhang, John W. Fisher. Orthotropic Deck Fatigue Investigation At Triborough Bridge-New York, Journal of the Transportation Research Board, Transportation Research Board of the National Academies, Vol. 1845 / 2003, Jan., 2007, pp.153-162.

DOI: 10.3141/1845-17

[5] Expertengespräch - Instandsetzung orthotroper Fahrbahnplatten[R], Bundesanstalt für Straßenwesen, Bergisch Gladbach, 19. Oktober (2005).

[6] Tsakopoulos, P. A., Fisher, J. W. Full-scale fatigue tests of steel orthotropic decks for the Williamsburg Bridge, Journal of Bridge Engineering, ASCE, Volume 8, Issue 5, September/October 2003, pp.323-333.

DOI: 10.1061/(asce)1084-0702(2003)8:5(323)

[7] Yuling Zhang, Xuezhong Xin, Xiaoguang Liu, Analysis on fatigue design method of orthotropic floor details in steel bridge, Steel Construction, Vol. 24, May 2005, pp.33-37.

[8] CEN, EN 1993-2: 2006(E), Eurocode 3: Design of steel structures - Part 2: Steel Bridges, European Committee for Standardization, Oct. 2006, pp.38-40.

[9] Lewei Tong, Fatigue of Orthotropic Steel Bridge Decks, PhD Dissertation, Tongji University, Oct. (1995).

[10] Kaifeng Zheng, Zhenwang Wu, Yingjie Cui, and etc, Design analysis and consultation report on steel box girders of the north ramp and 3rd ring viaduct in the Shahebao region, Southwest Jiaotong University, Chengdu, Sep. (2010).

[11] General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China (AQSIQ), GB/T 9945-2001: Hot –rolled bulb flat steel, May 2002, pp.2-4.

[12] Ministry of Communications of the People's Republic of China, JTG D60-2004: General Code for Design of Highway Bridges and Culverts, China Communications Press, Oct. 2004, p.26.

[13] Hacik Erzurumlu. Fatigue of Orthotropic Steel Decks, Journal of the Structural Division, Vol. 98, No. 4, Apr. 1992, pp.813-830.

DOI: 10.1061/jsdeag.0003201
