A Novel Miniature Printed UWB Monopole Patch Antenna

Abstract:

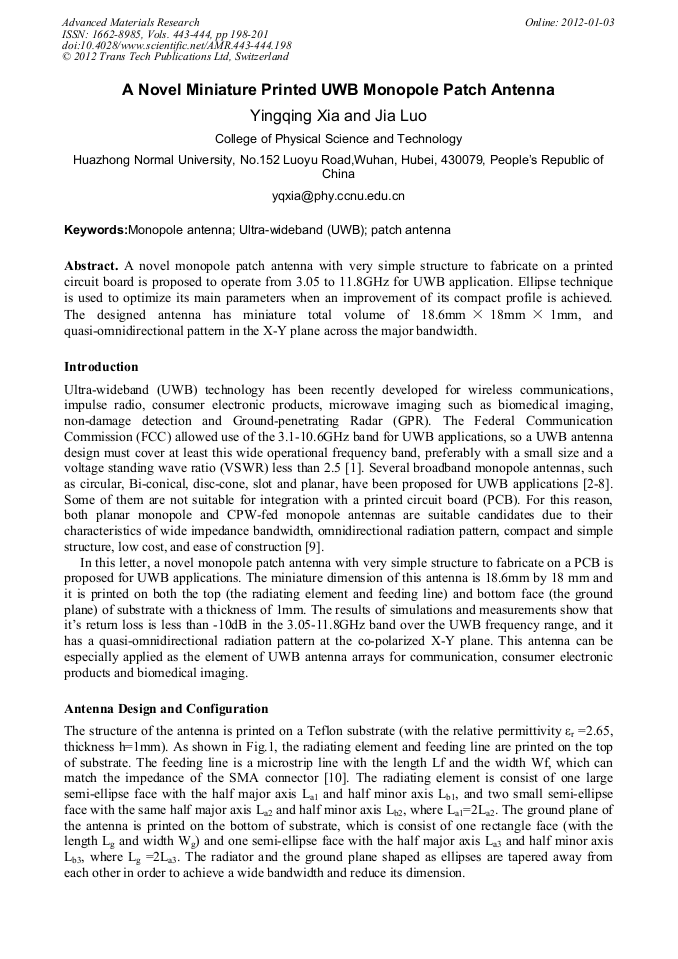

Article Preview

A novel monopole patch antenna with very simple structure to fabricate on a printed circuit board is proposed to operate from 3.05 to 11.8GHz for UWB application. Ellipse technique is used to optimize its main parameters when an improvement of its compact profile is achieved. The designed antenna has miniature total volume of 18.6mm×18mm×1mm, and quasi-omnidirectional pattern in the X-Y plane across the major bandwidth.

Info:

Periodical:

Advanced Materials Research (Volumes 443-444)

Edited by:

Li Jian

Pages:

198-201

DOI:

10.4028/www.scientific.net/AMR.443-444.198

Citation:

Y. Q. Xia and J. Luo, "A Novel Miniature Printed UWB Monopole Patch Antenna", Advanced Materials Research, Vols. 443-444, pp. 198-201, 2012

Online since:

January 2012
