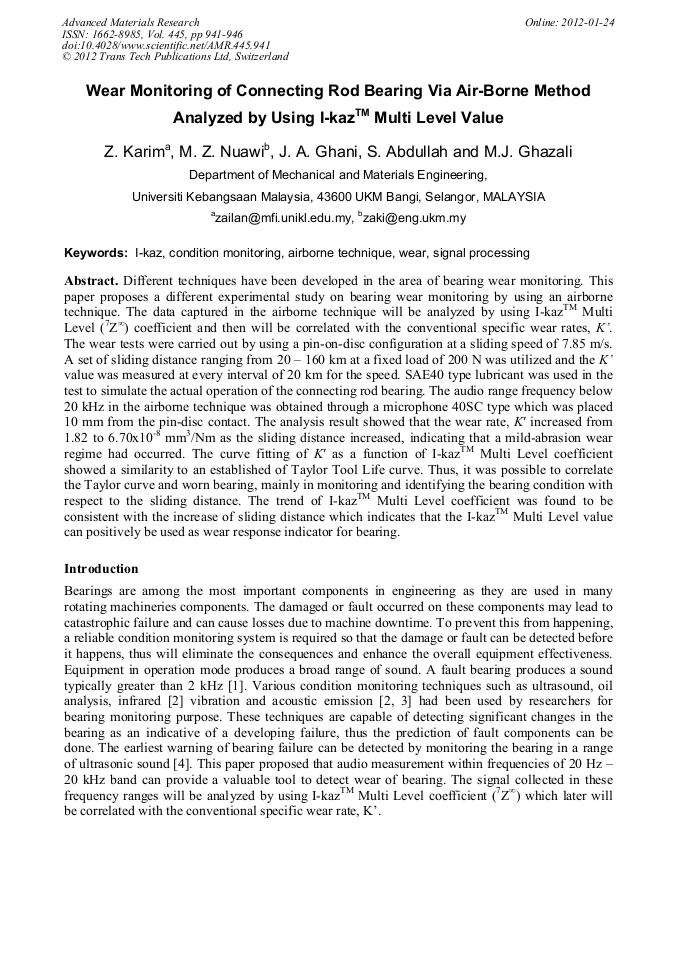

Wear Monitoring of Connecting Rod Bearing via Air-Borne Method Analyzed by Using I-Kaz^TM Multi Level Value

Abstract:

Different techniques have been developed in the area of bearing wear monitoring. This paper proposes a different experimental study on bearing wear monitoring by using an airborne technique. The data captured in the airborne technique will be analyzed by using I-kaz^TM Multi Level (⁷Z) coefficient and then will be correlated with the conventional specific wear rates, K. The wear tests were carried out by using a pin-on-disc configuration at a sliding speed of 7.85 m/s. A set of sliding distance ranging from 20 160 km at a fixed load of 200 N was utilized and the K value was measured at every interval of 20 km for the speed. SAE40 type lubricant was used in the test to simulate the actual operation of the connecting rod bearing. The audio range frequency below 20 kHz in the airborne technique was obtained through a microphone 40SC type which was placed 10 mm from the pin-disc contact. The analysis result showed that the wear rate, K increased from 1.82 to 6.70x10^-8 mm³/Nm as the sliding distance increased, indicating that a mild-abrasion wear regime had occurred. The curve fitting of K as a function of I-kaz^TM Multi Level coefficient showed a similarity to an established of Taylor Tool Life curve. Thus, it was possible to correlate the Taylor curve and worn bearing, mainly in monitoring and identifying the bearing condition with respect to the sliding distance. The trend of I-kaz^TM Multi Level coefficient was found to be consistent with the increase of sliding distance which indicates that the I-kaz^TM Multi Level value can positively be used as wear response indicator for bearing.

• Periodical: Advanced Materials Research (Volume 445)
• Pages: 941-946
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.445.941
• Online since: January 2012
• Authors: Zailan Karim, Mohd Zaki Nuawi, Jaharah A. Ghani, Shahrum Abdullah, Mariyam Jameelah Ghazali
• Keywords: Airborne Technique, Condition Monitoring, I-Kaz, Signal Processing, Wear

References

[1] Randall, R.B., 2001. Bearing Diagnostics in Helicopter Gearboxes. In the Proceedings of the Condition Monitoring and Diagnostic Engineering Management, pp: 1-11.

DOI: 10.1016/b978-008044036-1/50001-9

[2] Janjarasjitt, S., H. Ocak, and K.A. Loparo, 2008. Bearing condition diagnosis and prognosis using applied nonlinear dynamical analysis of machine vibration signal. Journal of Sound and Vibration, 317 (1-2): 112-126.

DOI: 10.1016/j.jsv.2008.02.051

[3] Kaewkongka, T., Y.H.J. Au, R.T. Rakowski and B. E Jones, 2001. Condition monitoring of rotor dynamic machinery using acoustic emission and fuzzy c-mean clustering technique. In the Proceedings of the Condition Monitoring and Diagnostic Engineering Management, pp: 49-56.

DOI: 10.1016/b978-008044036-1/50006-8

[4] Bandes, A. S, 2003. Ultrasonics: Industry's Multipurpose Maintenance Technology, Sensor Technology and Design Elmsford, NY: UE Systems, Inc.

[5] Nuawi M.Z., M.J.M. Nor, N. Jamaludin, S. Abdullah, F. Lamin and C.K.E. Nizwan, 2008. Development of Integrated Kurtosis-Based Algorithm for Z-Filter Technique. Journal of Applied Sciences, 8: 1541-1547.

DOI: 10.3923/jas.2008.1541.1547

[6] Bressan, J.D., Daros, D.P., Sokolowski, A., Mesquita, R.A. & Barbosa, C.A. 2008. Influence of hardness on the wear resistance of 17-4 PH stainless steel evaluated by the pin-on-disc testing. Journal of Materials Processing Technology 205(1-3): 353-359.

DOI: 10.1016/j.jmatprotec.2007.11.251

[7] Zhao, H., Barber, G.C. & Liu, J. 2001. Friction and wear in high speed sliding with and without electrical current. Wear 249(5-6): 409-414.

DOI: 10.1016/s0043-1648(01)00545-2

[8] Pürçek, G., Savaskan, T., Küçükömeroglu, T. & Murphy, S. 2002. Dry sliding friction and wear properties of zinc based alloys. Wear 252(11-12): 894-901.

DOI: 10.1016/s0043-1648(02)00050-9

[9] Rabinowicz, E., 1995. Friction and Wear of Materials. John Wiley & Sons.

[10] M. Z. Nuawi, Taib. I. Mohamad, M.F.H. Hussin, S. Abdullah, R. Zulkifli and M.K. Zakaria. Preliminary Study of Condition-Based Monitoring (CBM) on Automotive Gearbox Using Ultrasonic Signal. World Applied Sciences Journal 9(2): 118-126, (2010).

[11] M. Z. Nuawi, S. Abdullah, F. Lamin, A. R. Ismail and M. J. M. Nor. Correlation of Structure-borne Sound Signal and Internal Piping Surface Condition using Integrated Kurtosis-based Algorithm for Z-notch filter technique (I-kaz). The Sixteenth International Congress on Sound and Vibration, (2009).

[12] Lamin, F., Nuawi, M.Z., Abdullah, S. & Nizwan, C.K.E. 2007. Monitoring of tool life using integrated kurtosis-based algorithm for Z-filter technique. Proceedings. of the Noise, Vibration and Comfort 2007, hlm. 29-36.

DOI: 10.3923/jas.2008.1541.1547

[13] Lamin, F., Nuawi, M.Z., Soon, A.K., Abdullah, S. & Ghani, J.A. 2008. A novel correlation method for machining signals denoising. Proceedings of the International Conference on Mechanical and Manufacturing Engineering.

[14] Ghazali, M.J., M.Z. Nuawi and N.I.I. Mansor, 2009. Low Cost Wear Monitoring of Bearing Shell in Connecting Rod via I-kaz Method. Advanced Materials Research 76: 702-707.

DOI: 10.4028/www.scientific.net/amr.76-78.702
