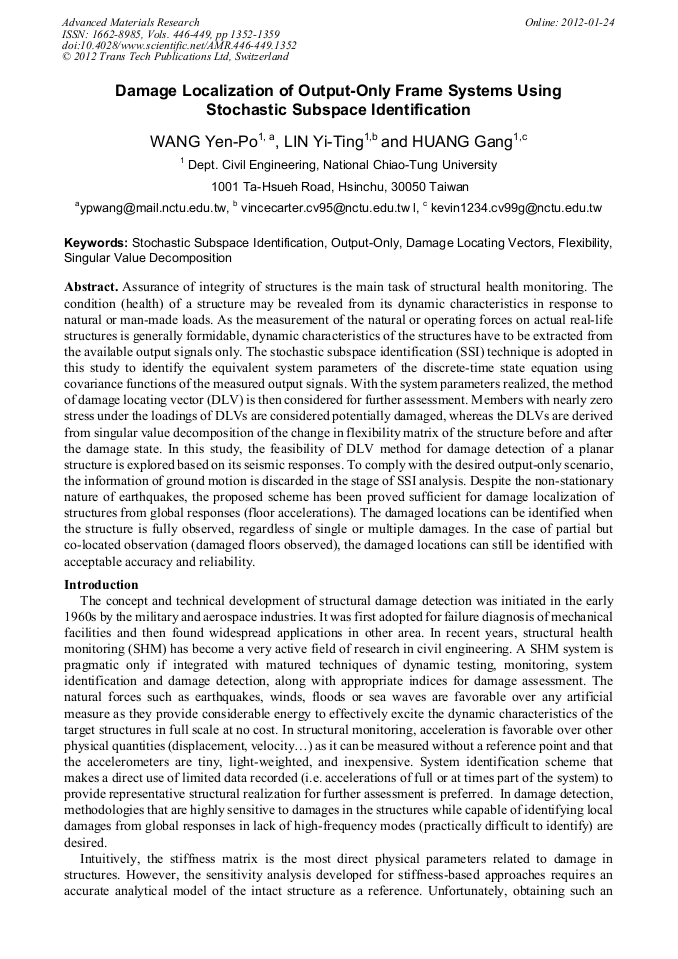

Damage Localization of Output-Only Frame Systems Using Stochastic Subspace Identification

Abstract:

Assurance of integrity of structures is the main task of structural health monitoring. The condition (health) of a structure may be revealed from its dynamic characteristics in response to natural or man-made loads. As the measurement of the natural or operating forces on actual real-life structures is generally formidable, dynamic characteristics of the structures have to be extracted from the available output signals only. The stochastic subspace identification (SSI) technique is adopted in this study to identify the equivalent system parameters of the discrete-time state equation using covariance functions of the measured output signals. With the system parameters realized, the method of damage locating vector (DLV) is then considered for further assessment. Members with nearly zero stress under the loadings of DLVs are considered potentially damaged, whereas the DLVs are derived from singular value decomposition of the change in flexibility matrix of the structure before and after the damage state. In this study, the feasibility of DLV method for damage detection of a planar structure is explored based on its seismic responses. To comply with the desired output-only scenario, the information of ground motion is discarded in the stage of SSI analysis. Despite the non-stationary nature of earthquakes, the proposed scheme has been proved sufficient for damage localization of structures from global responses (floor accelerations). The damaged locations can be identified when the structure is fully observed, regardless of single or multiple damages. In the case of partial but co-located observation (damaged floors observed), the damaged locations can still be identified with acceptable accuracy and reliability.

• Periodical: Advanced Materials Research (Volumes 446-449)
• Pages: 1352-1359
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.446-449.1352
• Online since: January 2012
• Authors: Yen Po Wang, Yi Ting Lin, Gang Huang
• Keywords: Damage Locating Vectors, Flexibility, Output-only, Singular Value Decomposition (SVD), Stochastic Subspace Identification

References

[1] Hoyos, A. and Aktan, A.E. Regional, "Identification of Engineered Structures Based on Impact Induced Transient Response", Research Report No.87-1, Louisiana State University (1987).

[2] Pandey, A. K. and Biswas, M. "Damage Detection in Structures Using Changes in Flexibility", Journal of Sound and Vibration , (169) pp.3-17﹙1994﹚.

DOI: 10.1006/jsvi.1994.1002

[3] Pandey, A.K. and Biswas, M. "Damage Diagnosis of Truss Structures by Estimation of Flexibility Change", The International Journal of Analytical and Experimental Modal Analysis, Vol.10, No.2 , pp.104-117 (1995).

[4] Bernal, D. ,"Load Vectors for Damage Localization", Journal of Engineering Mechanics, ASCE, 128 (1), pp.7-14 (2002).

[5] Gao, Y., Ruiz-Sandoval, M. and Spencer, B.F. "Flexibility-based Damage Localization Employing Ambient Vibration," 15th ASCE Engineering Mechanics Conference, June 2-5, Columbia University, New York (2002).

[6] Gao, Y., Spencer, B.F. and Bernal, D. Experimental Verification of the Flexibility-Based Damage Locating Vector Method. Journal of Engineering Mechanics, ASCE, (133) pp.1043-1049, (2007).

DOI: 10.1061/(asce)0733-9399(2007)133:10(1043)

[7] Huynh, D., He, J. and Tran, D. Damage Location Vector: A Non-destruction Structural Damage Detection Technique [J] . Computers and Structures (83), pp.2353-2367 (2005).

DOI: 10.1016/j.compstruc.2005.03.029

[8] Duan, Z., Yan, G., Ou, J. and Spencer, B.F.," Damage localization in ambient vibration by constructing proportional flexibility matrix", Journal of Sound and Vibration (284) pp.455-466 (2005).

DOI: 10.1016/j.jsv.2004.06.046

[9] Van Overschee, P., and De Moor, B., "Subspace Identification for Linear Systems: Theory Implementation Applications", Kluwer Academic Publishers, Dordrecht, the Netherlands (1996).

DOI: 10.1007/978-1-4613-0465-4_6

[10] Bilge Alicioglu and Hilmi Lus, "Ambient Vibration Analysis with Subspace Methods and Automated Mode Selection: Case Studies", Journal of Structural Engineering, ASCE, 134 (6), pp.1016-1029 (2008).

DOI: 10.1061/(asce)0733-9445(2008)134:6(1016)

[11] Bernal, D. and Gunes, B. Flexibility-based Damage Characterization from Stochastic Realization Results. Journal of Engineering Mechanics, ASCE, 132 (6), pp.651-658 (2006).

DOI: 10.1061/(asce)0733-9399(2006)132:6(651)
