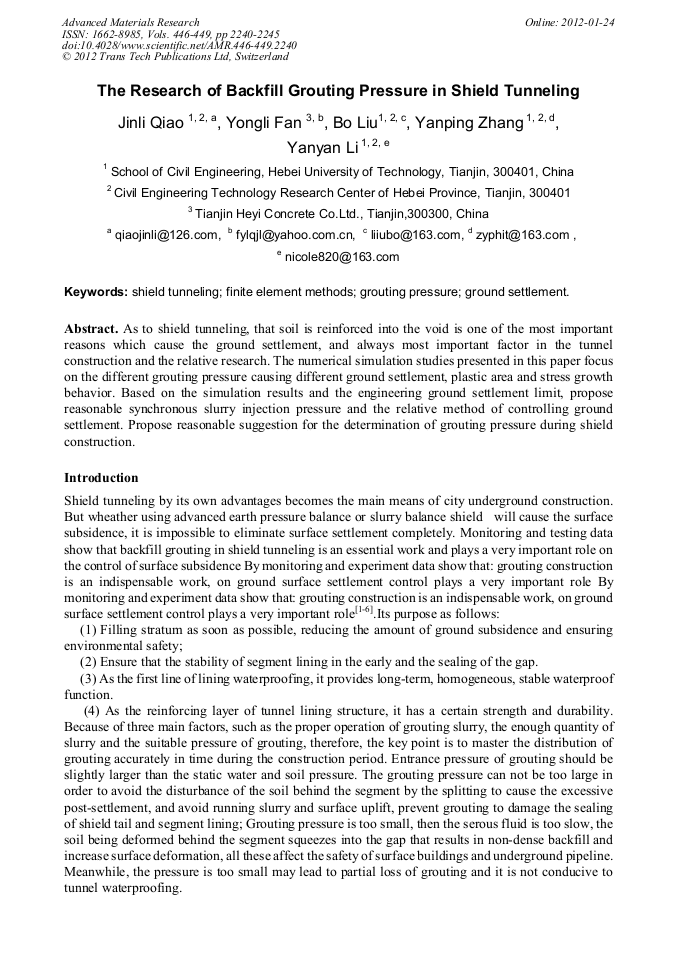

The Research of Backfill Grouting Pressure in Shield Tunneling

Abstract:

As to shield tunneling, that soil is reinforced into the void is one of the most important reasons which cause the ground settlement, and always most important factor in the tunnel construction and the relative research. The numerical simulation studies presented in this paper focus on the different grouting pressure causing different ground settlement, plastic area and stress growth behavior. Based on the simulation results and the engineering ground settlement limit, propose reasonable synchronous slurry injection pressure and the relative method of controlling ground settlement. Propose reasonable suggestion for the determination of grouting pressure during shield construction.

• Periodical: Advanced Materials Research (Volumes 446-449)
• Pages: 2240-2245
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.446-449.2240
• Online since: January 2012
• Authors: Jin Li Qiao, Yong Li Fan, Bo Liu, Yan Ping Zhang, Yan Yan Li
• Keywords: Finite Element Method (FEM), Ground Settlement, Grouting Pressure, Shield Tunneling

References

[1] G.E. Exadaktylosa, M.C. Stavropoulou.A Closed-form Elastic Solution for Stresses and Displacements around Tunnels [J]. International Journal of Rock Mechanics & Mining Sciences, 2002, (39): 905-916

DOI: 10.1016/s1365-1609(02)00079-5

[2] Xie Zitao, Jiang Yusheng; Liu Pin, Numerical Simulation Study on Surface Settlement and Surrounding Rock Deformation Caused by Backfill Grouting Pressure in Shield Tunneling. Tunnel Construction, 2007,27(4):12-15(in Chinese)

[3] Zhang Li-min; Li Da-yong, Numerical simulation for soil deformations due to shield tunneling, Rock and Soil Mechanics, 2004, (25):75-78(in Chinese)

[4] Han Yue-wang, Zhong Xiao-chun, Yu Xing-fu ,Experimental Research on the Backfill Grout Deformation and Grout Pressure Dissipation of Shield Tunnel, Chinese Journal of Underground Space and Engineering, 2007,3(6):1143-1175(in Chinese)

[5] Thomas Kasper, Gunther Meschke.On the influence of face pressure, grouting pressure and TBM design in soft ground tunneling. Tunnelling and Underground Space Technology . 2006, (21): 160–171

DOI: 10.1016/j.tust.2005.06.006

[6] Jiang Xinliang; Zhao Zhimin; Li Yuan ,Dynamic Simulation of the Effects of Shield Tunneling in Tianjin Subway Project on Neighboring Job Facilities, Journal of Tianjin University. 2006, 39(2): 188-193(in Chinese)

[7] Wei Gang, Prediction of Ground Deformation Induced by Shield Tunneling Constrution, Chinese Journal of Rock Mechanics and Engineering, 2009, 28(2):418-424(in Chinese)

[8] Qi Tao, Zhang Qinghe, Hu Xiangdong etc, A Practical Approach for Predicting Surface Settlements Induced by Shield Tunneling, Rock and Soil Mechanics, 2010,31(4):1247-1252(in Chinese)
