Analysis on Surface Settlement Caused by Soil Pressure in the Chamber of Shield-Tunneling

Abstract:

Soil Pressure in the chamber is one of the important construction parameters. It is very important to set up reasonable soil Pressure in the chamber for controlling the ground settlement, promoting the peed of drift and lowering the cost of drifting. Take some subway tunnel for example, and carry out the 3D finite element simulation. In order to investigate the influence on ground settlement from soil pressure in the chamber, take 15% of the progressive increase in earth pressure to simulate over-balance conditions and also take 15% of the progressive decrease in earth pressure to simulate under-balance conditions. The results indicated that while the soil pressure achieves equilibrium, the swell and the settlement are all small. While over-equilibrium, the swell increases, on the contrary, the settlement increases while under-equilibrium. So, a good control over the soil pressure is one of the most effective therapies for decreasing the ground settlement.

You might also be interested in these eBooks

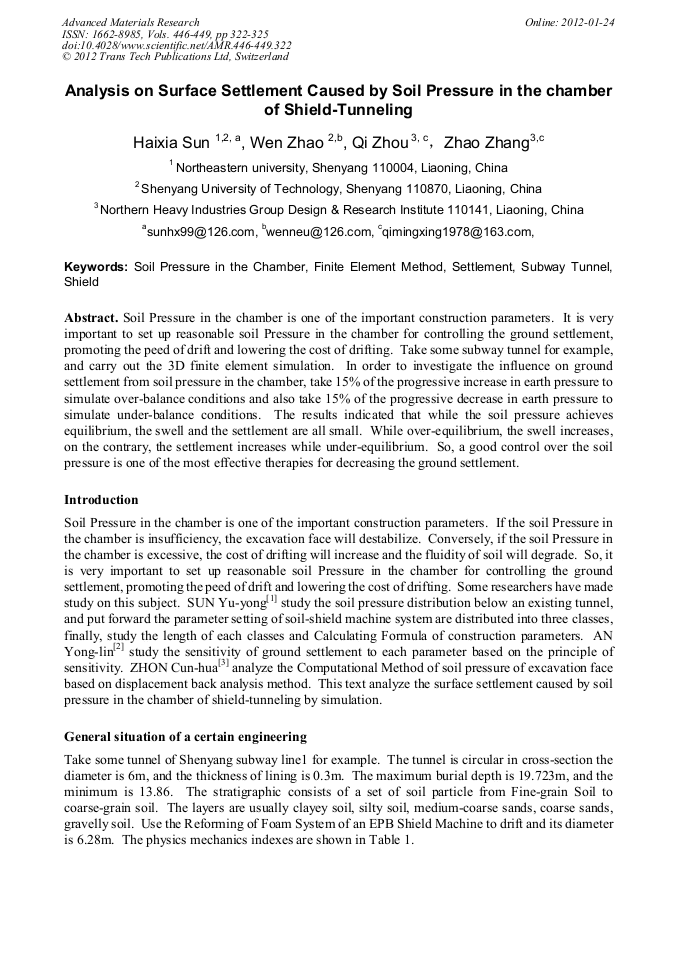

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 446-449)

Pages:

322-325

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.446-449.322

Citation:

Cite this paper

Online since:

January 2012

Authors:

Hai Xia Sun, Wen Zhao, Qi Zhou, Zhao Zhang

Keywords:

Finite Element Method (FEM), Settlement, Shield, Soil Pressure in the Chamber, Subway Tunnel

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Yuyong Sun, Shunhua Zhou, Ke Xiang and Chunhua Zou: China Railway Science, Vol31(2010),P.54, In Chinese

Google Scholar

[2] Yonglin An, Limin Peng and Dan Zhao: Journal of Engineering Geology, Vol15(2007), P. 689, In Chinese

Google Scholar

[3] Chunhua Zou, Shunhua Zhou, Zhengliang Xu and Yuyong Sun. China Railway Science, Vol31(2010) ,P.53, In Chinese

Google Scholar

[4] Pan Zeng: Finite Element Analysis and application. (Tsinghua University Press, Beijing 2004), In Chinese

Google Scholar

[5] FengxiangZhang, Deming Fu, Guoxiang Yang and Zaoci Xiang: EPB Shield Tunnel Construction Manual. (China Communications Press, Beijing 2005), In Chinese

Google Scholar

[6] Yiwen Zhu, Yuanqi Cai, Han Xu: ABAQUS and Geotechnical Engineering Analysis(China Book Press,Hongkong 2005), In Chinese

Google Scholar
