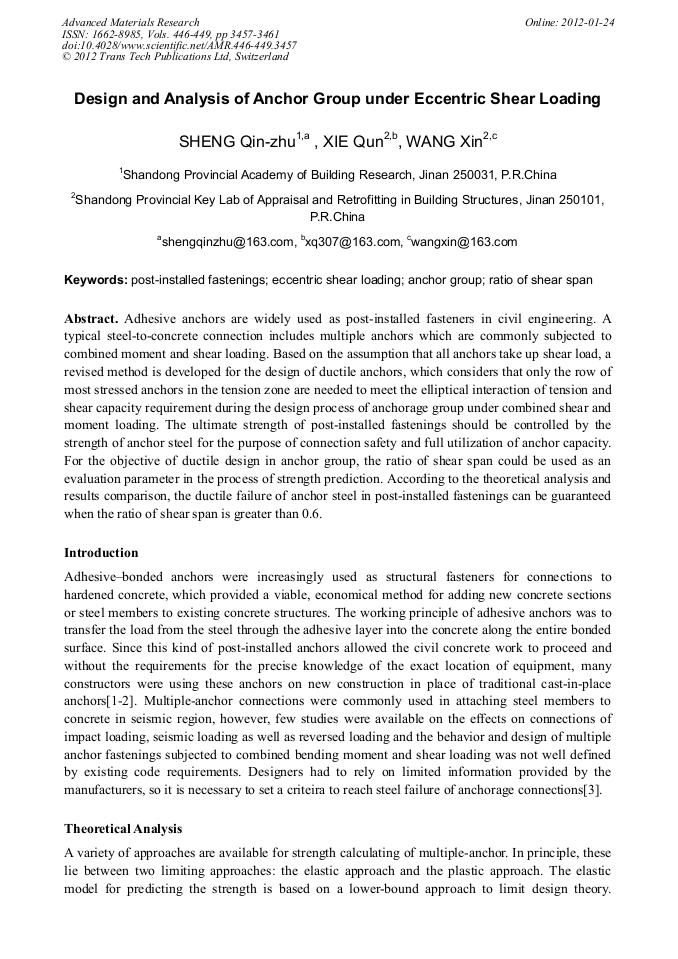

Design and Analysis of Anchor Group under Eccentric Shear Loading

Abstract:

Adhesive anchors are widely used as post-installed fasteners in civil engineering. A typical steel-to-concrete connection includes multiple anchors which are commonly subjected to combined moment and shear loading. Based on the assumption that all anchors take up shear load, a revised method is developed for the design of ductile anchors, which considers that only the row of most stressed anchors in the tension zone are needed to meet the elliptical interaction of tension and shear capacity requirement during the design process of anchorage group under combined shear and moment loading. The ultimate strength of post-installed fastenings should be controlled by the strength of anchor steel for the purpose of connection safety and full utilization of anchor capacity. For the objective of ductile design in anchor group, the ratio of shear span could be used as an evaluation parameter in the process of strength prediction. According to the theoretical analysis and results comparison, the ductile failure of anchor steel in post-installed fastenings can be guaranteed when the ratio of shear span is greater than 0.6.

• Periodical: Advanced Materials Research (Volumes 446-449)
• Pages: 3457-3461
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.446-449.3457
• Online since: January 2012
• Authors: Qin Zhu Sheng, Qun Xie, Xin Wang
• Keywords: Anchor Group, Eccentric Shear Loading, Post-Installed Fastenings, Ratio of Shear Span

References

[1] W Fuchs, R Eligehausen,Actual tendencies in structural fastening technology, Advances in construction materials. 98(2007) 23-30.

DOI: 10.1007/978-3-540-72448-3_3

[2] JGJ145-2004:Technical specification for post-installed fastenings in concrete structures,2005.

[3] Dieter Lotze, R E Klingner,H L Graves,Static behavior of anchors under combinations of tension and shear loading, ACI Structural Journal. 98(2001) 525-536.

DOI: 10.14359/10295

[4] ETAG No.001:Guideline for European technical approval of metal anchors for use in concrete annex C: design methods for anchorages, 2001.

[5] ACI 318:Building code requirements for reinforced concrete and commentary,American Concrete Institute, 2008.

[6] Ronald A.Cook, R Eligehausen, Behavior and design of adhesive bonded anchors,ACI Structural Journal.103(2006) 822-831.

[7] Matthew Stanton Hoehler, Behavior and testing of fastenings to concrete for use in seismic applications. PhD dissertation, University of Stuttgart, Stuttgart, Germany, 2006.

[8] R A Cook, R E Klingner, Ductile multiple-anchor steel-to-concrete connections, Journal of structural engineering.118(1992) 1645-1665.

DOI: 10.1061/(asce)0733-9445(1992)118:6(1645)

[9] R Eligehausen, Behavior and testing of anchors in simulated seismic cracks, ACI Structural Journal.105(2008) 348-357.

DOI: 10.14359/19794

[10] AC308:Acceptance criteria for post-installed adhesive anchors in concrete elements, ICC-ES Evaluation Committee, 2005.
