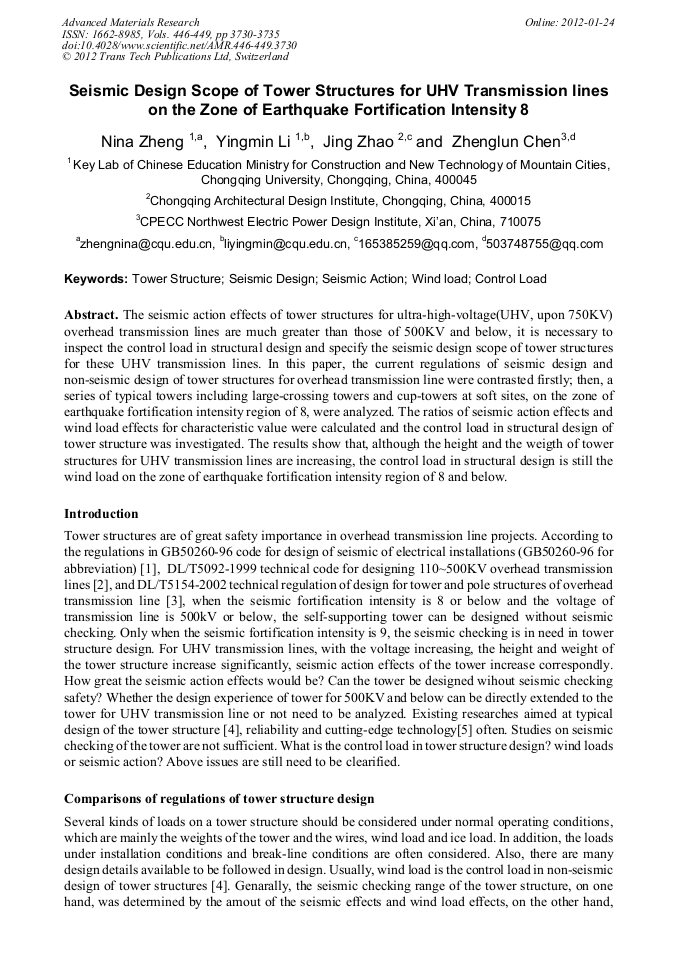

Seismic Design Scope of Tower Structures for UHV Transmission Lines on the Zone of Earthquake Fortification Intensity 8

Abstract:

The seismic action effects of tower structures for ultra-high-voltage(UHV, upon 750KV) overhead transmission lines are much greater than those of 500KV and below, it is necessary to inspect the control load in structural design and specify the seismic design scope of tower structures for these UHV transmission lines. In this paper, the current regulations of seismic design and non-seismic design of tower structures for overhead transmission line were contrasted firstly; then, a series of typical towers including large-crossing towers and cup-towers at soft sites, on the zone of earthquake fortification intensity region of 8, were analyzed. The ratios of seismic action effects and wind load effects for characteristic value were calculated and the control load in structural design of tower structure was investigated. The results show that, although the height and the weigth of tower structures for UHV transmission lines are increasing, the control load in structural design is still the wind load on the zone of earthquake fortification intensity region of 8 and below.

• Periodical: Advanced Materials Research (Volumes 446-449)
• Pages: 3730-3735
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.446-449.3730
• Online since: January 2012
• Authors: Ni Na Zheng, Ying Min Li, Jing Zhao, Zheng Lun Chen
• Keywords: Control Load, Seismic Action, Seismic Design, Tower Structure, Wind Load

References

[1] GB 50260-96 Code for design of seismic of electrical installations. Beijing: China Building Industry Press.(1996)

[2] DL/T 5092-1999 Technical code for designing 110~500KV overhead transmission lines. Beijing: China Building Industry Press.(1999)

[3] DL/T 5154-2002 Technical regulation of design for tower and pole structures of overhead transmission line. Beijing: China Building Industry Press.(2002)

[4] Ricai Guo, Zizhi Xu, Xilai Li. Typical design of transmission lines within voltage grades from 110 kV to 500 kV and its application. Power System Technology, 31(1):56-64 (2007). (in Chinese)

[5] Maohua Li, Zheng Li, Jihua Ren. Reliability analysis on tower structure for 500 kV transmission lines. Power System Technology, 32(23):91-94.(2008). (in Chinese)

[6] Analysis Handbook of Linear bar element and self-supporting tower. Northwest Electric Power Design Institute. (2005)

[7] Jing Zhao. Structure control inner force analysis of UHV transmission tower. Master Dissertation of Chongqing University. 43-45. (2007)
