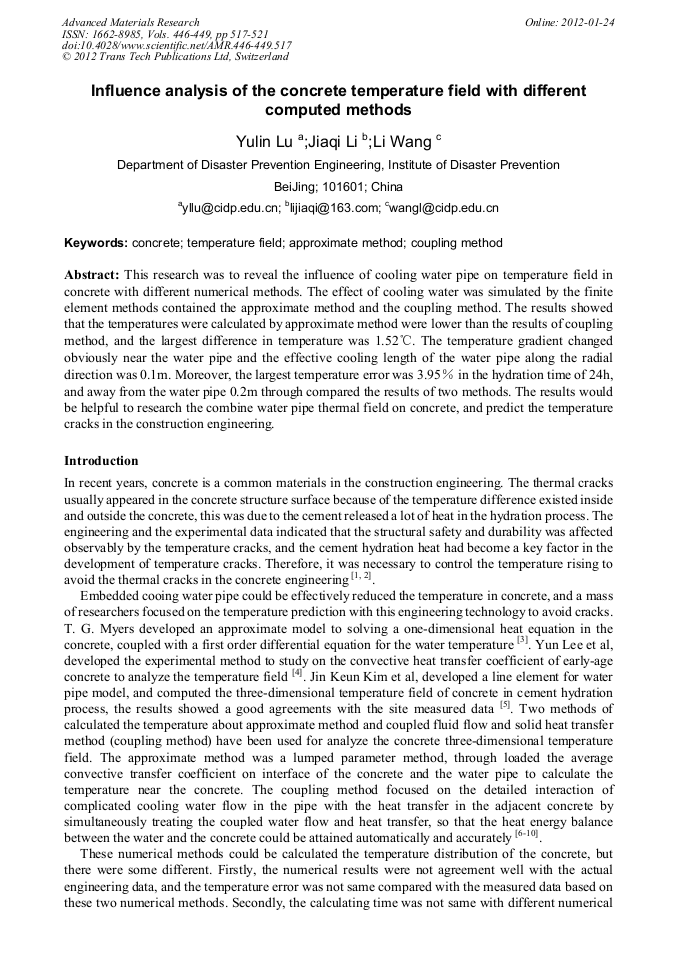

Influence Analysis of the Concrete Temperature Field with Different Computed Methods

Abstract:

This research was to reveal the influence of cooling water pipe on temperature field in concrete with different numerical methods. The effect of cooling water was simulated by the finite element methods contained the approximate method and the coupling method. The results showed that the temperatures were calculated by approximate method were lower than the results of coupling method, and the largest difference in temperature was 1.52°C. The temperature gradient changed obviously near the water pipe and the effective cooling length of the water pipe along the radial direction was 0.1m. Moreover, the largest temperature error was 3.95％ in the hydration time of 24h, and away from the water pipe 0.2m through compared the results of two methods. The results would be helpful to research the combine water pipe thermal field on concrete, and predict the temperature cracks in the construction engineering.

• Periodical: Advanced Materials Research (Volumes 446-449)
• Pages: 517-521
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.446-449.517
• Online since: January 2012
• Authors: Yu Lin Lu, Jia Qi Li, Li Wang
• Keywords: Approximate Method, Concrete, Coupling Method, Temperature Field

References

[1] Wang Jiachun, Yan Peiyu. Analyzing of cracking risk of early-age concrete structure. 2006, 14(2): 262-267(In Chinese)

[2] Kovler K L，David A，Stang H．Early age concrete--properties and performance．Cement and Concrete Composites,2004, 26(5): 413-415

DOI: 10.1016/j.cemconcomp.2004.04.001

[3] T. G. Myers, N. D. Fowkes, Y. Ballim. Modeling the Cooling of Concrete by Piped Water; Journal of Engineering Mechanics; 2009,135(12): 1375-1383

DOI: 10.1061/(asce)em.1943-7889.0000046

[4] Yun Lee, Myoung-Sung Choi, Seong-Tae Yi, et al. Experimental study on the convective heat transfer coefficient of early-age concrete. Cement & Concrete Composites, 2009,31:60-71

DOI: 10.1016/j.cemconcomp.2008.09.009

[5] Jin Keun Kim, Kook Han Kim, Joo Kyoung Yang. Thermal analysis of hydration heat in concrete structures with pipe-cooling system. Computers and Structures, 2001, 79:163-171

DOI: 10.1016/s0045-7949(00)00128-0

[6] Ballim Y. A numerical model and associated calorimeter for predicting temperature profiles in mass concrete . Cement and Concrete Composites, 2004, 26(6): 695―703.

DOI: 10.1016/s0958-9465(03)00093-3

[7] Yulin Lu, Tao Lu, Li Wang, Zhenyu Wang, Peipei Zhao. Numerical study on thermal field in concrete with cooling pipe based on the coupling method. Applied Mechanics and Materials;2011,94-96:388-392

DOI: 10.4028/www.scientific.net/amm.94-96.388

[8] Hans Hedlund, Patrik Groth. Air cooling of concrete by means of embedded cooling pipes- Part I: Laboratory tests of heat transfer coefficients . Materials and Structures, 1998,31:329-334

DOI: 10.1007/bf02480675

[9] Patrik Groth, Hans Hedlund. Air cooling of concrete by means of embedded cooling pipes- Part I1: Application in design. Materials and Structures. 1998,32:387-392

DOI: 10.1007/bf02480711

[10] C.-X. Huang. The three dimensional modelling of thermal cracks in concrete structure. Materials and Structures, 1999,32:673-678

DOI: 10.1007/bf02481705
