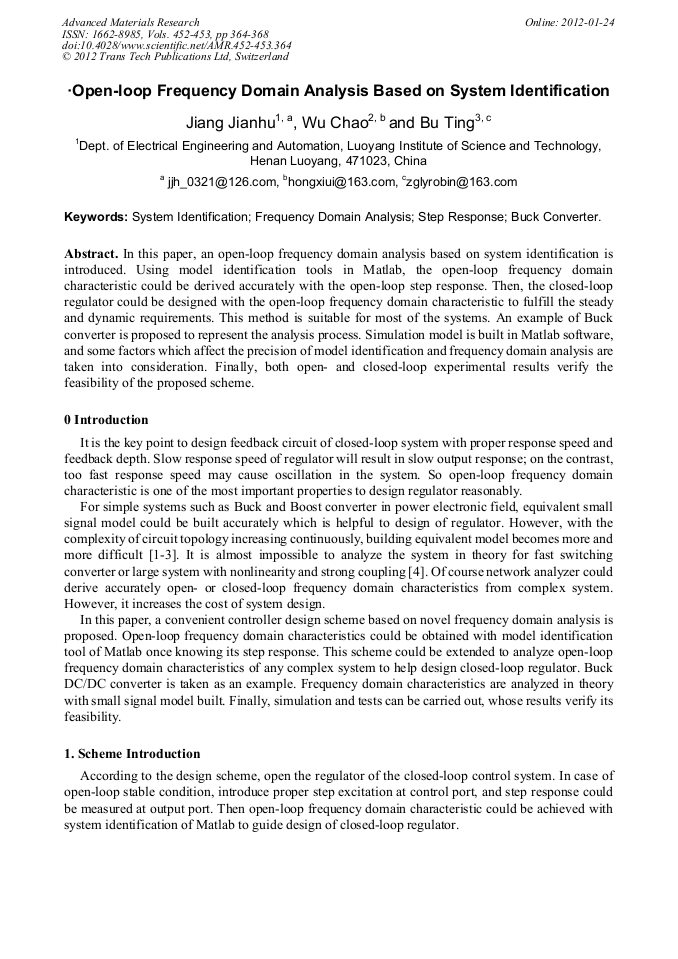

Open-Loop Frequency Domain Analysis Based on System Identification

Abstract:

In this paper, an open-loop frequency domain analysis based on system identification is introduced. Using model identification tools in Matlab, the open-loop frequency domain characteristic could be derived accurately with the open-loop step response. Then, the closed-loop regulator could be designed with the open-loop frequency domain characteristic to fulfill the steady and dynamic requirements. This method is suitable for most of the systems. An example of Buck converter is proposed to represent the analysis process. Simulation model is built in Matlab software, and some factors which affect the precision of model identification and frequency domain analysis are taken into consideration. Finally, both open- and closed-loop experimental results verify the feasibility of the proposed scheme.

• Periodical: Advanced Materials Research (Volumes 452-453)
• Pages: 364-368
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.452-453.364
• Online since: January 2012
• Authors: Jian Hu Jiang, Chao Wu, Ting Bu
• Keywords: Buck Converter, Frequency Domain Analysis, Step Response, System Identification

References

[1] Lennart. Ljung: System Identification: Theory for the User, Prentice Hall PTR(USA), (1999).

[2] Y. Xiong, C.S. Hu: Research on a New Three-phase Direct Type Multilevel Current Source Inverter Topology, Proceedings of the Chinese Society for Electrical Engineering, 24(1), (2004).

[3] F. Lu, W. Zhang: Simulation of Deformable Mirror's Frequency Character Analysis of Compensation Capabilities of Wavefront, Computer Simulation, 27(5), (2010).

[4] S.X. Huang, X.P. Fan: Design of High-speed ADC Frequency-domain Characteristics Test System, Computer Engineering, 35(9), (2009).

[5] H.B. Ma, Q.Y. Feng: Hybrid Modeling and Control Strategy for Boost DC-DC Switching Converters, Journal of the China Railway Society, (2010).

[6] Erickson R W. Fundamentals of Power Electronics. Library of Congress Cataloging in Publication, New York. (2001).

[7] L. Ye, S.Y. Li: PI Controller Auto-tuning for Plant-wide Systems Based on Frequency Domain Performance, Journal of Shanghai Jiaotong University, 41(11), (2007).

[8] Information on http: /www. mathworks. com.

[9] S.L. Liu, J. Liu: Energy Transmission Modes and Output Ripple Voltage of Boost Converters, Proceedings of the CSEE, 05, (2007).

[10] G.P. Du, B. Zhao: Matrix Coefficient Polynomial Description Model of DC-DC Converters Based on Switched Linear Systems, Proceedings of the CSEE, 26, (2007).
