Simultaneous Increases of Tensile Strength and Electrical Conductivity by Deep Cryogenic Treating in Cu-Fe and Cu-Cr In-Situ Composites

Abstract:

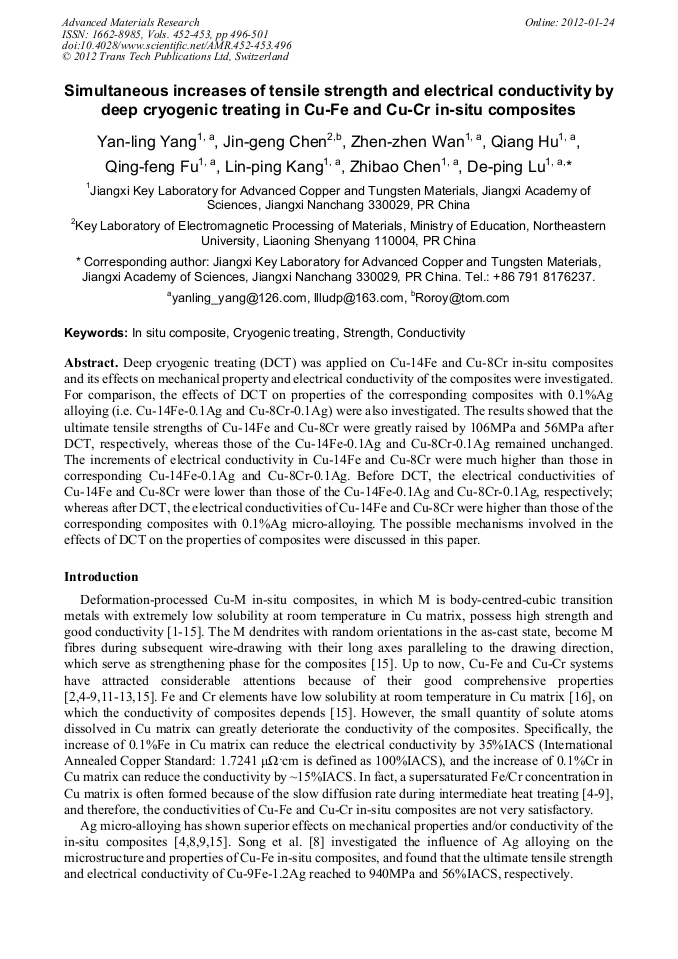

Deep cryogenic treating (DCT) was applied on Cu-14Fe and Cu-8Cr in-situ composites and its effects on mechanical property and electrical conductivity of the composites were investigated. For comparison, the effects of DCT on properties of the corresponding composites with 0.1%Ag alloying (i.e. Cu-14Fe-0.1Ag and Cu-8Cr-0.1Ag) were also investigated. The results showed that the ultimate tensile strengths of Cu-14Fe and Cu-8Cr were greatly raised by 106MPa and 56MPa after DCT, respectively, whereas those of the Cu-14Fe-0.1Ag and Cu-8Cr-0.1Ag remained unchanged. The increments of electrical conductivity in Cu-14Fe and Cu-8Cr were much higher than those in corresponding Cu-14Fe-0.1Ag and Cu-8Cr-0.1Ag. Before DCT, the electrical conductivities of Cu-14Fe and Cu-8Cr were lower than those of the Cu-14Fe-0.1Ag and Cu-8Cr-0.1Ag, respectively; whereas after DCT, the electrical conductivities of Cu-14Fe and Cu-8Cr were higher than those of the corresponding composites with 0.1%Ag micro-alloying. The possible mechanisms involved in the effects of DCT on the properties of composites were discussed in this paper

• Periodical: Advanced Materials Research (Volumes 452-453)
• Pages: 496-501
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.452-453.496
• Online since: January 2012
• Authors: Yan Ling Yang, Jin Geng Chen, Zhen Zhen Wan, Qiang Hu, Qing Feng Fu, Lin Ping Kang, Zhi Bao Chen, De Ping Lu
• Keywords: Conductivity, Cryogenic Treating, In Situ Composite, Strength

References

[1] Dj.M. Maric, P.F. Meier and S.K. Estreicher: Mater. Sci. Forum Vol. 83-87 (1992), p.119.

[1] D.W. Yao, L. Meng: Physica B 403 (2008) 3384-3388.

[2] L.M. Peng, X.M. Mao, K.D. Xu, W.J. Ding: J. Mater. Process. Technol. 166 (2005) 193-198.

[3] H.R.Z. Sandim, M.J.R. Sandim, H.H. Bernardi, J.F.C. Lins, D. Raabe: Scr. Mater. 51 (2008) 1099-1104.

DOI: 10.1016/j.scriptamat.2004.07.026

[4] J.S. Song, S.I. Hong, Y.G. Park: J. Alloys Compd. 388 (2005) 69-74.

[5] J.S. Song, S.I. Hong: J. Alloys Compd. 311 (2000) 265-269.

[6] D.P. Lu, J. Wang, W.J. Zeng, Y. liu, L. Lu, B.D. Sun: Mater. Sci. Eng. A 421 (2006) 254-259.

[7] D.P. Lu, J. Wang, L. Lu, S.F. Xie, Y. liu, B.D. Sun: J. Rare Earths 24 (2006) 602-606.

[8] J.S. Song, S.I. Hong, H.S. Kim: J. Mater. Process. Technol. 113 (2001) 610-616.

[9] H.Y. Gao, J. Wang, D. Shu, B.D. Sun: Scr. Mater. 54 (2006) 1931-(1935).

[10] W.A. Spitzig, A.R. Pelton, F.C. Laabs: Acta Metall. 35 (1987) 2427-2442.

[11] H.Y. Gao, J. Wang, D. Shu, B.D. Sun: J. Alloys Compd. 438 (2007) 268-273.

[12] E. Jeong, S. Han, M. Goto, S. Kim: Mater. Sci. Eng. A 520 (2009) 66-74.

[13] Y.S. Kim, J.S. Song, S.I. Hong: J. Mater. Process. Technol. 130-131 (2002) 278-282.

[14] A. Gaganov, J. Freudenberger, E. Botcharova, L. Schultz: Mater. Sci. Eng. A 437 (2006) 313-322.

[15] K.M. Liu, D.P. Lu, H.T. Zhou, A. Atrens, J. Zou, Y.L. Yang, S.M. Zeng: Mater. Sci. Eng. A 527 (2010) 4953-4958.

[16] L.J. Swartzendruber, et al.: Binary Alloy Phase Diagrams, 2nd Edition, ASM International, New York, (1990).

[17] H.S. Yang, J. Wang, B.L. Shen, H.H. Liu, S.J. Gao, S.J. Huang: Wear 261 (2006) 1150-1154.

[18] V. Firouzdor, E. Nejati, F. Khomamizadeh: Journal of Materials Processing Technology 206 (2008) 467-472.

[19] A. Akhbarizadeh, M.A. Golozar, A. Shafeie, M. Kholghy: Journal of Iron and Steel Research, International 16 (2009) 29-32.

DOI: 10.1016/s1006-706x(10)60023-4

[20] A. Akhbarizadeh, A. Shafyei, M.A. Golozar: Materials and Design 30 (2009) 3259-3264.

DOI: 10.1016/j.matdes.2008.11.016

[21] S.H. Li, Y.Z. Xie, X.C. Wu: Cryogenics 50 (2010) 89-92.

[22] H.Y. Gao, J. Wang, D. Shu, B.D. Sun: Scr. Mater. 53 (2005) 1105-1109.

[23] Z.S. Wu, P. Shan, J.R. Lian, S.S. Hu: Materials and Design 24 (2003) 687-692.

[24] D. Mattissen, D. Raabe, F. Heringhaus: Acta Mater. 47 (1999): 1627-1634.
