Synthesis and Characterization of Mg-Al Layered Double Hydroxide

Wan Zhong Yin; Qi Tan; Lei Liu; Xiao Li Li

doi:10.4028/www.scientific.net/AMR.454.101

Paper Titles

Study on CO₂ Adsorption of Sepoilite Modified by Mixture of Ethanolamine and N, N-Dimethyl Ethanolamine
p.82

Study on Technological Mineralogy of Slag Film of Medium Carbon Steel
p.89

Study on the Flame Retardant Property of Magnesium Hydroxide Whiskers/PE Composites
p.93

Study on the Transformation of (α+β) Phase to β Phase in Deformed Ti-6Al-4V Alloy during the Heat Treatment
p.97

Synthesis and Characterization of Mg-Al Layered Double Hydroxide
p.101

Synthesis and Electrochemical Performance of LiV₃O₈/MWCNTs Cathode Material for Lithium-Ion Batteries
p.105

Synthesis of Fine Co/ WC Composite and Application to Supersonic Plasma Spraying
p.110

Synthesis of Si-O-C Nanoballs by CVD of Polydimethylsiloxane
p.114

The Effect of Gallium on the Microstructure of Superalloy K444
p.118

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 454Synthesis and Characterization of Mg-Al Layered...

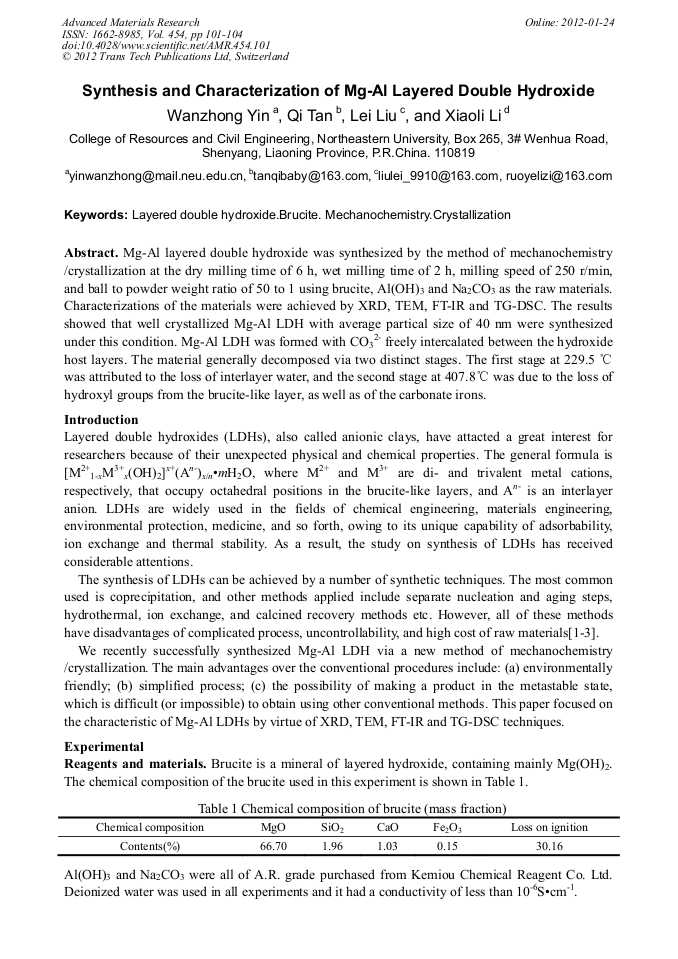

Synthesis and Characterization of Mg-Al Layered Double Hydroxide

Abstract:

Mg-Al layered double hydroxide was synthesized by the method of mechanochemistry /crystallization at the dry milling time of 6 h, wet milling time of 2 h, milling speed of 250 r/min, and ball to powder weight ratio of 50 to 1 using brucite, Al(OH)₃ and Na₂CO₃ as the raw materials. Characterizations of the materials were achieved by XRD, TEM, FT-IR and TG-DSC. The results showed that well crystallized Mg-Al LDH with average partical size of 40 nm were synthesized under this condition. Mg-Al LDH was formed with CO₃^2- freely intercalated between the hydroxide host layers. The material generally decomposed via two distinct stages. The first stage at 229.5 °C was attributed to the loss of interlayer water, and the second stage at 407.8°C was due to the loss of hydroxyl groups from the brucite-like layer, as well as of the carbonate irons.
