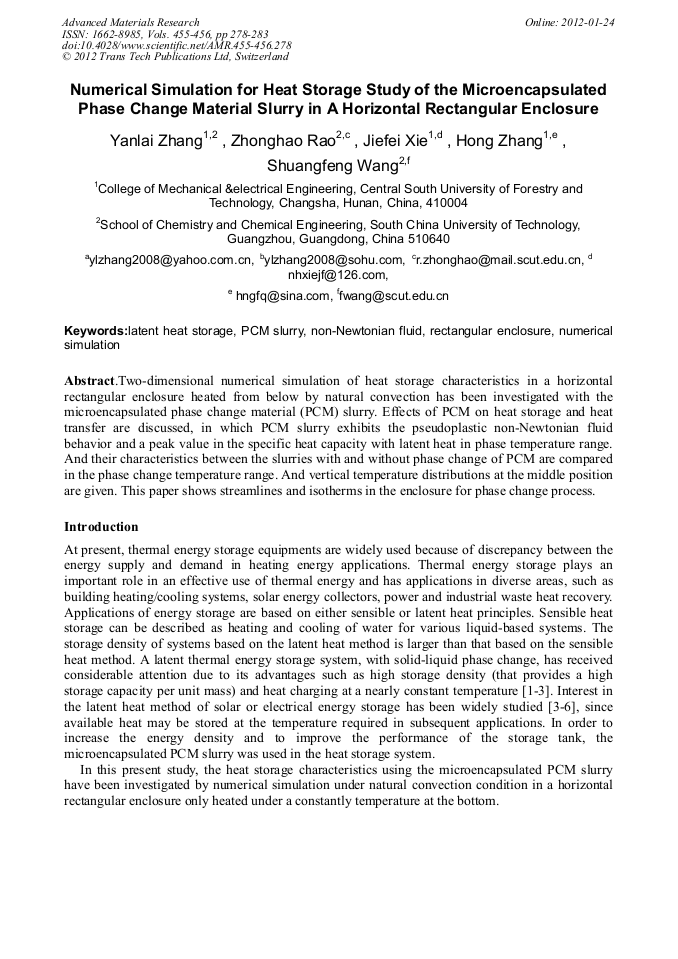

Numerical Simulation for Heat Storage Study of the Microencapsulated Phase Change Material Slurry in a Horizontal Rectangular Enclosure

Abstract:

Two-dimensional numerical simulation of heat storage characteristics in a horizontal rectangular enclosure heated from below by natural convection has been investigated with the microencapsulated phase change material (PCM) slurry. Effects of PCM on heat storage and heat transfer are discussed, in which PCM slurry exhibits the pseudoplastic non-Newtonian fluid behavior and a peak value in the specific heat capacity with latent heat in phase temperature range. And their characteristics between the slurries with and without phase change of PCM are compared in the phase change temperature range. And vertical temperature distributions at the middle position are given. This paper shows streamlines and isotherms in the enclosure for phase change process.

• Periodical: Advanced Materials Research (Volumes 455-456)
• Pages: 278-283
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.455-456.278
• Online since: January 2012
• Authors: Yan Lai Zhang, Zhong Hao Rao, Jie Fei Xie, Hong Zhang, Shuang Feng Wang
• Keywords: Latent Heat Storage, Non-Newtonian Fluid, Numerical Simulation, PCM Slurry, Rectangular Enclosure

References

[1] Uroš Stritih, An experimental study of enhanced heat transfer in rectangular PCM thermal storage, International Journal of Heat and Mass Transfer, vol. 47, pp.2841-2847, (2004).

DOI: 10.1016/j.ijheatmasstransfer.2004.02.001

[2] Anica Trp, An experimental and numerical investigation of heat transfer during technical grade paraffin melting and solidification in a shell-and-tube latent thermal energy storage unit, Solar Energy, Vol. 79, pp.648-660, (2005).

DOI: 10.1016/j.solener.2005.03.006

[3] Jinjia Wei, Yasuo Kawaguchi, Satoshi Hirano, Hiromi Takeuchi, Study on a PCM heat storage system for rapid heat supply, Applied Thermal Engineering, Vol. 25, pp.2903-2920, (2005).

DOI: 10.1016/j.applthermaleng.2005.02.014

[4] Hisham Ettouney, Imad Alatiqi, Mohammad Al-Sahali, Khalida Al-Hajirie, Heat transfer enhancement in energy storage in spherical capsules filled with paraffin wax and metal beads, Energy Conversion and Management, Vol. 47, pp.211-228, (2006).

DOI: 10.1016/j.enconman.2005.04.003

[5] Zhengguo Zhang, Xiaoming Fang, Study on paraffin/expanded graphite composite phase change thermal energy storage material, Energy Conversion and Management, Vol. 47, pp.303-310, (2006).

DOI: 10.1016/j.enconman.2005.03.004

[6] Yuichi Hamada, Jun Fukai, Latent heat thermal energy storage tanks for space heating of buildings: Comparison between calculations and experiments, Energy Conversion and Management, Vol. 46, pp.3221-3235, (2005).

DOI: 10.1016/j.enconman.2005.03.009

[7] Hideo Inaba, Yanlai Zhang and Akihiko Horibe, Transient heat storage characteristics on horizontal rectangular enclosures filled with fluidity slurry of micro-encapsulated phase-change-material dispersed in water, Journal of Thermal Science and Technology, Vol. 1 (2006).

DOI: 10.1299/jtst.1.66

[8] Hideo Inaba, Yanlai Zhang, Akihiko Horibe, Naoto Haruki, Numerical Simulation of Natural Convection of Latent Heat Phase-change-material Microcapsulate Slurry Packed in a Horizontal Rectangular Enclosure Heated from Below and Cooled from Above, Heat and mass transfer, Vol. 43, No. 5 / March, 2007, pp.459-470.

DOI: 10.1007/s00231-006-0121-y
