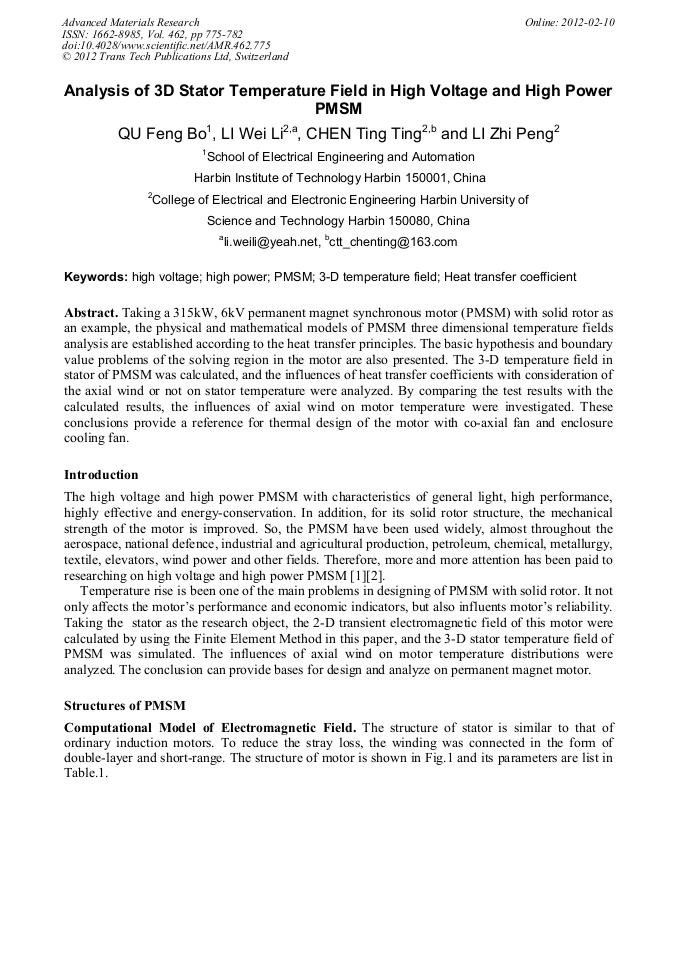

Analysis of 3D Stator Temperature Field in High Voltage and High Power PMSM

Abstract:

Taking a 315kW, 6kV permanent magnet synchronous motor (PMSM) with solid rotor as an example, the physical and mathematical models of PMSM three dimensional temperature fields analysis are established according to the heat transfer principles. The basic hypothesis and boundary value problems of the solving region in the motor are also presented. The 3-D temperature field in stator of PMSM was calculated, and the influences of heat transfer coefficients with consideration of the axial wind or not on stator temperature were analyzed. By comparing the test results with the calculated results, the influences of axial wind on motor temperature were investigated. These conclusions provide a reference for thermal design of the motor with co-axial fan and enclosure cooling fan.

• Periodical: Advanced Materials Research (Volume 462)
• Pages: 775-782
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.462.775
• Online since: February 2012
• Authors: Feng Bo Qu, Wei Li Li, Ting Ting Chen, Zhi Peng Li
• Keywords: 3-D Temperature Field, Heat Transfer Coefficient (HTC), High Power, High Voltage (HV), PMSM

References

[1] LI Yong-xiang, LIN Xin, XU Jian-yuan. Design of a Novel Permanent Magnet Brushless DC Motor-Driven Operating Mechanism for High-Voltage Circuit Breaker and Its Dynamic Simulation[J]. Power System Technology, 2010, 34(1): 185-189.

DOI: 10.1109/ical.2009.5262939

[2] QU Feng-bo, LI Zhi-peng, LI Wei-li. Analysis of starting performance for rotor structures of high-voltage permanent magnet synchronous motors[J]. Electric Machines and Control, 2010, 14(9): 93-99.

[3] TANG Ren-yuan. Modern Permanent Magnet Machines—Theory and Design[M]. Beijing: Machinery Industry Press, 1997: 61-92.

[4] Zhang XC, Cheng SK, Li WL. Development of Line-start PMSM with Solid Rotor for Electric Vehicles[J]. IEEE　Vehicle Power and Propulsion Conference, 2008: 1-5.

DOI: 10.1109/vppc.2008.4677643

[5] Li WL, Xie Y, Shen JF, et al. Finite-Element Analysis of Field Distribution and Characteristic Performance of Squirrel-Cage Induction Motor with Broken Bars. IEEE Transactions on magnetics. 2007, 43(4): 1537-1540.

DOI: 10.1109/tmag.2006.892086

[6] WANG Xin, LI Wei-li, CHENG Shu-kang, et al. Starting performance of permanent magnet synchronous motor with a solid rotor[J]. Electric Machines and Control, 2007, 11(4): 349-353, 358.

[7] WANG Yan-wu, YANG Li, SUN Feng-rui. Simulation and Analysis of 3D Temperature Field for Stator Winding Short-circuit in Asynchronous Motor[J]. Proceedings of the CSEE, 2009, 29(24): 84-90.

[8] ZHOU Feng, GUAN Chun-wei, LI Wei-li, et al. Influence of Distributions of Circulation Losses and Iron Losses on Stator Temperature Field and Heat Transfer Coefficient's Calculation of Outer Surface of Insulation[J]. Proceedings of the CSEE, 2009, 29(21): 124-130.

[9] LUAN Ru, FU De-ping, TANG Long-yao. Study on 3D Temperature Distribution in New Evaporative Cooling Asynchronous Generator[J]. Proceedings of the CSEE, 2004, 24(8): 205-209.

[10] LI Wei-li, DING Shu-ye, JIN Hui-yong. Numerical Calculation of Large Synchronous Generator Stator Temperature Fields Based on Coupled Fields[J]. Proceedings of the CSEE, 2005, 25(13): 129-134.

[11] WEI Yong-tian, MENG Da-wei, WEN Jia-bin. Electric Heat Exchange[M]. Beijing: Machinery Industry Press, 1998: 251-273.

[12] DING Shun-nian. Heating and Cooling of Large Motor[M]. Beijing: Science and Technology Press, 1992: 136-149.

[13] LI Wei-li, XIANG Huan. Rotor Temperature Field Calculation of Turbogenerator with Radial andTangential Air-cooling System[J]. Large Electric Machine and Hydraulic Turbine, 1998, 2: 15-18.

[14] ZHANG Xiao-chen, LI Wei-li, CHENG Shu-kang, et al. Thermal Analysis of solid rotor in PMSM used for EV[J]. IEEE　Vehicle Power and Propulsion Conference, 2009: 1637-1642.

DOI: 10.1109/vppc.2009.5289644
