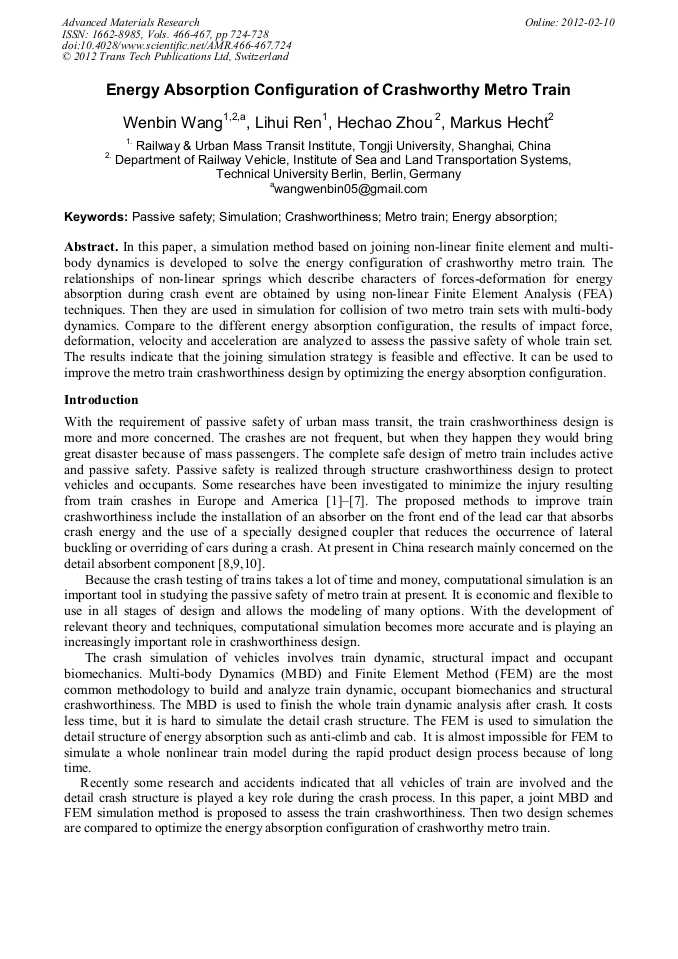

Energy Absorption Configuration of Crashworthy Metro Train

Abstract:

In this paper, a simulation method based on joining non-linear finite element and multi-body dynamics is developed to solve the energy configuration of crashworthy metro train. The relationships of non-linear springs which describe characters of forces-deformation for energy absorption during crash event are obtained by using non-linear Finite Element Analysis (FEA) techniques. Then they are used in simulation for collision of two metro train sets with multi-body dynamics. Compare to the different energy absorption configuration, the results of impact force, deformation, velocity and acceleration are analyzed to assess the passive safety of whole train set. The results indicate that the joining simulation strategy is feasible and effective. It can be used to improve the metro train crashworthiness design by optimizing the energy absorption configuration.

• Periodical: Advanced Materials Research (Volumes 466-467)
• Pages: 724-728
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.466-467.724
• Online since: February 2012
• Authors: Wen Bin Wang, Li Hui Ren, He Chao Zhou, Markus Hecht
• Keywords: Crashworthiness, Energy Absorption, Metro Train, Passive Safety, Simulation

References

[1] Lewis J H, "Structural crashworthiness-possibilities and practicalities," IMechE ,Part F, vol. 216, 2002, pp.117-121

[2] Hyung-Suk Han, Jeong-Seo Koo, "Simulation of Train Crashes in Three Dimensions", Vehicle System Dynamics, vol. 40, 2003, pp.435-450

DOI: 10.1076/vesd.40.6.435.17906

[3] Sutton A, "The development of rail vehicle crashworthiness," IMechE ,Part F, vol. 216, 2002, pp.97-108

[4] Lu G, "Energy absorption requirement for crashworthy vehicles," IMechE ,Part F, vol. 216, 2002, pp.31-39

[5] Tyrell David, "US rail equipment crashworthiness standards," IMechE ,Part F, vol. 216, 2002, pp.123-130

[6] Tyrell David, "Rail passenger equipment accidents and the evaluation of crashworthiness strategies," IMechE,Part F, vol. 216, 2002, pp.131-147

DOI: 10.1243/09544090260082371

[7] Jacobsen M Karina, Collision dynamics modeling of crash energy management passenger rail equipment. Massachusetts: Tufts University, (2008)

[8] WANG Wenbin, The crashworthiness design of railway vehicle and passive safety of occupant, Shanghai: Tongji University, 2006(In Chinese)

[9] WANG Wenbin, ZHAO Honglun, "Lightweight design of crashworthy carbody structure for high-speed passenger train based on optimization," Journal of Tongji University (Natural Science), Vol. 32, Nov.2004, pp.1499-1503(In Chinese)

[10] LIU JInzhao, FANG Jiazhi, WANG Chengguo,"Simulation research on finite deformation crashworthiness of railway passenger car," China Railway Science, vol. 25, Jun.2004, pp.1-8(In Chinese)

[11] LU Guandong, "The bumping resistance design for rolling stock," Rolling Stock, vol.45, Oct.2007, pp.1-5(In Chinese)
