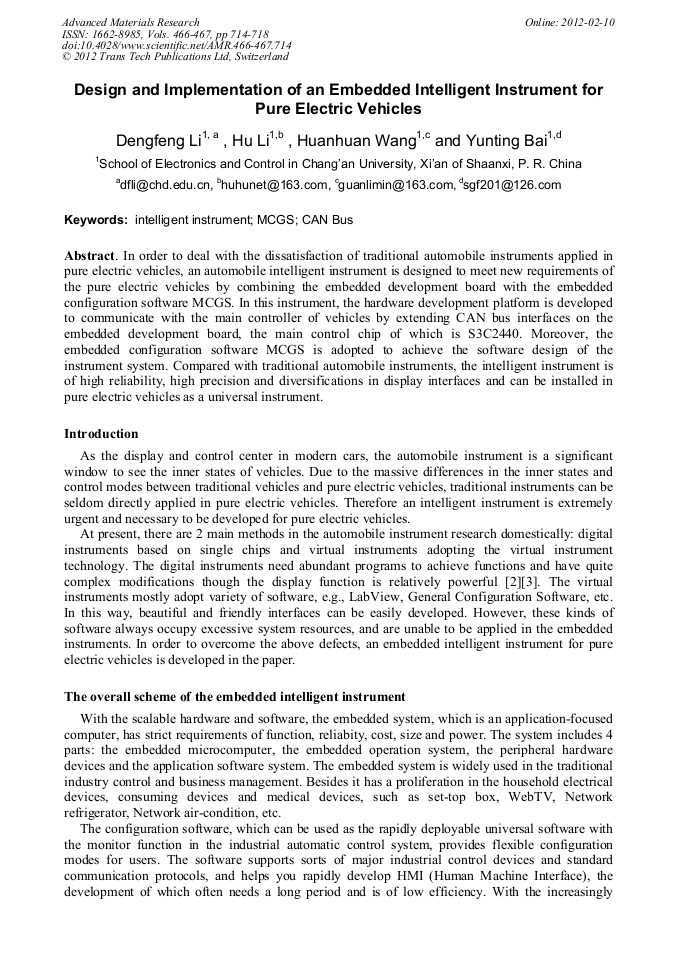

Design and Implementation of an Embedded Intelligent Instrument for Pure Electric Vehicles

Abstract:

In order to deal with the dissatisfaction of traditional automobile instruments applied in pure electric vehicles, an automobile intelligent instrument is designed to meet new requirements of the pure electric vehicles by combining the embedded development board with the embedded configuration software MCGS. In this instrument, the hardware development platform is developed to communicate with the main controller of vehicles by extending CAN bus interfaces on the embedded development board, the main control chip of which is S3C2440. Moreover, the embedded configuration software MCGS is adopted to achieve the software design of the instrument system. Compared with traditional automobile instruments, the intelligent instrument is of high reliability, high precision and diversifications in display interfaces and can be installed in pure electric vehicles as a universal instrument.

• Periodical: Advanced Materials Research (Volumes 466-467)
• Pages: 714-718
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.466-467.714
• Online since: February 2012
• Authors: Deng Feng Li, Hu Li, Huan Huan Wang, Yun Ting Bai
• Keywords: CAN Bus, Intelligent Instrument, MCGS

References

[1] JI Xiaoli. Actuality and Development Trend of the automobile instrument technology[J]. Automobile&parts, 2000-19 17-18.

[2] LEI Yue. Design of the Intelligent Digital Automobile Instrument System[J]. Electronic test, 2007, 7: 25-27.

[3] HE Bin, SONG Junhua, TANG Hangbo, YANG Lin LCD Instrument System of Hybrid Behicles Based on CAN Bus [J]. Computer Engineer and Application, 2007, 43(12): 218-220.

[4] HUANG Miaohua, XU Baosong, LI Xiufen. Research and Development of the Information System of the Virtual Digital for the Automobile Instrument[J]. Automobile Science & Technology, 2006, 9(5): 15-18.

[5] JI Changwei, DU Zhenwei, GAO Yu, WU Qiang. Development of the Intelligent Digital Automobile Instrument[J]. Journal of Beijing University of Technology, 2006, 4, 32(4): 352-356.

[6] WU Kuanming. CAN 2. 0 B A New Controller— SJA1000[J]. Industrial Control Computer，1999(1): 55-58.

[7] LIANG Weidong, GUO Jie. MCGS Design and Application Of the Configuration Software [J]. Guangdong Automation & Information Engineering, 2005, (1): 33-35.

[8] MCGS Senior Development Guide [M]. Beijing：Kunlun Tongtai Institute of Computer Technology，(1999).
