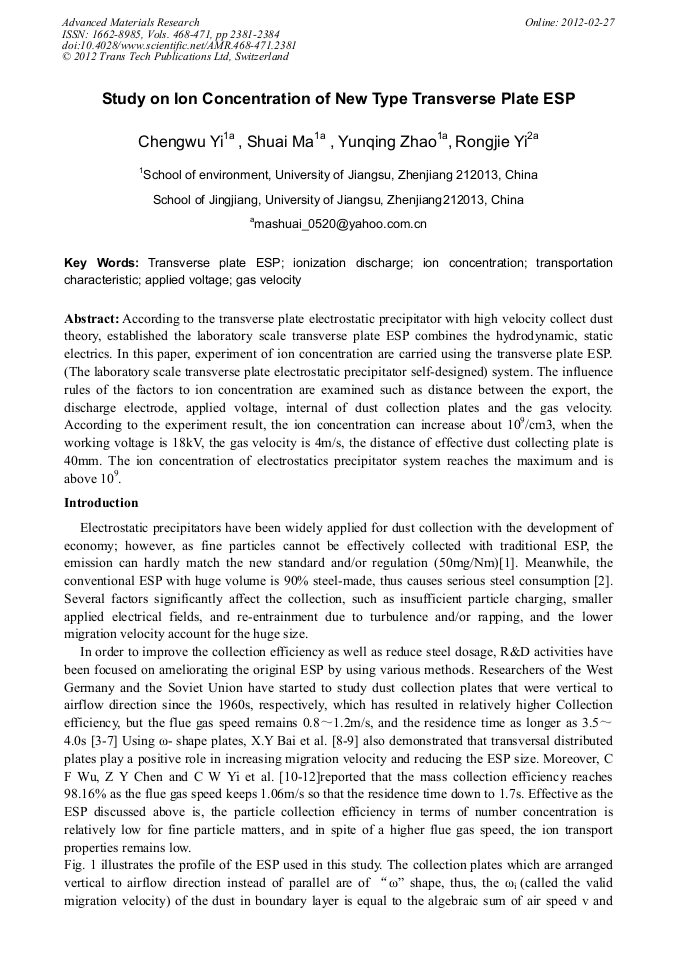

Study on Ion Concentration of New Type Transverse Plate ESP

Abstract:

According to the transverse plate electrostatic precipitator with high velocity collect dust theory, established the laboratory scale transverse plate ESP combines the hydrodynamic, static electrics. In this paper, experiment of ion concentration are carried using the transverse plate ESP. (The laboratory scale transverse plate electrostatic precipitator self-designed) system. The influence rules of the factors to ion concentration are examined such as distance between the export, the discharge electrode, applied voltage, internal of dust collection plates and the gas velocity. According to the experiment result, the ion concentration can increase about 109/cm3, when the working voltage is 18kV, the gas velocity is 4m/s, the distance of effective dust collecting plate is 40mm. The ion concentration of electrostatics precipitator system reaches the maximum and is above 109.

• Periodical: Advanced Materials Research (Volumes 468-471)
• Pages: 2381-2384
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.468-471.2381
• Online since: February 2012
• Authors: Cheng Wu Yi, Shuai Ma, Yun Qing Zhao, Rong Jie Yi
• Keywords: Applied Voltage, Gas Velocity, Ion Concentration, Ionization Discharge, Transportation Characteristic, Transverse Plate ESP

References

[1] Anatol Jaworek, Andrzej Krupa, Tadeusz Czech. Modern electrostatic devices and methods for exhaust gas cleaning: A brief review[J]. Journal of electrostatics. 65(7) (2007), pp.133-155.

DOI: 10.1016/j.elstat.2006.07.012

[2] Committee of Electrical Dust Removal China Development Report on Electrical Dust Removal Industry in 2008[J]. CHINA ENVIRONMENT PROTECTION INDUSTRY. 7(2009), pp.5-7.

[3] J. Li, W. Cai. Study of the cut diameter of solid-gas separation in cyclone with electrostatic excitation [J]. Journal of Electrostatics. 60: (2004), pp.15-23.

DOI: 10.1016/j.elstat.2003.05.001

[4] Masuda et al. Electrostatic Precipitation, In: Handbook of Electrostatic Processes [M], Marcel Dekker. (1997), 441-480.

[5] Maria Jedrusik, Juliusz B. Gajewski, Arkadiusz J, Swierczok. Effect of the particle diameter and corona electrode geometry on the particle migration velocity in electrostatic precipitators[J]. Journal of electrostatics. 51(2001), pp.245-251.

DOI: 10.1016/s0304-3886(01)00047-x

[6] J.H. Ji, G.N. Bae, et al. Effect of particle loading on the collection performance of an electret cabin air filter for submicron aerosols, Journal of Aerosol Science. 34(2003), pp.1493-1504.

DOI: 10.1016/s0021-8502(03)00103-4

[7] Y Zhuang, Yong Jin Kim1, Tai G, yu Lee, Pratim Biswas. Experimental and theoretical studies of ultra-fine particle behavior in electrostatic precipitators[J]. Journal of electrostatics. 1999, 48(6)(1999), pp.245-260.

DOI: 10.1016/s0304-3886(99)00072-8

[8] B Mindi, S Jian, B Xiyao et al. Experimental study on transport rate of corona ionosphere [J]. Transactions of Beijing Institute of technology. 2005, 28(9)(2005), pp.28-31.

[9] CH Zuyun, et al. Dust Control Characteristics of a Electrostatic Precipitator with Longitudina Transverse Collecting Plates [J]. Journal of Safety and Environment. 26 (5)(2003), pp.35-37.

[10] Y Chengwu, W Chundu, CH Zhigang, B Mindi et al. Experimental Study on Combined Type ESP with High Gas Velocity [J], High Voltage Engineering. 33(2)(2007), pp.120-123.

[11] YOSHIO H Y. Analysis of the behaver of ions produced by pulsed corona discharge [J]. IEEE Transaction on Industry Application. 33(2)(1999), pp.245-250.

[12] IGOR ALEXFF. An enhanced ionizer [J]. IEEE Transaction on Plasma Science. 27(1)(1999), pp.126-131.
